Are you searching for firmware files for your CV920-E42 universal TV motherboard? You’re in the right spot! This post gives you all the firmware files you need, plus a full guide on how to update your TV. Whether you’re a technician or just someone who likes fixing things at home, we’ve got you covered.

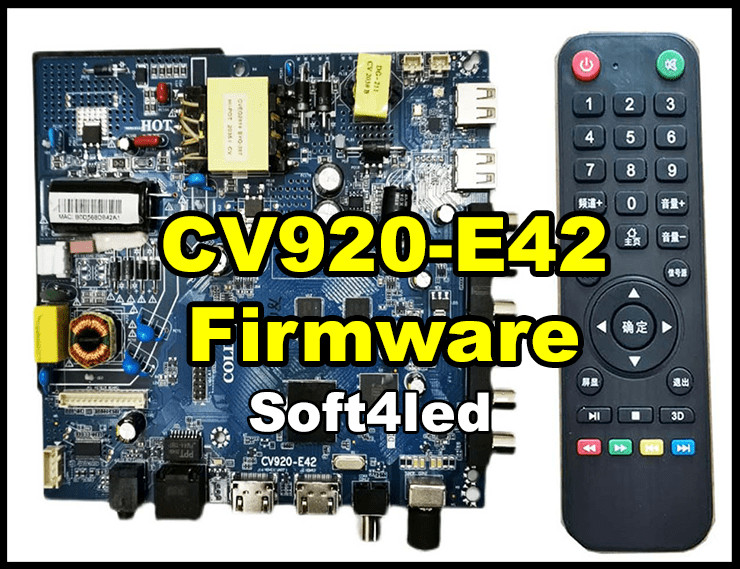

About the CV920-E42 Universal TV Motherboard
The CV920-E42 is an Android network driver board made for universal TV use. It handles full HD resolution at 1920×1080, so your picture looks sharp and clear. It comes with a strong WiFi system, letting you connect to the internet without wires. This board runs on Android 5.1 or 9.0 and powers smart TV features like streaming shows or browsing online.
It’s packed with ports: A/V, USB, multiple HDMI, VGA, and even a LAN port for wired internet. There’s also a spot for earphones. The CV920-E42 is a combo board with a built-in digital TV tuner, meaning it can pick up both analog and digital signals. It works with screen sizes from 32 inches to 55 inches, making it a great fit for many TVs.
Key Specifications
- Brand: China Universal Android WIFI Board
- Main Board: CV920-E42
- OS: Android 5.1 or 9.0
- CPU: Cortex-A53 Dual Core 1.5GHz
- GPU: Mali-450MP Quad Core 750MHz
- RAM: 512MB, 768MB, or 1GB
- ROM: 4GB or 8GB
- Resolution: Up to 1920×1080
- Panel Voltage: 12V
- Tuner: ATV & DVBT
- Firmware: Factory Update, USB Updateable
- Back Light: 25W (30-42V 600MA) or 45W (45-70V 540MA)
- Supported Screen Sizes: 32″ to 55″
What Is Firmware and Why Does It Matter?
Firmware is the software that runs your TV motherboard. It tells the hardware what to do and keeps everything working together. Updating firmware can add new features, make your TV run better, fix problems, or help it work with different screens or devices. Keeping it current is a smart way to get the most out of your CV920-E42.
Firmware Files You Can Download
We’re providing the CV920-E42-1920×1080-1G-8G firmware file in this post. This version is for TVs with a 1920×1080 resolution, 1GB of RAM, and 8GB of ROM. It’s the most common setup for this board. If your TV has different specs, reach out to us for help finding the right file.
How to Download the Firmware
Click the link below to get the CV920-E42-1920×1080-1G-8G firmware file. Before you start, double-check that your TV matches these specs: 1920×1080 resolution, 1GB RAM, and 8GB ROM.
| Filename | Download |
|---|---|
| CV920-E42-1920×1080-1G-8G | Download |
Need a different version? Contact us, and we’ll point you to the right one.
How to Update Your CV920-E42 Firmware
Updating your TV’s firmware is simple if you follow these steps. Take your time to avoid mistakes.
- Get a USB Drive Ready: Use a USB drive and format it to FAT32. Make sure it’s empty.
- Download the File: Save the firmware file to the USB drive. Put it in the main directory, not inside a folder.
- Turn Off the TV: Switch off your TV and unplug it from the wall.
- Plug in the USB: Insert the USB drive into a USB port on the TV motherboard.
- Turn On the TV: Plug it back in and power it on. The update should start on its own.
- Wait It Out: Don’t turn off the TV or pull out the USB while it’s updating. It might take a few minutes.
- Restart the TV: The TV should restart by itself when done. If it doesn’t, turn it off and on manually.
- Check the Update: Go to the TV settings and look at the firmware version to confirm it worked.
Fixing Common Firmware Update Problems
Sometimes things don’t go perfectly. Here’s what to do if you hit a snag:
- Update Won’t Start: Check that the file is in the USB’s main directory. Try a different USB drive if it still fails.
- TV Stops During Update: Wait 10 minutes. If it’s still stuck, turn it off, remove the USB, and start over.
- Picture Looks Wrong After Update: You might have the wrong firmware. Download the one that matches your TV’s resolution.
- No Sound or Picture: Look at the panel connections. Make sure the voltage settings are correct in the firmware.
Why the CV920-E42 Stands Out
This motherboard is a solid pick for universal TVs. Here’s why people like it:
- Android System: Watch streaming apps or browse the web on your TV.
- WiFi Built In: Go online without extra cables.
- Lots of Ports: Hook up devices with A/V, USB, HDMI, VGA, or LAN.
- Digital Tuner: Catch analog and digital TV signals.
- Fits Many Screens: Works with TVs from 32″ to 55″.
- Simple Updates: Keep your TV current with USB firmware updates.
Frequently Asked Questions
Here are answers to questions people often have about CV920-E42 firmware:
Can I use this firmware on a different motherboard?
No, it’s made just for the CV920-E42. Using it on another board could cause trouble.
How do I pick the right firmware?
Look at your TV’s current firmware version and specs. The file name shows the resolution and RAM/ROM it’s for.
Is it okay to update the firmware myself?
Yes, if you follow the steps. If you’re not sure, ask a technician for help.
What if the update doesn’t work?
Try again with a new USB drive or re-download the file. If it still fails, get in touch with us.
Wrapping Up
Updating your CV920-E42 firmware can make your TV work better and add new features. With the files and steps in this post, you can handle it yourself. Have questions? Drop a comment below or contact us. If this helped you, share it with others who might need it too!
