Welcome to teckwiki.com! This post is your one-stop resource for the CV9202H-CSM universal TV motherboard. We’re providing all the firmware files you need, along with detailed specifications and easy instructions. Whether you’re a technician fixing a TV or someone upgrading their setup, this guide has what you need.
Firmware updates keep your TV working well. They fix problems, improve speed, and add new options. With the CV9202H-CSM, updating is simple, and we’ve got the files ready for you.
What is the CV9202H-CSM Universal TV Motherboard?

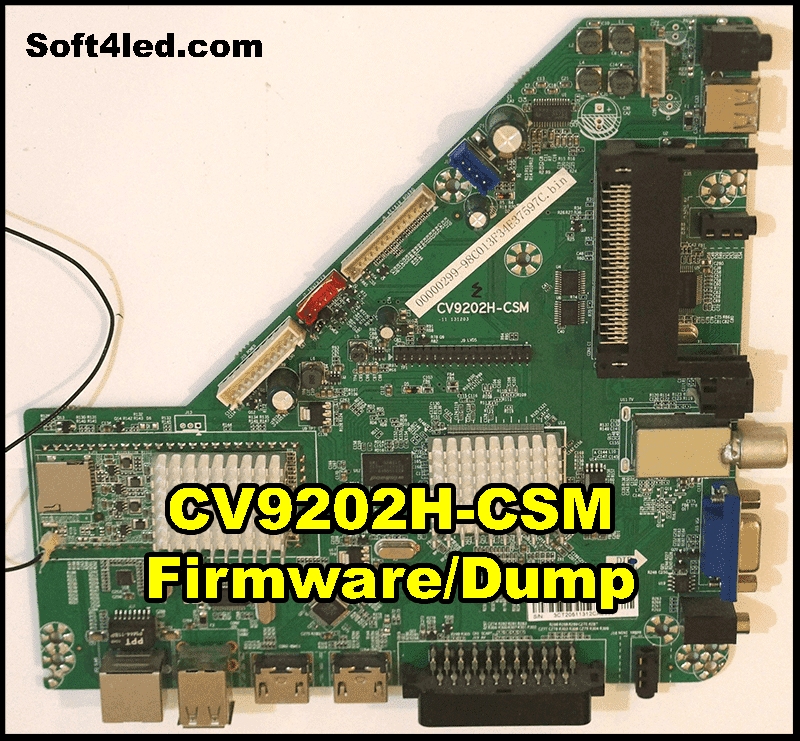

The CV9202H-CSM is a WIFI DVB (T+C) ATV Driver Motherboard made for LCD and LED TVs. It’s a universal board, so it works with many TV models. This makes it a popular choice for repairs and upgrades, especially in the Asia Pacific and Middle East markets.
It’s a non-combo board, meaning you’ll need a separate power module and LED backlight inverter circuit. The ATV card is built into the motherboard. It comes with modern features like HDMI, USB, PC input, component input, TV, Scart, and an Ethernet port for internet access.
CV9202H-CSM Specifications
Knowing your motherboard’s specs helps you pick the right firmware and understand its features. Here’s what the CV9202H-CSM offers:
- Brand/Mark: Universal Board
- Model: CV9202H-CSM
- Main Chip: SPV9202BD
- Product: LED TV
- LED Backlight: NA
- Flash IC: 8Mb
- Screen Supported: 28-40 inch
- Resolution: Up to 1920×1080
- Panel Voltage: 12V
- Power Input: External
- LAN: Yes
- Wifi: Yes
- Service Code: Source/Input
This board supports TVs from 28 to 40 inches with a max resolution of 1920×1080. It also has LAN and Wifi for internet connectivity, making it great for streaming or smart features.
Why Update Your TV Firmware?
Updating your TV’s firmware has several benefits:
- Fixes Issues: Solves software bugs that cause freezing or glitches.
- Boosts Performance: Makes your TV faster and smoother.
- Adds Features: Brings new options like better picture quality or connectivity.
- Keeps It Compatible: Ensures your TV works with new devices.
Let’s get to the firmware files next.
CV9202H-CSM Firmware Download
We’ve gathered the firmware files for the CV9202H-CSM motherboard in one place. These files help you update your TV, fix issues, and keep it running well. Here’s the download link:
| Filename | Download |
|---|---|
| CV9202H-CSM-T390HVD01.1 DLED39-MZ-020-DNS V39DS8100S | Download |
Important: Pick the right firmware for your TV board and display panel. The RAR file includes multiple files with resolutions like 1024×768, 1366×768, 1440×900, 1600×900, 1680×1050, 1920×1080, 1920×1200, and more. Check the details inside the RAR to find the correct one. All files are M90 (general remote control supported) and work with 4MB flash memory.
How to Install CV9202H-CSM Firmware
Updating your TV firmware is easy if you follow these steps:
What You’ll Need
- A USB drive formatted to FAT32
- The downloaded firmware file
- A TV with a USB port
Steps to Update
- Download the File: Click the link above to get the RAR file.
- Extract It: Use a tool like WinRAR to open the RAR and find the firmware files.
- Copy to USB: Put the right firmware file on your USB drive’s root directory.
- Plug It In: Insert the USB into your TV’s USB port.
- Start the Update: Turn on the TV. It should find the file and show instructions on the screen.
- Wait: Let the update finish (a few minutes). Don’t turn off the TV or remove the USB.
- Check It: After the TV restarts, go to settings to confirm the new firmware version.
If Something Goes Wrong
- USB Not Found: Make sure the file is on the USB root and it’s FAT32 formatted.
- Update Stops: Restart the TV and try again with the correct file.
- No Display: Adjust settings in the service menu if needed.
Still having trouble? Ask a technician for help.
Answers to Common Questions
Here are some questions people often ask about the CV9202H-CSM:
Will This Motherboard Work With My TV?
It’s made for LCD and LED TVs from 28 to 40 inches. Check your TV’s size and specs to be sure it matches.
What If the Firmware Update Doesn’t Work?
Try these steps:
- Restart the TV and redo the process.
- Double-check you used the right firmware file.
- Use a different USB drive.
- Get help from a technician if it still fails.
Can This Board Add New Features to My TV?
Yes, it has HDMI, USB, Wifi, and Ethernet, which can improve your TV with things like streaming or better device connections.
How Do I Open the Service Menu?
Use the “Source/Input” code on your remote. Be careful—wrong changes can mess up your TV.
Which Firmware File Should I Use?
The RAR file has many options. Match the resolution (like 1920×1080) to your TV’s display. Read the RAR details to pick the right one.
Final Thoughts
This guide gives you everything for the CV9202H-CSM universal TV motherboard—firmware files, specs, and clear steps. You can now update your TV, fix problems, or add features with confidence. For more tech tips, keep visiting teckwiki.com.
