Looking for a dependable TV motherboard? The LAD.MV56U.C36 is a universal combo control board built for LCD and LED TVs. It combines a power supply, LED driver, and ATV module into one efficient package. In this post, we’ll cover its features, technical specs, firmware downloads, and a simple guide to updating it. Whether you’re fixing a TV or upgrading one, this board has you covered. Plus, we’re sharing free firmware files to keep your setup running smoothly.
Introduction to LAD.MV56U.C36

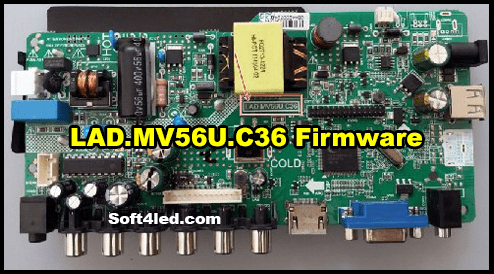

The LAD.MV56U.C36 is a universal TV motherboard made for Asia-Pacific and Middle-East markets. It’s an all-in-one solution that powers LCD and LED TVs up to 24 inches. With a built-in power supply and LED driver, it simplifies repairs and upgrades. The board also has a USB slot for software updates and playing files like MP3, MP4, and JPEG. Its energy-efficient design keeps power use low while delivering solid performance.
Key Features of LAD.MV56U.C36
Here’s what makes this motherboard stand out:
- USB Slot: Update software or play multimedia files like music, videos, and photos.
- Energy-Saving Power Supply: Uses an ultra-thin DC line with 45 watts to support LED-backlit TFT panels.
- High Resolution: Handles up to 1920×1080 for sharp, clear images.
- ATV Module: Supports analog TV signals for broader compatibility.
- Multiple Versions: Comes in variants like A36, A48, A75, B48, and C36 to match different TVs.
Technical Specifications
Check out the detailed specs below:
- Brand/Mark: China Universal HD Three in One Board
- Model: LAD-MV56U-C36
- Main Chipset: TSUMV56RUU-Z1
- Product: LED TV
- LED Backlight Voltage: 18-21V
- LED Backlight Current: 300mA*2
- Flash IC: 4Mb
- Screen Supported: Up to 24 inches
- Resolution: Up to 1920×1080
- Sound IC: CD1517CP
- Tuner IC: Optional
- Power Supply: 100V~240V AC
- Panel Power: 5V
- Standby Power Consumption: Less than 0.5W
- Frequency Range: 47Hz to 63Hz
- Service Code: Menu+1147
Different Versions of LAD.MV56U
The LAD.MV56U series offers several versions:
- LAD-MV56U-A36
- LAD-MV56U-A48
- LAD-MV56U-A75
- LAD-MV56U-B48
- LAD-MV56U-C36
While each version has its own strengths, this post focuses on the C36. It’s widely used and supports a range of TV panels and resolutions.
Firmware Downloads for LAD.MV56U.C36
Firmware is the software that runs your TV motherboard. Updating it can boost performance and fix issues. We’ve got two free firmware files for the LAD.MV56U.C36:
| Filename | Download |
|---|---|
| LAD.MV56U.C36-1366×768-Samsung-Dump | Download |
| LAD.MV56U.C36-Samsung-24 inch-Dump | Download |
These files work with 4MB flash memory and support resolutions like 1024×768, 1366×768, 1440×900, 1600×900, 1680×1050, 1920×1080, and 1920×1200. After downloading, check the RAR file for details to pick the right file for your TV board and panel.
How to Update Firmware on LAD.MV56U.C36
Updating your firmware is simple. Here’s how:
- Download the File: Grab one of the firmware files above and save it to a USB drive.
- Format the USB: Make sure the USB is in FAT32 format with only the firmware file on it.
- Plug It In: Insert the USB into the board’s USB slot.
- Access Service Mode: Turn on the TV, then press Menu+1147 to open the service menu.
- Start the Update: Find the firmware update option, select your file, and begin.
- Wait: Let the update finish without turning off the TV.
- Restart: Turn the TV off and on to apply the new firmware.
Benefits of Using LAD.MV56U.C36
Why pick this motherboard? Here are some reasons:
- Wide Compatibility: Works with many TV panels up to 24 inches.
- Affordable: A budget-friendly fix for broken TVs.
- Simple Updates: USB updates are quick and easy.
- Low Power Use: Saves energy with less than 0.5W on standby.
- Multimedia Playback: Enjoy music, videos, and photos via USB.
Conclusion
The LAD.MV56U.C36 universal TV motherboard is a practical choice for TV repairs or upgrades. It supports high resolutions, saves power, and comes with free firmware downloads to keep it running well. Grab the files linked above and follow our update guide to get started. Have questions? Drop them in the comments below!
