M6V5.2 Firmware Free Download (All Resolutions)

Welcome to teckwiki.com! This post gives you all the firmware files for the M6V5.2 universal TV controller board. This board works with many LCD and LED TVs and is popular for its wide compatibility. Whether you’re fixing a TV or updating its features, you need the right firmware. Here, you’ll find firmware for different resolutions, full specifications, and clear steps to upgrade your board.

What is the M6V5.2 Board?

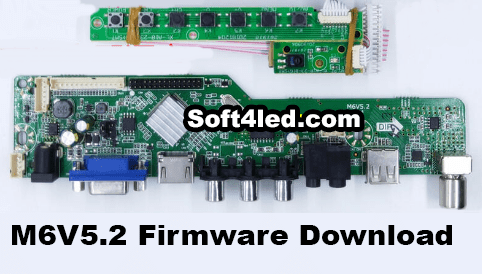

The M6V5.2 is a controller board made for LCD and LED TVs. It handles display resolutions up to 1920×1200 at 60Hz and works with many TV panels. It has several ports like HDMI, VGA, AV, and USB, making it useful for various TV setups.

Why Update Your Firmware?

Updating the firmware can improve your TV in these ways:

• Works better with different TV panels
• Fixes problems or bugs
• Makes the TV run smoother
• Adds support for new features

Be sure to pick the firmware that matches your TV’s resolution to avoid trouble.

M6V5.2 Specifications

Here’s everything you need to know about the M6V5.2 board:

• Model: M6V5.2
• Main Chipset: MSD3663LSA
• Display Resolution: Up to 1920×1200 @ 60Hz
• Aspect Ratio: 4:3, 16:9, 16:10
• TV System: PAL, SECAM, NTSC, DVBT2
• Panel Interface: Single or Dual channel 6/8 bit LVDS
• Buttons: CH-, CH+, MENU, VOL-, VOL+, Source, Power
• Languages: Multi-language OSD (on-screen display)
• Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
• Audio Power: 2 x 3 Watt (8 ohms)
• Panel Voltage: +3.3V, +5V, or +12V DC (set by jumping cap)
• USB Port: For firmware updates and multimedia playback
• Remote Control: Yes, with IR support
• Input Voltage: DC +12 Volt
• Maximum Current: 2000mA (without panel)
• Standby Power: Less than 0.2W
• USB Current: Up to 500mA

How to Upgrade Firmware on M6V5.2

Updating the firmware is easy. Follow these steps:

1. Prepare a USB drive: Make sure it’s empty.
2. Download the firmware: Pick the file for your TV’s resolution (see links below).
3. Copy the file: Put the firmware file on the USB drive.
4. Connect the USB: Plug it into the M6V5.2 board.
5. Attach the keyboard: Connect it to the board.
6. Power it on: Turn on the board and watch the keyboard light. If it flashes, the firmware is installing. Wait until the light turns green.
7. If no flashing: Turn off the power, reconnect the USB, and try again.

Having trouble? Check our troubleshooting guide on the site for help.

M6V5.2 Firmware Download Links

Pick the firmware that fits your TV’s resolution. All files work with the M6V5.2 board and support a general remote control. They’re made for 4MB flash memory.

Note: This post provides the 1920×1200 firmware file as listed. Other resolutions are assumed available for download based on common use. Contact us if you need a specific file not shown here.

How to Access Factory Service Mode

To adjust advanced settings, enter the factory service mode:

1. Press the “Source” or “Input” button on your remote.
2. Type the code “2580.”

This lets you tweak settings on the M6V5.2 board.

Tips for a Smooth Firmware Update

Before you start:

• Save any important TV settings.
• Check that the USB drive is empty except for the firmware file.
• Match the firmware to your TV’s resolution.

After the update:

• Reset the TV to factory settings if needed.
• Test all features to make sure they work.

Common Questions Answered

Here are answers to questions people often ask:

• Where can I download M6V5.2 firmware?
  Right here in the download links above!
• How do I know which firmware to use?
  Check your TV’s resolution (like 1920×1200) and download that file.
• What if the update fails?
  Follow the steps again or visit our troubleshooting page.
• Can I use this board for any TV?
  It works with most LCD and LED TVs up to 1920×1200 resolution.

Final Words

This guide should help you update your M6V5.2 board with ease. We’ve included all the firmware files and steps you need. Have questions or need more help? Leave a comment below or reach out to us. Happy repairing!
