Welcome to TeckWiki! If you have a TV with the MS35533-ZC01-01 motherboard and need its firmware, you’ve come to the right place. This post covers everything you need to know about this universal TV motherboard, including its features, specifications, and how to download the right firmware for your TV. We’ve also added a step-by-step guide to update your TV’s firmware easily.

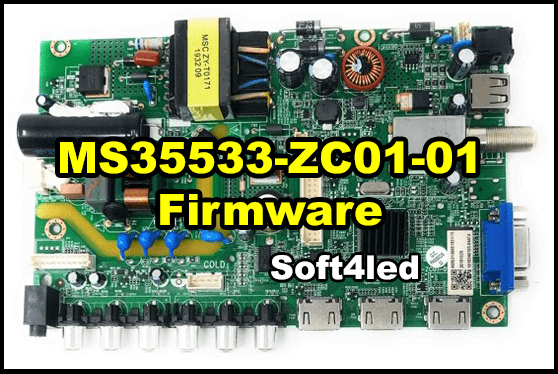

What is the MS35533-ZC01-01 Motherboard?
The MS35533-ZC01-01 is a control board found in many LCD and LED TVs across the Asia Pacific and Middle East markets. It works with TV panels from 24 to 39 inches and supports resolutions up to 1920×1080 (Full HD). Whether your TV has a non-HD or Full HD panel, this motherboard can handle it, making it a great fit for various models.
Key Features of MS35533-ZC01-01
Here’s what makes the MS35533-ZC01-01 stand out:
- Works with 24 to 39-inch panels
- Supports up to 1920×1080 resolution
- USB port for playing videos and updating firmware
- Multiple HDMI ports (version 1.4, with HDCP 1.1)
- Dual AV input for extra connections
- Multi-language support for easy use
- Widescreen display compatibility
- Audio output: 2 x 8W (8 ohms)
General Specifications
Check out these technical details for the MS35533-ZC01-01:
- Board Make: China
- Board Model: MS35533-ZC01-01
- Main Chipset: TSUMV59
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single or dual-channel LVDS
- Key Buttons: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Ports: HDMI, VGA, AV, USB, RF TV, Earphone Out
- Audio Power: 2 x 8W (8 ohms)
- Panel Voltage: +5V/+12V DC (default 12V)
- USB Port: Yes (for firmware and multimedia)
- IR Control: Yes (works with remote)
Electrical Parameters
- Input Voltage: AC220 Volt
- Maximum Current: 5000mA (without panel)
- Standby Power: Less than 0.5W
- USB Current: 500mA
Firmware Downloads for MS35533-ZC01-01
We’ve got two firmware files ready for the MS35533-ZC01-01, both for TVs with a 1366×768 resolution
| Filename | Download |
|---|---|
| MS35533-ZC01-01-1366×768-Haier-Mirror | Download |
| MS35533-ZC01-01-1366×768-Haier-Normal | Download |
| MS35533-ZC01-01-1366×768-Orient-Mirror | Download |
| MS35533-ZC01-01-1366×768-Orient-Normal | Download |
These files work with 4MB flash memory and support the M90 general remote control. Pick the one that matches your TV’s setup.
Note: If your TV uses a different resolution (like 1920×1080), these files won’t work. You’ll need to find the right firmware for your resolution. Many options, such as 1024×768, 1440×900, or 1920×1200, are available online—check the RAR file after downloading for more details.
How to Update Your TV’s Firmware
Updating firmware can fix problems and improve your TV’s performance. Here’s how to do it with the MS35533-ZC01-01:
- Download the correct firmware file from the links above.
- Extract it if it’s in a RAR or ZIP file.
- Copy the file to a USB drive (use FAT32 format).
- Plug the USB into your TV’s USB port.
- Turn on the TV and open the settings menu.
- Find “Firmware Update” or “Software Update.”
- Choose the file from the USB and follow the instructions on screen.
- Wait for it to finish, then restart your TV.
Tip: If it doesn’t work, use a different USB drive or download the file again to make sure it’s not broken.
Common Questions Answered
Here are answers to questions people often ask about the MS35533-ZC01-01:
Q: Will this work with my TV?
A: Look inside your TV or check the manual for the motherboard number. If it’s MS35533-ZC01-01, you’re good to go.
Q: What if my TV’s resolution isn’t 1366×768?
A: These files are for 1366×768 only. For other resolutions, search online or ask your TV maker for the right file.
Q: Can I use this firmware on a different motherboard?
A: No, it’s made just for the MS35533-ZC01-01. Using it elsewhere might harm your TV.
Q: What if the update stops halfway?
A: Try again with a new USB or re-download the file. Double-check the USB is FAT32.
Final Thoughts
The MS35533-ZC01-01 is a solid choice for many TVs, and updating its firmware keeps it running well. Grab the right file from the links above and use our guide to get it done. Got questions? Leave a comment below—we’re here to help!
