Welcome to teckwiki.com! This post is about the MS65860-ZC01-01 firmware. If you have a smart 4K TV from brands like Kivi or Telefunken, you can find all the firmware files you need here. We’ll also explain what this motherboard does and how to update it.

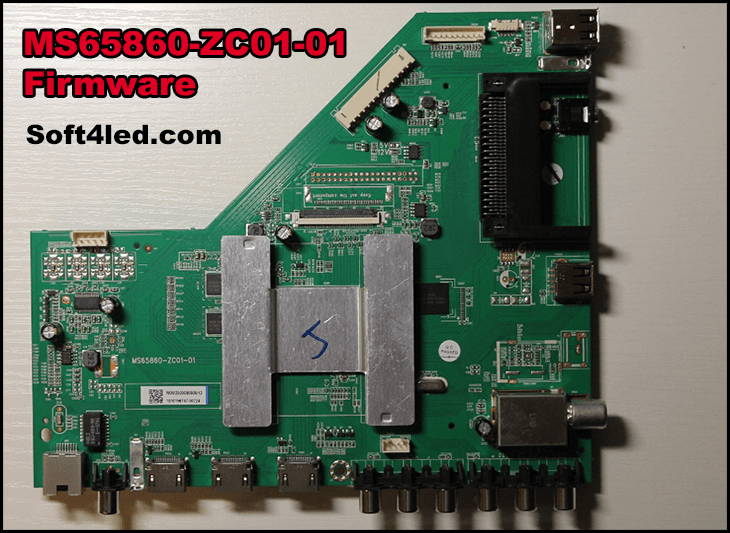

What is the MS65860-ZC01-01?
The MS65860-ZC01-01 is a universal TV motherboard for smart 4K LED TVs. It supports a resolution of 3840×2160, which is UHD 4K, and works with 60 Hz screens. This board runs on the Android platform and is not a combo board. It’s designed to power ultra HD smart TVs with great features.
Specifications and Features
Here are the main details of the MS65860-ZC01-01:
- Brand: LCD/LED 4K Smart Driver Board
- Model: MS65860-ZC01-01
- Chipset: MSD6586
- Resolution: 3840×2160 (UHD 4K)
- Screen Format: 16:9
- Operating System: Android 6.0.1
- CPU: ARM Cortex-A9, 1.2GHz, Dual-core
- GPU: Mali T450MP2, Dual-core
- RAM: 1.5 GB DDR3
- ROM: 4/8 GB
- Sound Output: 10W x 2
- Tuner: Analog (PAL/SECAM/NTSC) & Digital (DVB-C/T/T2)
- Power Input: 220-240 V AC
- Power Consumption: 130W
- Standby Power: 0.5W
- Firmware Type: USB Updateable (MstarUpgrade.bin)
This board has many input ports:
- HDMI
- AV
- Headphones
- VGA
- USB (for firmware updates and multimedia playback)
- RJ45 Ethernet (for wired internet)
It supports both analog TV signals (PAL/SECAM/NTSC) and digital TV signals (DVB-T/T2/C).
Firmware Download Links
| Filename | Download |
|---|---|
| MS65860-ZC01-01-3840×2160-KIVI | Download |
| MS65860-ZC01-01-3840×2160-TELEFUNKEN | Download |
We provide firmware files for the MS65860-ZC01-01 motherboard. These files are for specific TV brands and models. Download the correct one for your TV:
- Kivi TVs: MS65860-ZC01-01-3840×2160-KIVI
- Models: 43UK30G, 49UK30G, 50UK30G, 55UK30G, 55UC30G
- Telefunken TVs: MS65860-ZC01-01-3840×2160-TELEFUNKEN
- Model: TF-LED55S37T2SU
These files are for technicians or users who know how to update TV firmware. Make sure you pick the right file for your TV brand and model.
How to Update Firmware Using USB
Updating your TV’s firmware can fix problems and improve how it works. Here’s a simple guide to update the MS65860-ZC01-01 firmware with a USB drive:
- Download the File: Get the firmware file for your TV from the links above.
- Prepare the USB: Use a USB drive formatted to FAT32. Copy the firmware file (MstarUpgrade.bin) to the USB’s main folder.
- Connect the USB: Turn off your TV. Plug the USB into the TV’s USB port.
- Start the Update: Turn on the TV while holding the power button on the TV (not the remote).
- Wait: The TV will find the firmware and start updating. Don’t turn off the TV during this step.
- Finish: The TV will restart when the update is done.
Important Notes
- Use a good USB drive that works properly.
- Don’t stop the update once it starts.
- Double-check that the firmware matches your TV model to avoid damage.
Common Questions Answered
What’s the difference between analog and digital TV signals?
- Analog signals are older and can have interference. They use PAL, SECAM, or NTSC formats.
- Digital signals are newer, clearer, and use DVB-T, T2, or C formats.
Can I use this firmware for other TV brands?
No, these files are only for Kivi and Telefunken TVs with the MS65860-ZC01-01 board. Using them on other brands could cause problems.
How do I check if my TV has this motherboard?
Look at your TV’s manual or open the back panel to find the board’s model number. Be careful if you open the TV.
Why Use a Universal TV Motherboard?
A universal motherboard like the MS65860-ZC01-01 works with many TV brands. It’s a reliable choice for repairs or upgrades. The Android system also lets you use apps and stream content on your TV.
Conclusion
The MS65860-ZC01-01 firmware files are ready for you to download. Whether you have a Kivi or Telefunken 4K smart TV, these files can help keep your TV running well. Follow the update steps carefully. If you need help, leave a comment below. We’re here to assist!
