Welcome to teckwiki.com! This post is all about the MSD3463-T4C1 universal TV motherboard firmware. If you own a TV with this board, updating its software can boost performance and fix problems. We’re providing free firmware files for download, along with details to help you use them. Let’s get started.
What is the MSD3463-T4C1?

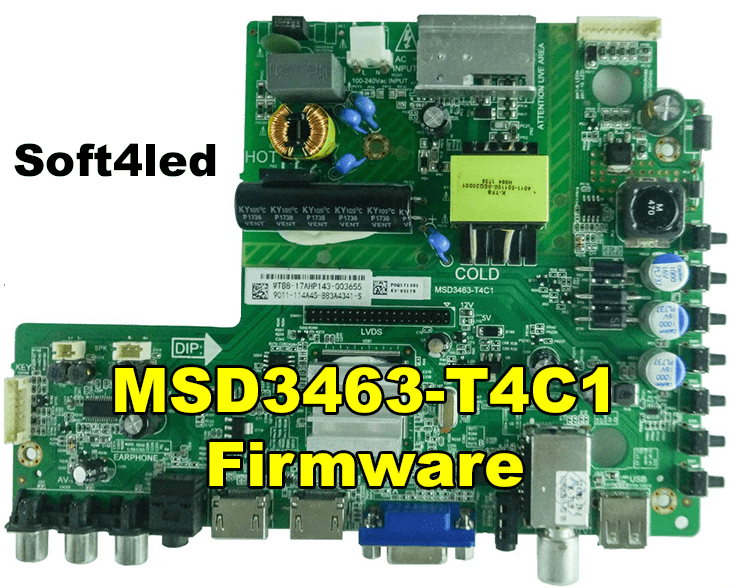

The MSD3463-T4C1 is a control board for analog LCD and LED TVs. It’s made in China and works well in Asia Pacific and Middle East markets. This board supports TV screens from 24 to 42 inches, with a maximum resolution of 1920×1080 (Full HD). Here are its main features:
- USB Port: Play multimedia files like videos and music. Use it to update the TV software too.
- HDMI Ports: Connect devices with HDMI 1.4. It includes HDCP 1.1 for secure playback.
- AV Input: Hook up older devices like DVD players.
- Multi-Language: Switch the TV menu to your preferred language.
- Widescreen: Works with both regular and widescreen TVs.
- Audio Output: Delivers 2 x 8 watts of sound at 8 ohms.
The board uses the TSUMV56 chipset and supports TV systems like PAL, SECAM, and NTSC. It’s compatible with single or dual-channel LVDS panels and runs on 220V AC power.
Why Update Your TV Firmware?
Firmware is the software that controls your TV. Keeping it updated can:
- Fix glitches or bugs.
- Improve picture and sound.
- Add new features.
- Make the TV work better overall.
If your TV freezes, has sound issues, or needs a refresh, a firmware update might solve it.
Available Firmware Files
Below are the firmware files for TVs using the MSD3463-T4C1 board. These are backup dumps, meaning they’re copies of the original software. Pick the one that matches your TV model:
| Filename | Download |
|---|---|
| MSD3463-T4C1-DAEWOO L32S639VKE-Backup-Dump | Download |
| MSD3463-T4C1-Hugo 40L81FDVB-Backup-Dump | Download |
| MSD3463-T4C1-TESLA 32K307BH-Backup-Dump | Download |
| MSD3463-T4C1-Tesla 32K397BH-Backup-Dump | Download |
| MSD3463-T4C1-Toshiba 32S1750EV-Backup Dump | Download |
Warning: Download the file for your exact TV model. Using the wrong one can harm your TV. Check your model number on the back of the TV or in the settings menu.
These files support resolutions like 1024×768, 1366×768, 1440×900, 1600×900, 1680×1050, 1920×1080, and 1920×1200. They work with 4MB flash memory and the M90 general remote control. After downloading, open the RAR file to find multiple T.VST56.03 files. Choose the one that fits your TV board and panel.
How to Install Firmware on Your TV
Updating your TV firmware is simple with a USB drive. Follow these steps:
- Download the File: Click the link for your TV model and save the firmware.
- Set Up USB: Format a USB drive to FAT32. Copy the firmware file to the main folder (root directory).
- Plug It In: Turn off your TV. Insert the USB drive into the TV’s USB port.
- Start the Update: Turn on the TV. Go to the settings menu, find “Software Update” or “Firmware Update,” and choose the USB option.
- Wait: The TV will load the file and update. Don’t turn it off during this step.
- Restart: The TV will reboot when done.
Tips: Use a stable power source. If the update stops, your TV could get damaged. The USB port supports up to 500mA of current, so use a basic USB drive.
Troubleshooting and FAQs
Got questions? Here are answers to common ones:
- How do I find my TV model?
Look on the back of your TV or in the settings menu under “About.” - What if I use the wrong firmware?
It could stop your TV from working. Always match the firmware to your model. - My TV won’t update. What’s wrong?
Check the USB drive. Reformat it or try another one. Ensure the file isn’t in a subfolder. - Can this fix a blank screen?
Yes, if it’s a software issue. Update the firmware and see if it helps. - No USB port on my TV?
The MSD3463-T4C1 has a USB port. If yours doesn’t, it might use a different board.
Technical Specs
Here’s a quick look at the MSD3463-T4C1 details:
- Board Model: MSD3463-T4C1
- Chipset: TSUMV56
- Panel Voltage: 5V or 12V (default 12V)
- Input Ports: HDMI, VGA, AV, USB, RF TV, Earphone Out
- Standby Power: Less than 0.5W
- Max Current: 5000mA (without panel)
- Factory Code: Input/Source 2580
Conclusion
Updating your MSD3463-T4C1 firmware keeps your TV running smoothly. Whether you have a DAEWOO, Hugo, TESLA, or Toshiba model, we’ve got the files you need. Download the right one, follow the steps, and enjoy a better TV experience. Have questions? Leave a comment below—we’d love to help!
