MSD3463-T8D1 Firmware Download (All Resolutions)

Welcome to teckwiki.com! This post is your complete guide to the MSD3463-T8D1 universal TV motherboard. We are sharing free firmware files for this board. You will also find details about its features and specifications. Whether you need to update your TV’s software or learn more about this control board, this guide has you covered.

What is the MSD3463-T8D1?

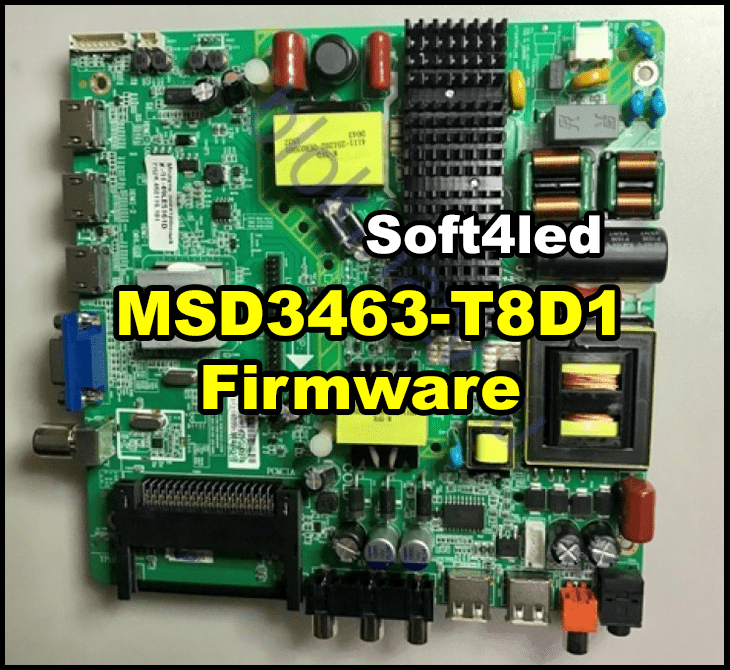

The MSD3463-T8D1 is a control board for LCD and LED TVs. It is built for the Asia Pacific and Middle East markets. This board works with LED panels from 24 inches to 42 inches. It supports resolutions up to 1920×1080, which is Full HD. This makes it a great fit for many TV models.

Key Features

Here are the main features of the MSD3463-T8D1:

• Panel Support: Fits 24″ to 42″ LED panels with resolutions up to 1920×1080.
• USB Interface: Use it for multimedia playback or software updates.
• HDMI Ports: Includes multiple HDMI ports that support HDMI 1.4 and HDCP 1.1.
• Compatibility: Works with non-HD and Full HD panels.
• Widescreen and Multi-Language: Supports widescreen displays and offers many language options.
• AV Input: Connect external devices with the AV input.

General Specifications

Check out the detailed specs of the MSD3463-T8D1:

• Board Make: China
• Board Model: MSD3463-T8D1
• Main Chipset: TSUMV
• TV System: PAL/SECAM/NTSC
• Panel Interface: Single-channel or Dual-channel LVDS
• Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
• Multi-Language: Yes
• Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
• Audio Output Power: 2 x 8 Watt (8 ohms)
• Panel Voltage: +5V/+12V DC (Default 12V)
• USB Port: Yes (for firmware updates and multimedia playback)
• IR Control: Yes (works with a remote control)

Electrical Parameters

Here are the electrical details:

• Working Input Voltage: AC220 Volt
• Maximum Current: 5000mA (without panel)
• Standby Power: Less than 0.5W
• Maximum Current for USB: 500mA
• Flash IC: 8MB
• Factory Code: Input/Source 2580
• Firmware Type: Backup Dump

Firmware Download

You can download the MSD3463-T8D1 firmware files for free. We are providing the file “MSD3463-T8D1-1920×1080-Supra-Dump.” It works with 4MB flash memory and supports many resolutions, such as:

• 1024×768
• 1366×768
• 1440×900
• 1600×900
• 1680×1050
• 1920×1080
• 1920×1200

These files are M90, meaning they support a general remote control. After downloading the RAR file, you will see multiple options. Pick the one that matches your TV board and panel.

How to Install the Firmware

Updating your TV with the firmware is simple. Follow these steps:

1. Download the File: Get the firmware from the link above.
2. Prepare a USB Drive: Format it to FAT32 and copy the firmware file onto it.
3. Plug in the USB: Insert the USB drive into your TV’s USB port.
4. Start the Update: Go to the TV menu, find “Software Upgrade,” and follow the instructions on screen.
5. Restart the TV: Turn the TV off and on after the update finishes.

Tips for Success

• Check that your TV matches the MSD3463-T8D1 specs.
• Keep the power steady during the update.
• Do not turn off the TV while it is updating.

Common Questions Answered

Here are answers to questions people often ask:

Is the MSD3463-T8D1 Compatible with My TV?

This board supports 24″ to 42″ LED panels with resolutions up to 1920×1080. Look at your TV’s manual to see if its panel size and resolution match.

Why Should I Update the Firmware?

An update can fix problems, improve how your TV works, or add new features.

What Else Can the USB Port Do?

Besides updates, the USB port lets you play videos, music, or photos from a USB drive.

Final Thoughts

The MSD3463-T8D1 is a reliable TV control board. It works with many panel sizes and resolutions, making it a solid choice for LCD and LED TVs. With its USB support, HDMI ports, and easy updates, it improves your TV experience. Grab the free firmware files from our site and update your TV with the steps above. Have questions? Reach out to us!
