MSD3663-T5C1 Firmware Download (All Resolutions)

Welcome to Teckwiki.com. This post provides all the firmware files for the MSD3663-T5C1 universal TV motherboard. This board is widely used in LCD/LED TVs across the Asia Pacific and Middle East markets. It comes with a range of features that make it a practical choice for technicians and users. Read on for key details, specifications, and step-by-step instructions to download and install the firmware.

Introduction to MSD3663-T5C1

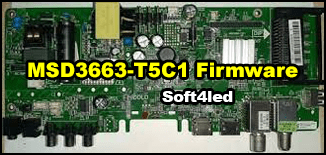

The MSD3663-T5C1 is an analog LCD/LED TV control board built for the Asia Pacific and Middle East. It supports LED panels from 24 to 42 inches with resolutions up to 1920×1080. Its USB interface allows multimedia playback and software upgrades. The board has multiple HDMI ports supporting version 1.4 and HDCP 1.1. It works with both non-HD and Full HD (FHD) LCD/LED panels, making it suitable for various TV models.

The MSD3663-T5C1 also supports widescreen displays and offers a multi-language option. It includes special inputs like AV, VGA, and Scart for connecting different devices.

Key Features of MSD3663-T5C1

• Supports 24-inch to 42-inch LED panels with resolutions up to 1920×1080
• USB port for multimedia playback and firmware upgrades
• Multiple HDMI 1.4 ports with HDCP 1.1 support
• Works with non-HD and FHD LCD/LED panels
• Widescreen support and multi-language options
• Includes AV, VGA, and Scart inputs

Detailed Specifications

General Specifications

• Board Make: China
• Board Model: MSD3663-T5C1
• Main Chipset: TSUMV
• TV System: PAL/SECAM/NTSC
• Panel Interface: Single-channel or Dual-channel LVDS
• Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
• Multi-Language: Yes
• Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
• Audio Output Power: 2 x 8 Watt (8 ohms)
• Panel Voltage: +5V/+12V DC (Default 12V)
• USB Port: Yes (Supports firmware upgrades and multimedia playback)
• IR Control: Yes (Works with remote control)

Electrical Parameters

• Working Input Voltage: AC220 Volt
• Maximum Current: 5000mA (without panel)
• Standby Power: Less than 0.5W
• Maximum Current for USB: 500mA
• Flash IC: 8MB
• Factory Code: Input/Source 2580
• Firmware Type: Backup Dump & USB Upgrade

Firmware Download and Installation

Available Firmware Files

You can download all firmware files for the MSD3663-T5C1 here, including the MSD3663-T5C1-1366×768-Toshiba-Dump. These files support multiple resolutions and panel types, such as:

• T.VST56.03-1024×768
• 1366×768
• 1440×900
• 1600×900
• 1680×1050
• T.VST56.03-1920×1080
• 1920×1200
• T-VST56-03-All-Panel-Files

After downloading the RAR file, you’ll find several labeled files inside. Choose the firmware that matches your TV board and display panel. All files are designed for 4MB flash memory and work with the M90 general remote control.

How to Upgrade Firmware

Upgrading the MSD3663-T5C1 firmware is simple. Follow these steps:

1. Download the firmware file from the link above.
2. Extract the RAR file to see all available firmware files.
3. Copy the correct firmware file to a USB drive.
4. Plug the USB drive into your TV’s USB port.
5. Go to the firmware upgrade option in your TV’s menu.
6. Follow the on-screen instructions to finish the upgrade.

Upgrading can fix issues, improve performance, and add new features. Make sure you pick the right firmware for your TV model and panel to avoid problems.

Troubleshooting Common Issues

If your TV has issues after the upgrade, try these steps:

• Check that you used the correct firmware file.
• Confirm the USB drive is formatted properly and the file is copied correctly.
• Reset the TV to factory settings and try the upgrade again.
• Contact a technician if the problem continues.

Common user questions include:

• Why won’t my TV turn on after the upgrade? Double-check the firmware file and USB connection.
• Will this firmware work with my TV? Match the file to your panel’s resolution and model.

Conclusion

The MSD3663-T5C1 is a reliable TV control board for many LCD/LED TVs. With the firmware files provided, you can keep your TV running smoothly. Download the MSD3663-T5C1 firmware today to improve your TV’s performance. Have questions or need help? Leave a comment below.
