Need firmware for your MSOV591-ZC01-01 universal TV motherboard? You’re in the right place! At teckwiki.com, we’re making it easy by offering all firmware files for this motherboard for free. This post will give you everything you need: details about the motherboard, specs, and step-by-step instructions to download and install the firmware. Let’s get started.

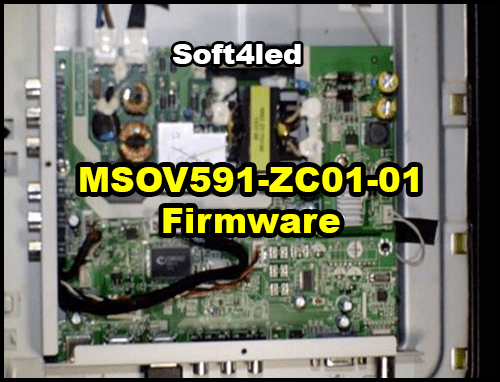

What is the MSOV591-ZC01-01 Motherboard?
The MSOV591-ZC01-01 is a universal TV control board built for LCD and LED screens. It’s made for the Asia Pacific and Middle East markets and works with TVs from 24 inches to 42 inches. It supports resolutions up to 1920×1080 (Full HD). This motherboard has a USB port for playing media and updating software, plus multiple HDMI ports that work with HDMI 1.4 and HDCP 1.1. It’s compatible with both Non-HD and Full HD panels, supports widescreen, and offers multi-language options. One handy feature is its AV input.
General Specifications
Here’s what you need to know about the MSOV591-ZC01-01:
- Board Make: China
- Board Model: MSOV591-ZC01-01
- Main Chipset: TSUMV59XUS-Z1
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single-channel or Dual-channel LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
- Audio Output Power: 2 x 8 Watt (8 ohms)
- Panel Voltage: +5V/+12V DC (Default 12V)
- USB Port: Yes (for firmware updates and media playback)
- IR Control: Yes (works with a remote)
These specs make it a solid choice for many TV setups.
Electrical Parameters
Check these electrical details to ensure it fits your TV:
- Working Input Voltage: AC220 Volt
- Maximum Current: 5000mA (without panel)
- Standby Power: Less than 0.5W
- Maximum Current for USB: 500mA
- Flash IC: 4MB
- Factory Code: Input/Source 2580
- Firmware Type: Backup Dump
These numbers help you confirm it’s safe and compatible with your system.
Firmware Files Available
We’re sharing two firmware files for the MSOV591-ZC01-01, both free to download:
| Filename | Download |
|---|---|
| MSOV591-ZC01-01-1366×768-ELRYAN-Backup-Dump | Download |
| MSOV591-ZC01-01-1366×768-Haier-R842-Mirror-Dump | Download |
| MSOV591-ZC01-01-1366×768-Haier-R842-Normal-Dump | Download |
| MSOV591-ZC01-01-1366×768-Orient-18275-Mirror-Dump | Download |
| MSOV591-ZC01-01-1366×768-Orient-18275-Normal-Dump | Download |
| MSOV591-ZC01-01-1366×768-Orient-R842-Mirror-Dump | Download |
| MSOV591-ZC01-01-1366×768-Orient-R842-Normal-Dump | Download |
| MSOV591-ZC01-01-TCL LED32D8810-Backup-Dump | Download |
Both are backup dumps, perfect for updating or fixing your TV’s software. Pick the file that matches your TV model and resolution.
How to Download and Install the Firmware
Updating your TV with the firmware is simple. Follow these steps:
- Find the Right File: Match the firmware to your TV’s model and resolution.
- Download It: Click the link above to get the file.
- Set Up a USB Drive: Format a USB drive to FAT32 and copy the firmware file onto it.
- Plug It In: Insert the USB drive into your TV’s USB port.
- Go to the Upgrade Menu: Use your remote to find the upgrade option (check your TV manual for details).
- Choose the File: Select the firmware file and start the update.
- Wait: Let the TV finish updating—don’t turn it off.
- Restart: Turn your TV off and on again to finish the process.
Tip: Double-check that the firmware fits your TV model. A wrong file could cause problems. If you’re unsure, look at your TV manual or ask us for help.
Frequently Asked Questions
Got questions? Here are answers to some common ones:
- What does firmware do?
It’s the software that controls your TV’s display, sound, and inputs. Without it, your TV won’t work right. - Will this firmware work on other motherboards?
No, it’s only for the MSOV591-ZC01-01. Other boards need different files. - How do I pick the right firmware?
Check your TV’s model and resolution, then match it to the file name. - Can I undo an update?
Usually, no. Make sure you have the correct file before starting. - What if the update fails?
Try a different USB drive or download the file again. If it still doesn’t work, contact us.
These answers cover what people often ask on Google, like “how to update TV firmware” or “what firmware do I need?”
Conclusion
The MSOV591-ZC01-01 is a reliable universal TV motherboard for many models. With our free firmware downloads, you can keep your TV working well. Just choose the right file and follow the steps above. Need help? Reach out to us at teckwiki.com. Enjoy your TV!
Download Link:
