The P75-6681V9.2 is a universal TV motherboard that powers smart TVs with Android features. It works with screens from 39 to 55 inches and supports Full HD resolution (1920×1080). If you need to update or fix your TV’s firmware, this guide has everything you need. We provide the firmware files and simple steps to install them. This post is for anyone wanting to improve their TV experience, from beginners to tech-savvy users.
Overview of P75-6681V9.2
The P75-6681V9.2 is a smart Android board that turns your TV into an entertainment hub. It runs on Android 12, letting you use apps like Netflix and YouTube right on your TV. It has built-in WiFi for easy internet access to stream shows or browse online. The board delivers Full HD resolution (1920×1080) for sharp, clear pictures. It fits TVs with screen sizes from 39 to 55 inches, making it a flexible option for many models.
Features
Here’s what makes the P75-6681V9.2 stand out:
- Smart Android System: Uses Android 12 for apps and streaming.
- Full HD Quality: Shows crisp 1920×1080 visuals.
- Built-in WiFi: Connects to the internet without cables.
- Multiple Ports: Has USB, HDMI, RCA, and LAN/RJ45 ports for connections.
- Strong Audio: Provides 20W (2x10W) sound output.
- Mira-Cast: Mirrors your phone or tablet screen to the TV.
Specifications
These are the technical details of the P75-6681V9.2:
- Main Chipset: MSD6681BQHA-8-00G0
- CPU: Quad-Core (A53*4)
- GPU: Mali-450
- Android Version: Android 12
- Resolution: 1920×1080
- Audio Power: 2x10W (20W total)
- Backlight Voltage: 63-75.6V
- Backlight Current: 590mA
- Backlight Power: 45W
- USB Ports: 2
- HDMI Ports: 3
- CI: Yes
- Component: Yes
- RJ45: Yes
- Tuner: ATV
- WiFi: Yes
- Mira-Cast: Yes
- Bluetooth: No
- Memory (RAM): 1GB DRAM
- Storage (ROM): 8GB EMMC Flash
- Power Rating: AC220V
- Power Consumption: 105W
- Firmware Name: MTK6681P.bin
- Firmware Type: EMMC Backup Dump and USB bootable
- Product User: ECON, HARPER, THOMSON
Firmware Installation
Firmware updates or reinstalls can solve TV problems or add new features. Here’s how to install the P75-6681V9.2 firmware:
- Download the Firmware: Find the EMMC backup file linked below.
- Get Tools Ready: You need a programming tool to write the firmware.

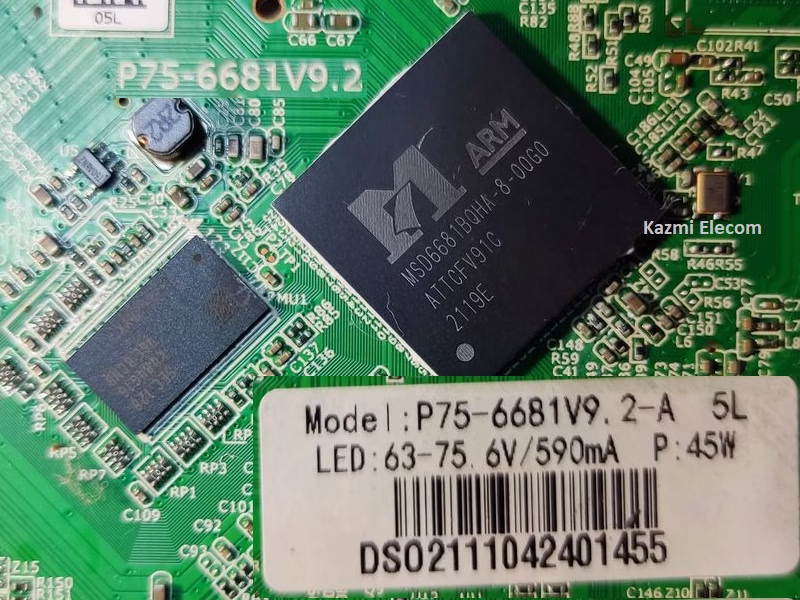

- Find EMMC Pins: Look for the D0, CMD, and CLK pins on the motherboard.
- Connect the Tool: Hook up the programming tool to the EMMC pins.
- Write the Firmware: Use the tool’s instructions to load the EMMC data.
- Check It Works: Turn on the TV to see if it starts and runs properly.
Note: Save a copy of your current firmware first. If this feels tricky, ask a professional for help.
Downloading the Firmware
The P75-6681V9.2 firmware files are available on our website. Click the link below to get them. Be sure to pick the right version for your TV.
| Filename | Download |
|---|---|
| P75-6681V9.2-1366×768-8G-ECON-EMMC.part1 | Download |
| P75-6681V9.2-1366×768-8G-ECON-EMMC.part2 | Download |
| P75-6681V9.2-1366×768-8G-ECON-EMMC.part3 | Download |
| P75-6681V9.2-1366×768-8G-ECON-EMMC.part4 | Download |
| P75-6681V9.2-1920×1080-8G-HARPER-USB.part1 | Download |
| P75-6681V9.2-1920×1080-8G-HARPER-USB.part2 | Download |
| P75-6681V9.2-1920×1080-8G-HARPER-USB.part3 | Download |
| P75-6681V9.2-1920×1080-8G-HARPER-USB.part4 | Download |
Troubleshooting
If something goes wrong, try these fixes:
- TV Won’t Start: Check the power cord and connections.
- No Picture: Make sure the backlight voltage is between 63-75.6V.
- Firmware Fails: Double-check the EMMC pins and tool setup.
- Apps Don’t Work: Clear app data or reinstall from Android settings.
Need more help? Reach out to our support team or check online forums for tips.
Why Update Your Firmware?
Updating firmware can fix bugs, improve speed, or add new features. For example, it might make apps run better or fix sound issues. Many users search for “how to fix my smart TV” or “why is my TV slow,” and a firmware update often solves these problems.
Conclusion
The P75-6681V9.2 is a reliable universal TV motherboard for smart entertainment. It offers Android 12, Full HD resolution, and plenty of ports. With this guide, you can update or reinstall the firmware to keep your TV working well. Download the firmware now and follow the steps to get started.
