T.MT8222.10B Firmware Free Download (All Resolutions)

Welcome to teckwiki.com! If you need firmware for the T.MT8222.10B universal LCD/LED TV motherboard, you’re in the right spot. This post covers everything you need: detailed specifications, free firmware downloads, and clear upgrade instructions. Whether you’re a technician or just fixing your TV at home, this guide has you covered with up-to-date, practical info.

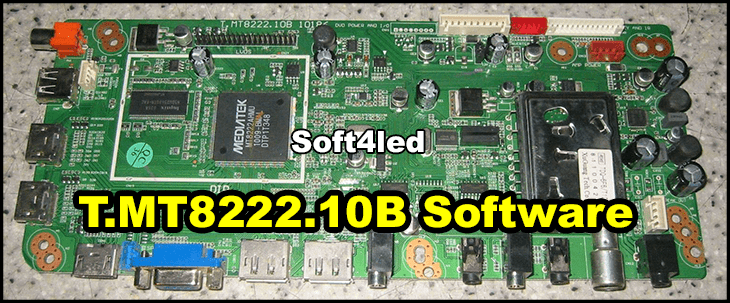

What Is the T.MT8222.10B Motherboard?

The T.MT8222.10B is a universal driver board for LCD and LED TVs. It works with many panels and supports a wide range of features, from HDMI inputs to USB multimedia playback. Powered by the MediaTek MT8222A chipset, it’s a reliable choice for TV repairs or upgrades. Below, you’ll find all the specs and firmware files you need.

Specifications of T.MT8222.10B

Here’s a full breakdown of the T.MT8222.10B motherboard:

• Model: T.MT8222.10B 10186
• Main Chipset: MediaTek MT8222A
• Tuner: TDQ-6F6/T126CW
• Display Format: Up to 1080p
• TV System: PAL, SECAM, NTSC
• Panel Interface: Single or Dual channel LVDS
• Key Buttons: CH-, CH+, MENU, VOL-, VOL+, Source, Power
• OSD Languages: Multi-language support
• Ports: HDMI, VGA, AV, USB, RF TV, Earphone Out
• Audio Output: 2 x 5 Watt (8 ohm)
• Panel Voltage: +3.3V, +5V, +12V DC (set by jumping cap)
• USB Features: Firmware upgrades and multimedia playback
• Supported USB Formats:
  • Audio: Mp3, wma, m4a/aac
  • Video: avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb
  • Pictures: jpg, jpeg, bmp, png
  • Text: text files
• IR Control: Yes, works with remote
• Electrical Specs:
  • Input Voltage: DC +12V
  • Max Current: 2000mA (without panel)
  • Standby Power: Less than 0.2W
  • USB Max Current: 500mA

This board supports resolutions like 1024×768, 1366×768, 1920×1080, and more, making it flexible for different TVs.

Download T.MT8222.10B Firmware Files

We’ve got the firmware you need. Below is the available file:

More Options: After downloading, the RAR file includes multiple T.VST56.03 firmware versions for various resolutions:

• 1024×768
• 1366×768
• 1440×900
• 1600×900
• 1680×1050
• 1920×1080
• 1920×1200
• T-VST56-03-All-Panel-Files

These files work with 4MB flash memory and support the M90 general remote. Check the RAR contents to pick the right file for your TV’s panel.

Notes:

• Confirm compatibility with your TV model before upgrading.
• Use at your own risk—we’re not liable for issues during the process.
• Back up your current firmware if you can.

How to Upgrade Firmware on T.MT8222.10B

Upgrading the firmware is simple. Follow these steps:

1. Prepare Your USB:
   • Format a USB drive to FAT32.
   • Copy the firmware file onto it.
2. Connect the USB:
   • Plug the USB into the T.MT8222.10B’s USB port.
3. Power Up:
   • Turn on the TV.
   • Wait until the IR indicator stops flashing (about 1 minute).
4. Finish Up:
   • When the light stops, the upgrade is done.
   • Remove the USB drive.

Warning: Don’t unplug the USB or turn off the TV during the upgrade. It could harm the board.

Extra Tips and Info

Compatibility

The T.MT8222.10B works with many LCD/LED panels. Match your panel’s voltage (+3.3V, +5V, or +12V) to the board’s settings using the jumping cap.

Troubleshooting

• USB not working? Reformat it or try another drive.
• Upgrade fails? Double-check the file and your TV model.

Factory Service Mode

Need to tweak settings? Press MENU on your remote to enter factory mode.

Why Upgrade?

Updating firmware can fix bugs, improve performance, or add features. It’s a quick way to keep your TV running smoothly.

Frequently Asked Questions

From Google’s “People Also Ask,” here are answers to common questions:

• “Is the T.MT8222.10B compatible with my TV?”
  Check your panel’s voltage and resolution against the specs above. The included files cover many options.
• “Where can I download universal TV firmware?”
  Right here on teckwiki.com! We’ve got the T.MT8222.10B files ready for you.
• “How do I know which firmware file to use?”
  Open the RAR after downloading. Match the resolution (e.g., 1920×1080) to your TV’s display.

Wrap-Up

The T.MT8222.10B is a solid universal TV motherboard with tons of features—HDMI, USB playback, and multi-language support. With the firmware files and instructions here, you can update your TV in minutes. Grab the download, follow the steps, and get your TV back to top shape. Questions? Drop them below!
