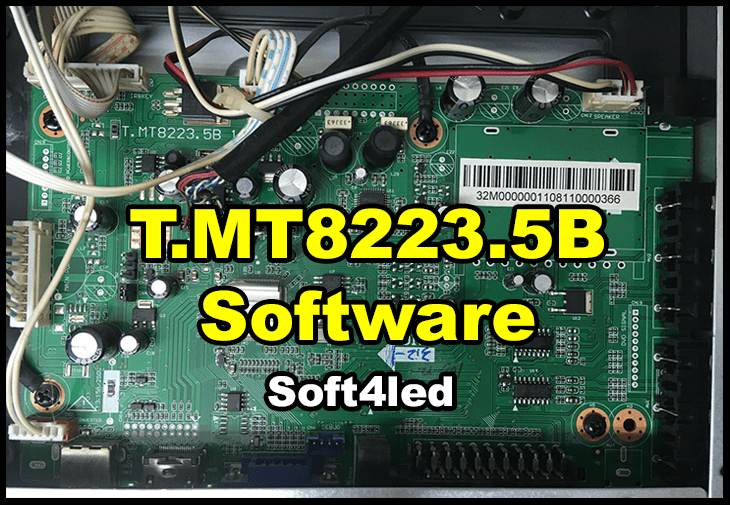

Welcome to teckwiki.com! This post provides all the firmware files for the T.MT8223.5B universal TV motherboard. We’ve put together a clear guide for technicians and DIY users. You’ll find specifications, download links, and steps to upgrade your TV’s motherboard.
The T.MT8223.5B is a universal LCD/LED driver board. It works with many TV models and supports resolutions up to 1080p. If you need to fix or update your TV, this guide has everything you need.
Specifications
Here are the key details for the T.MT8223.5B universal TV motherboard:
- Model No.: T.MT8223.5B 10424
- Main Chipset: MT8223
- Tuner: F20WT-3DDR-E
- Display Format: Up to 1080p
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single or Dual channel LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language OSD: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out Jack
- Audio Output Power: 2 x 5 Watt (8 ohm)
- Panel Voltage: +3.3V/+5V/+12V DC (set with jumping cap)
- USB Port: Yes (for firmware upgrades and multimedia playback)
- USB File Formats:
- Audio: Mp3, wma, m4a/aac
- Video: avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb
- Picture: Jpg, jpeg, bmp, png
- Text: text
- IR Control: Yes (works with remote control)
- Electrical Parameters:
- Working Input Voltage: DC +12 Volt
- Maximum Current: 2000mA (without panel)
- Standby Power: <0.2W (motherboard only)
- Maximum Current for USB: 500mA
These specs make the T.MT8223.5B a flexible choice for many TVs.
Firmware Download
We provide multiple firmware files for the T.MT8223.5B motherboard. These files support various resolutions, including 1024×768, 1366×768, 1440×900, 1600×900, 1680×1050, 1920×1080, and 1920×1200. They work with the M90 general remote control and 4MB flash memory.
Click the link below to download:
[Download Here]
| Filename | Download |
|---|---|
| T.MT8223.5B 10424-Erisson -19LEN60-LC185EXN | Download |
After downloading, you’ll get a RAR file with several firmware options. Pick the one that matches your TV’s panel and resolution. For example, one file included is “T.MT8223.5B 10424-Erisson -19LEN60-LC185EXN”. More details are in the RAR file.
Firmware Upgrade Instructions
Upgrading the firmware on your T.MT8223.5B is simple. Follow these steps:
- Copy the firmware file to a FAT32 formatted USB disk.
- Plug the USB disk into the motherboard’s USB port on your TV.
- Turn on the TV and wait. The IR indicator LED will flash during the update.
- When the LED stops flashing, the upgrade is done. Remove the USB disk.
The process takes about one minute.
Before You Start
- Turn off and unplug your TV.
- Use a FAT32 formatted USB disk.
- Download the right firmware for your TV’s resolution.
- Read these steps carefully.
Factory Service Mode
Need to access advanced settings? Here’s how to enter factory service mode:
- Press the MENU button on your remote.
- Enter the code 1147.
This opens up extra options for your TV’s configuration.
Compatibility and Usage
The T.MT8223.5B works with many LCD/LED TVs. It handles different panel voltages and resolutions up to 1080p. This makes it a good fit for various models.
How to Check Compatibility
- Look at your TV’s panel specs. Match the resolution and interface (single or dual channel LVDS).
- Make sure the input/output ports fit your needs.
- Check that the audio and power settings work for your TV.
How to Use It
After installation, control the TV with the key buttons or remote. The USB port lets you update firmware or play media files like music, videos, and pictures.
Troubleshooting and Support
Having trouble? Try these tips:
- Check that your USB disk is FAT32 and the firmware file is copied correctly.
- Confirm you picked the right firmware for your TV’s resolution and panel.
- Look at all connections. Set the panel voltage with the jumping cap.
- If the LED keeps flashing during the update, use a different USB disk or download the file again.
Need more help? Contact our support team at [support email or contact form].
Conclusion
The T.MT8223.5B universal TV motherboard is a solid choice for TV repairs or upgrades. It supports many resolutions and has plenty of ports. Plus, the firmware upgrade process is quick and easy.
Download the firmware files now and use our guide to update your TV. Have questions? Reach out to us anytime.
