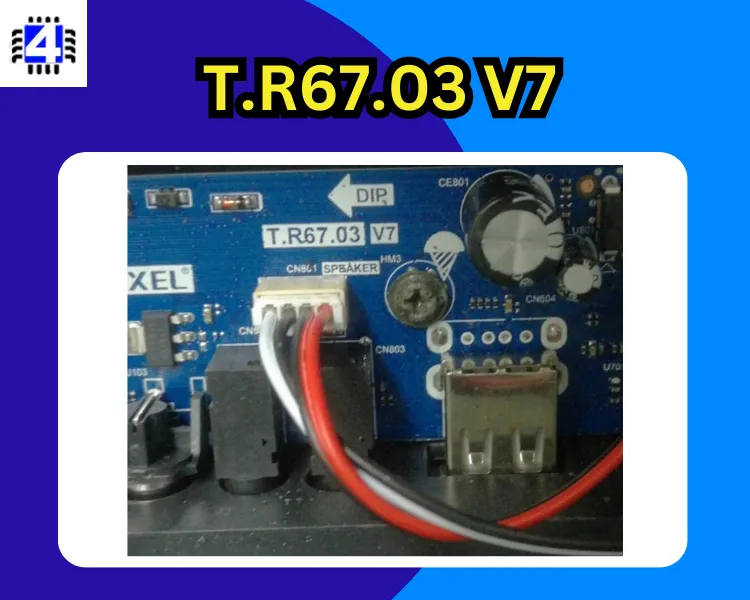

T.R67.03 V7 is a versatile jumper board equipped with multi-resolution software. It features the UTS6710-X main chipset and supports display formats of up to 1920×1080 with aspect ratios of 4:3, 16:9, and 16:10. The board incorporates a tuner (5160) and sound module (CD1517CP), and its firmware can be updated using the YDG.6710.bin or YDG_6710.code.bin files.
The T.R67.03 V7 jumper board offers a range of general specifications to accommodate various TV systems, including PAL, SECAM, and NTSC. It supports both single-channel and dual-channel LVDS panel interfaces and provides key button functions for channel selection, menu navigation, volume control, source switching, and power operations. The board includes a multi-language on-screen display and boasts multiple input/output ports such as HDMI, VGA, AV, USB, RF TV interface, and earphone output. It also features a built-in IR control that can be operated using a remote control.
In terms of electrical parameters, the T.R67.03 V7 jumper board requires a working input voltage of DC +12 Volts. The maximum current draw is 2000mA without a panel connected, and the standby power consumption for the motherboard alone is less than 0.2W. The USB port on the board supports firmware upgrades and multimedia playback, with a maximum current output of 500mA. The USB port is compatible with various file formats, including audio (Mp3, wma, m4a/aac), video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), picture (Jpg, jpeg, bmp, png), and text files.
Overall, the T.R67.03 V7 jumper board is a feature-rich solution that combines multi-resolution capabilities, versatile connectivity options, and user-friendly controls. Its compatibility with different TV systems, input/output ports, and file formats makes it suitable for a wide range of applications in the field of display technology.
T.R67.03 V7 Specification
| Information | Details |
|---|---|
| Model No. | T.R67.03 V7 |
| Main Chipset | UTS6710-X |
| Display Format | Up to 1920×1080 |
| Aspect Ratio | 4:3, 16:9 & 16:10 |
| Tuner | 5160 |
| Sound | CD1517CP |
| Bin Name | YDG.6710.bin, YDG_6710.code.bin |
| Multi Resolution Codes | |
| TV System | PAL/SECAM/NTSC |
| Panel Interface | Single-channel or Dual-channel LVDS |
| Key Button Functions | CH-/CH+/MENU/VOL-/VOL+Souce/Power |
| Multi-Language OSD | Yes |
| Input/Output Ports | HDMI, VGA, AV, USB, RF TV interface, Earphone Out |
| Audio O/P Power | 2 x 3 Watt (8 ohms) |
| Panel Voltage | +3.3V/+5V/+12V DC (jumping cap setting) |
| USB Port | Yes (Firmware Upgrade and Multimedia Playback) |
| USB File Format | Audio (Mp3, wma, m4a/aac), Video (avi, mp4, etc.) |
| IR Control | Yes (Controllable by Remote Control) |
| Working Input Voltage | DC +12 Volt |
| Maximum Current | 2000mA (Without Panel) |
| Standby Power | <0.2W (for the motherboard only) |
| Maximum Current for USB | 500mA |
