T.SK105A.03 Firmware Free Download (All Resolutions)

Welcome to teckwiki.com! If you use the T.SK105A.03 universal TV motherboard, this post is for you. We provide all firmware files for different resolutions, free to download.

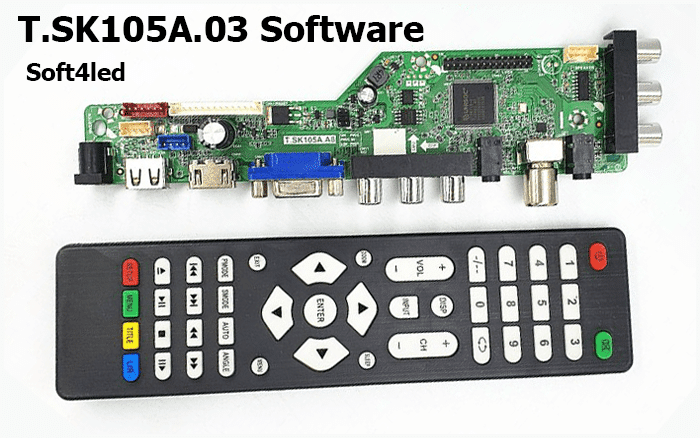

The T.SK105A.03 is a universal jumper option board made for LCD/LED TV panel screens. It works with display formats up to 1920×1200 (Full HD) and screens up to 42 inches. It has many ports like HDMI, VGA, AV, USB, RF TV interface, and earphone out. It supports multiple languages and uses a USB port for firmware updates and multimedia playback.

Firmware is the software that runs your TV. Updating it helps with:

• Better performance
• Fixing bugs
• Adding new features
• Working with new devices

Having the right firmware for your TV’s resolution is key.

Available Firmware Files for Download

Here are the firmware files for the T.SK105A.03 motherboard. Each matches a specific resolution. Pick the one for your TV and click the download link.

Note: These files work with the M90 remote and 4MB flash memory.

How to Upgrade Your TV’s Firmware

Follow these steps to update your TV’s firmware:

1. Prepare the USB Drive:
   • Format a USB drive to FAT32.
   • Copy the firmware file (for example, UTS6710_100.bin) to the USB’s root directory.
2. Connect the USB Drive:
   • Plug the USB into the T.SK105A.03 motherboard’s USB port.
3. Power On the TV:
   • Turn on the TV. The update should start on its own.
   • Wait until the IR indicator LED stops flashing or flashes fast.
4. Remove the USB Drive:
   • Unplug the USB when the update is done.
   • It takes about one minute.

Important:

• Match the firmware to your TV’s resolution.
• Do not turn off the TV or remove the USB during the update.
• If it fails, try a new USB or re-download the file.

A Word of Caution

Updating firmware is usually simple, but be careful. Using the wrong file or stopping the process can harm your TV. If you’re unsure, ask a professional for help.

Frequently Asked Questions (FAQs)

How do I find my TV’s resolution?

Check your TV’s manual or settings menu. You can also look up your TV model online.

What if my resolution isn’t listed?

If it’s not there, the T.SK105A.03 may not support it. Contact support for help.

Can I use these files for other motherboards?

No, these are only for the T.SK105A.03. Using them elsewhere can cause problems.

What if the update fails?

Try these steps:

• Use a different USB drive.
• Download the file again.
• Check the file is in the root directory.
• If it still fails, reach out to support.

General Specifications

• Model No.: T.SK105A.03
• Main Chipset: UTS6710-x
• Display Format: Up to 1920×1200 (FHD)
• Supported Screens: Up to 42 inches
• Aspect Ratio: 4:3, 16:9, 16:10
• TV Format: Analog Signal
• Supported Languages: Russian, English, Hindi, Simplified Chinese, Khmer, Vietnamese, Myanmar, French, German, Italian, Spanish
• Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
• Audio Output Power: 2 x 3 Watt (8 ohms)
• Screen Voltage: 3.3V / 5V / 12V (Jump cap)
• USB Port: For firmware updates and multimedia playback (supports audio, video, pictures, text)
• IR Control: Yes, works with M90 remote

Electrical Parameters

• Working Input Voltage: DC +12 Volt
• Maximum Current: 3-5 Amp
• Standby Power: <0.2W (motherboard only)
• Maximum Current for USB: 500mA

Factory Service Mode

Press Menu + 1147 on your remote to enter factory service mode.

Conclusion

The T.SK105A.03 is a reliable universal motherboard for LCD/LED TVs. With the firmware files above, you can keep your TV running well. Choose the right file for your resolution and follow the steps carefully.
