Welcome to teckwiki.com! This post provides all the firmware files for the T.V56.031 universal TV motherboard. You’ll learn what this board is, its features, how to upgrade its firmware, and where to download the files. Everything is explained in simple terms to help you get the most out of your TV repair or setup.
Introduction to T.V56.031 Universal TV Motherboard

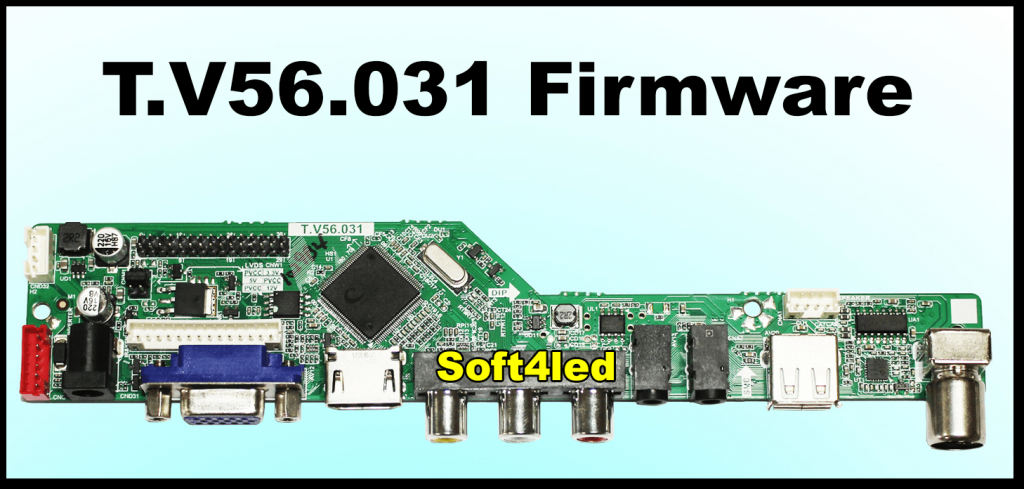

The T.V56.031 is a universal controller board for LCD and LED TVs. It’s made for Asian markets and includes Russian language support in its menu. This board can handle screen resolutions up to 1920×1080 and works with 7-55″ LVDS screens. Keep in mind it doesn’t support every panel, so you’ll need to check your TV’s specs before using it.
This board is popular among TV repair technicians and hobbyists who need a reliable solution for fixing or building TVs. Below, we cover its specifications, firmware upgrade process, and download links.
Technical Specifications
Here’s what the T.V56.031 offers:
- Model No.: T.V56.031
- Main Chipset: TSUMV56RUU-Z1
- Support Language: Russian, English, Chinese, French, Vietnamese
- Display Format: 720p
- Max Resolution: Up to 1920×1080
- Aspect Ratio: 4:3, 16:9, 16:10
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single or Dual channel LVDS
- Mirror Enable: Yes
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language OSD: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
- Audio Output Power: 2 x 3 Watt (8 ohm)
- Panel Voltage: +3.3V/+5V/+12V DC (set by jumping cap)
- USB Port: Yes (for firmware upgrades and multimedia playback)
- USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
- IR Control: Yes (works with remote control)
- Working Input Voltage: DC +12 Volt 4Amp
- Maximum Current: 2000mA (without panel)
- Standby Power: Less than 0.2W (motherboard only)
- Maximum Current for USB: 500mA
These specs make it a flexible choice for many TV setups.
How to Upgrade Firmware
Upgrading the firmware on the T.V56.031 is simple. Follow these steps:
- Copy the firmware file (“VST56_4MB.bin”) to a USB disk formatted in FAT32.
- Plug the USB disk into the USB port on the TV’s mainboard.
- Turn on the TV and wait for the IR indicator LED to flash quickly.
- The upgrade takes about 1 minute. When done, unplug the USB disk.
- If the LED keeps flashing, wait 1 minute, then turn the TV off and on, and remove the USB disk.
Pick the firmware that matches your TV’s screen resolution. You’ll find the download links below.
Download T.V56.031 Firmware by Resolution
Here are the firmware files for different screen resolutions:
| Filename | Download |
|---|---|
| T.V56.031-1024×600 | Download |
| T.V56.031-1024×768 | Download |
| T.V56.031-1280×1024 | Download |
| T.V56.031-1280×720 | Download |
| T.V56.031-1280×768 | Download |
| T.V56.031-1280×800 | Download |
| T.V56.031-1366×768 | Download |
| T.V56.031-1400×1050 | Download |
| T.V56.031-1440×900 | Download |
| T.V56.031-1600×1200 | Download |
| T.V56.031-1600×900 | Download |
| T.V56.031-1680×1050 | Download |
| T.V56.031-1920×1080 | Download |
| T.V56.031-1920×1200 | Download |
| T.V56.031-800×600 | Download |
All files are for 4MB flash memory and work with the M90 general remote control. After downloading, check the RAR file for details to pick the right file for your TV panel.
Factory Service Mode
To enter the factory service mode, type “2580” using your remote or controls. This mode lets you tweak advanced settings or fix problems.
Frequently Asked Questions
Here are answers to questions people often ask:
What does the T.V56.031 do?
It’s a universal controller board that runs LCD and LED TVs, handling display and functions.
Which resolutions does it support?
It supports up to 1920×1080. Check the download list for all options.
How do I pick the right firmware?
Match the firmware to your TV panel’s resolution. Download the correct file from the list.
Will it work with my TV panel?
It fits 7-55″ LVDS screens but not all panels. Confirm your panel’s specs first.
What if the firmware upgrade doesn’t work?
Make sure the USB is FAT32 formatted and the file is named “VST56_4MB.bin.” Try another USB disk if it fails.
Can I use any remote with it?
It supports the M90 general remote control, which works with all listed firmware files.
Additional Notes
- All firmware files are designed for 4MB flash memory.
- The board supports multimedia playback via USB, including audio, video, pictures, and text.
- Double-check your panel’s resolution before downloading to avoid issues.
This post gives you everything you need to use the T.V56.031 board. If you have questions or want to share your experience, leave a comment below!
