Are you searching for the latest firmware for your TP.ATM20.PB819 universal TV motherboard? You’re in the right spot! This post on teckwiki.com gives you everything you need: firmware files, detailed specs, and a simple guide to update your smart LED TV board. Whether you’re a technician or just curious about your TV’s tech, this guide has you covered with clear, useful info.
What is TP.ATM20.PB819?

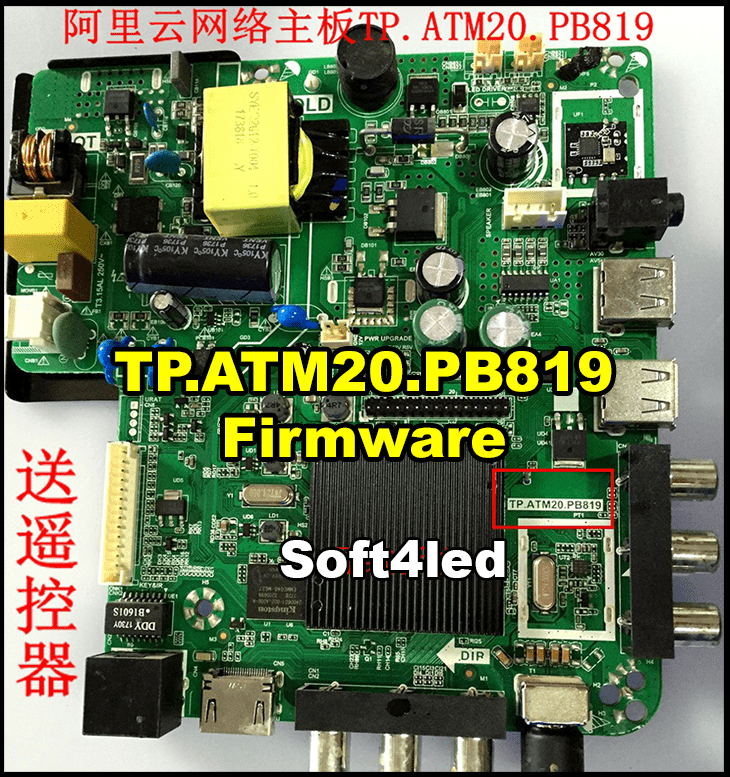

The TP.ATM20.PB819 is a smart LED TV motherboard that runs on Android. It supports full HD resolution (1920×1080) and powers TVs up to 42 inches. This board combines a digital TV tuner, Android features, and network options into one unit, making it great for upgrading or fixing smart TVs. It delivers good graphics and sound, plus plenty of ports for connecting devices.
Quick Facts:
- Resolution: Up to 1920×1080 (FHD)
- Operating System: Android 4.4
- Ports: A/V, USB, HDMI, VGA, LAN/RJ45
- WiFi: Built-in for wireless internet
- Panel Size: Works with 32″ to 42″ LED screens
Features of TP.ATM20.PB819
This board has a lot to offer. Here are its main specs in simple terms:
- Main Chipset: Hi3751ARBCV3200N00
- CPU: A53, runs at 1.2GHz
- GPU: Mali-450, runs at 432MHz
- RAM: 512 MB
- ROM: 4 GB
- Audio Output: 2x8W (two 8-watt speakers)
- Input Voltage: 200-240V AC
- Backlight Voltage/Current:
- 48W 12V/19V 30V-44V/25W (2PIN-2.0+3PIN-2.0 or 2PIN-2.0+2PIN-2.0)
- 48W 12V/24V 45V-63V/25W
- 48W 12V/32V 64V-94V/25W
- Firmware Type: USB updateable, file name like allupgrade_v320_512_refxx.bin
It also has a strong WiFi system and a LAN port for wired internet, so you can stream shows or browse online without trouble.
Why Update the Firmware?
Updating the firmware on your TP.ATM20.PB819 can make your TV better. Here’s why it’s worth doing:
- Better Speed: Updates can make the board run faster.
- Fix Problems: Get rid of bugs or glitches.
- New Options: Add features or improve Android.
- Match Your Screen: Ensure it works with your TV’s panel.
If your TV acts up or you want it to perform at its best, a firmware update can help.
How to Download and Install TP.ATM20.PB819 Firmware
Updating this board is easy since it uses a USB. Follow these steps to do it right:
Step 1: Pick the Right File
- For 1366×768 resolution: Get TP.ATM20.PB819-1366×768-4G-REF35
- For 1920×1080 resolution: Get TP.ATM20.PB819-1920×1080-4G-REF35
Check your TV’s resolution first. Using the wrong file can cause issues.
Step 2: Set Up the USB
- Format a USB drive to FAT32 (a common file system).
- Copy the firmware file to the USB’s main folder, not inside any subfolder.
Step 3: Update the Board
- Turn off the TV board.
- Plug the USB into one of the board’s USB ports.
- Turn the board on. Some models need you to hold the power button—check your TV’s manual.
- Wait a few minutes for the update to finish.
- The TV should restart on its own when done.
Tips to Avoid Trouble:
- Save Your Settings: Back up anything important if you can.
- Don’t Stop It: Keep the power on and USB in until it’s done.
- Double-Check: Match the file to your TV’s resolution.
If the update fails or the TV doesn’t see the USB, try a different USB drive or reformat it.
Available Firmware Files
Here are the files you can download for the TP.ATM20.PB819:
Warning: These files are for technicians. Use them carefully and make sure they fit your TV’s specs.
Common Questions Answered
People often ask these questions about the TP.ATM20.PB819. Here are the answers:
- What TVs work with this board? It supports LED panels from 32″ to 42″ with resolutions up to 1920×1080.
- Can I use it without WiFi? Yes, connect it to the internet with the LAN/RJ45 port instead.
- What if the update doesn’t work? Check the USB, re-download the file, or ask a technician for help.
- Does it support apps? Yes, the Android 4.4 system lets you install apps like YouTube or Netflix.
Fixing Issues After Updating
Sometimes, things go wrong after an update. Here’s how to handle common problems:
- TV Won’t Start: Check the power cord. Unplug it, wait a minute, then plug it back in.
- Blank Screen: Make sure the input is set right and the firmware matches your panel.
- WiFi Fails: Restart the TV and router. Reset network settings if needed.
- Remote Stops: Swap the batteries or pair it again with the TV.
If nothing works, try the update again or get expert help.
Wrap-Up
The TP.ATM20.PB819 is a solid choice for a smart LED TV motherboard. It brings Android features, good sound, and lots of ports to your TV. Updating its firmware keeps it running well and adds new possibilities. Use this guide to download the right file and install it safely.
Be careful with updates—follow the steps and pick the correct file. If you’re not sure, a technician can assist.
Note: These firmware files are shared for support purposes. Use them at your own risk and check they match your TV.
