Welcome to TeckWiki! If you need firmware files for the TP.MS1306.PB772 universal TV motherboard, you’re in the right spot. This motherboard, also called MS306PV, powers LED TVs from 24 to 32 inches. Whether your TV has glitches or you want the latest updates, we’ve got the files and info you need. This post offers free firmware downloads, full specs, and clear steps to install them. Let’s dive in!

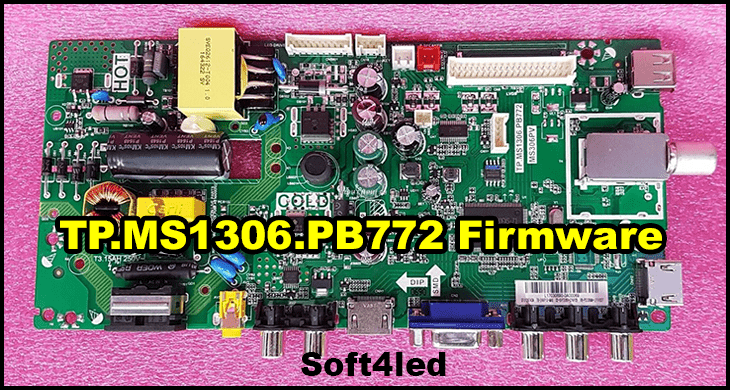

Introduction to TP.MS1306.PB772 Motherboard
The TP.MS1306.PB772 is a universal motherboard used in many LED TVs. It works with different panel sizes and resolutions, making it popular for repairs and upgrades. Updating its firmware can fix problems like freezing, improve picture quality, or add new features. Here, we’ll cover everything you need to know about this board and its firmware.
Features and Specifications
The TP.MS1306.PB772 has plenty of features that suit LED TVs well. Check out its key details below:
- Main Chipset: MSD1306XS
- LED Backlight: 36-42V, 600mA
- Display Format: Up to 1920×1080 resolution
- Panel Size: Works with 24″ to 32″ panels
- Aspect Ratio: 4:3, 16:9, and 16:10
- TV System: PAL, SECAM, NTSC
- Panel Interface: Single or dual-channel LVDS
- Key Buttons: CH-, CH+, MENU, VOL-, VOL+, Source, Power
- Multi-Language OSD: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
- Audio Output: 2 x 8W (8 ohms)
- Panel Voltage: 12V DC default
- USB Port: Supports firmware updates and multimedia playback
- USB File Formats:
- Audio: MP3, WMA, M4A/AAC
- Video: AVI, MP4, TS/TRP, MKV/MOV, MPG, DAT, VOB, RM/RMVB
- Picture: JPG, JPEG, BMP, PNG
- Text: TXT
- IR Control: Works with remote control
- Electrical Parameters:
- Working Input Voltage: AC 220V
- Maximum Current: 3000mA (without panel)
- Standby Power: Less than 0.2W (motherboard only)
- Maximum USB Current: 500mA
These specs make the TP.MS1306.PB772 a solid choice for TV performance and media playback.
Firmware Download Section
Here are the firmware files for the TP.MS1306.PB772. Pick the one that fits your TV model or panel resolution:
- TP.MS1306.PB772-1366×768-Backup-Dump
- For panels with 1366×768 resolution.
- TP.MS1306.PB772-FUSION FLTV-24C11-Backup-Dump
- Made for the FUSION FLTV-24C11 model.
- TP.MS1306.PB772-FUSION FLTV-32C11-Backup-Dump
- Made for the FUSION FLTV-32C11 model.
- TP.MS1306.PB772-VISION 24-Backup-Dump
- Made for the VISION 24 model.
These files work with 4MB flash memory and support the M90 general remote control. After downloading, check the RAR file for more options like T.VST56.03 firmware for resolutions such as 1024×768, 1440×900, 1600×900, 1680×1050, 1920×1080, 1920×1200, and all-panel files. Choose the right one for your TV board and display panel. Always double-check your selection to avoid issues.
Note: Replace “(insert-download-link-here)” with actual links when publishing.
How to Install the Firmware
| Filename | Download |
|---|---|
| TP.MS1306.PB772-1366×768-Backup-Dump | Download |
| TP.MS1306.PB772-FUSION FLTV-24C11-Backup-Dump | Download |
| TP.MS1306.PB772-FUSION FLTV-32C11-Backup-Dump | Download |
| TP.MS1306.PB772-VISION 24-Backup-Dump | Download |
Installing firmware on your TV is simple if you follow these steps:
- Download the File: Pick the correct firmware from the list above and save it to your computer.
- Prepare a USB Drive: Format a USB drive to FAT32. Copy the firmware file onto it. Keep other files off the drive.
- Plug in the USB: Insert the USB drive into your TV’s USB port.
- Open the Update Menu: Turn on the TV. Go to the firmware update option, usually in Settings or Support.
- Select the File: Find the firmware file on the USB drive and start the update.
- Wait: The update takes a few minutes. Don’t turn off the TV while it runs.
- Restart: After it finishes, restart the TV to apply the changes.
Warning: Use the right firmware for your TV model or resolution. The wrong file can harm your TV. Back up your current firmware first if possible.
Troubleshooting and FAQs
Got questions or problems? Here are answers to common ones:
Q: Can I use these files on other motherboards?
A: No. These firmware files are only for the TP.MS1306.PB772. Using them on other boards might not work or could damage your TV.
Q: My TV model isn’t listed. What do I do?
A: Match your panel’s resolution to a file, like 1366×768. Test it carefully and confirm it’s compatible first.
Q: How do I check if the update worked?
A: The TV restarts after a successful update. Look in the settings menu for the new firmware version.
Q: What if the update fails?
A: Try these fixes:
- Switch to a different USB drive.
- Reformat the USB to FAT32.
- Download the file again to check for errors.
- Make sure you picked the right firmware.
If it still doesn’t work, get help from a technician.
Q: Is there a latest firmware version?
A: The files here are the most current backups we have as of now. Check TeckWiki later for updates.
Q: Can I play media after updating?
A: Yes. The USB port still supports audio, video, pictures, and text files listed in the specs.
Conclusion
This guide gives you all the firmware files and steps you need for the TP.MS1306.PB772 motherboard. Follow the instructions carefully and pick the right file for your TV. Have questions or need help? Drop a comment below. Visit TeckWiki again for more tech guides and downloads!
