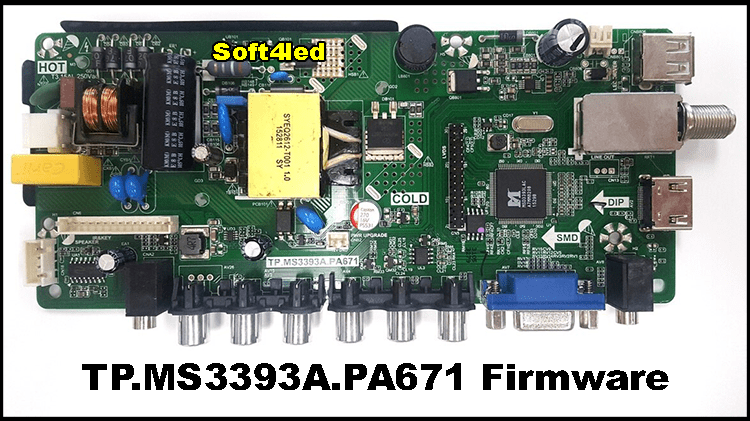

The TP.MS3393A.PA671 is a universal LCD/LED TV motherboard used in brands like DAEWOO, ELEMENT, ATVIO, and POLAROID. It works with 18-24 inch LED panels and supports a maximum resolution of 1920×1080. This combo board includes a power card, backlight driver, and ATV module. It has multiple ports such as USB, HDMI, AV, headphones, and VGA for computer use.
Firmware updates keep your TV running smoothly. They fix issues, improve compatibility, and maintain performance. In this post, we provide free firmware files for the TP.MS3393A.PA671 board and explain how to install them.
Firmware Download
Get the firmware file for the TP.MS3393A.PA671 here:
This file is USB bootable and includes a flash backup dump. It’s designed for technician support and general use. After downloading, you’ll find multiple files in the RAR. Check them to pick the right one for your TV board and panel.
How to Install the Firmware
Updating your TV board firmware is simple if you follow these steps carefully:
- Prepare the USB Drive:
- Download the firmware file from the link above.
- Extract the RAR file to get the firmware (usually a .bin file).
- Format a USB drive to FAT32.
- Copy the firmware file to the USB drive’s root directory.
- Update the TV:
- Plug the USB drive into the TV’s USB port.
- Turn on the TV.
- Open the service menu (check your TV’s manual for the code).
- Find the USB firmware update option.
- Select the file and start the update.
- Wait until it finishes. Do not turn off the TV.
- Finish Up:
- Restart the TV when the update is done.
- Test the TV. Reset to factory settings if needed.
Key Tips:
- Use the correct firmware for your TV model and panel to avoid issues.
- Check that the USB drive is formatted and the file is in the right place.
- Keep the TV powered on during the update.
TP.MS3393A.PA671 Specifications
Here are the main details of the TP.MS3393A.PA671 board:
- Model: TP.MS3393A.PA671
- Main Chipset: MSD3393LAC
- Resolution Supported: Up to 1920×1080
- Flash Memory: 25Q16
- Television System: PAL (BG, DK), SECAM (BG, DK, LL)
- Audio Output Power: 2×6 W (8Ω)
- Power Input: 100 to 240V
Supported Resolutions:
- 1024×768
- 1366×768
- 1440×900
- 1600×900
- 1680×1050
- 1920×1080
- 1920×1200
This board works with M90 general remote controls and 4MB flash memory. The USB port also lets you play multimedia files like videos or music.
Why Update Your TV Firmware?
Updating firmware helps your TV in these ways:
- Fixes bugs that cause glitches.
- Makes the board work better with different panels.
- Keeps the TV running at its best.
Using the firmware file we provide ensures your TP.MS3393A.PA671 stays up to date.
Common Questions
Here are answers to questions readers often have:
What does the TP.MS3393A.PA671 board do?
It’s a motherboard that controls TV functions for various LED models.
How do I check if this firmware fits my TV?
Look at your TV’s manual or board model. If it’s TP.MS3393A.PA671, match the firmware to your panel type.
Is updating firmware risky?
Yes, if you use the wrong file or stop the process. Follow the steps and use the right firmware.
Can I go back to the old firmware?
Yes, if you saved the previous version. Keep a backup before updating.
Final Thoughts
Updating your TP.MS3393A.PA671 firmware is a quick way to improve your TV. With the free file and instructions in this post, you can do it yourself. Make sure to follow the steps and use the correct file for your setup.
