Welcome to teckwiki.com! This post is all about the TP.MS3463S.PA63 universal TV motherboard. If you’re a technician or someone fixing a TV, you’ll find everything you need here. We’re sharing free firmware files and key details about this board to help you get your TV working again.
What is the TP.MS3463S.PA63?

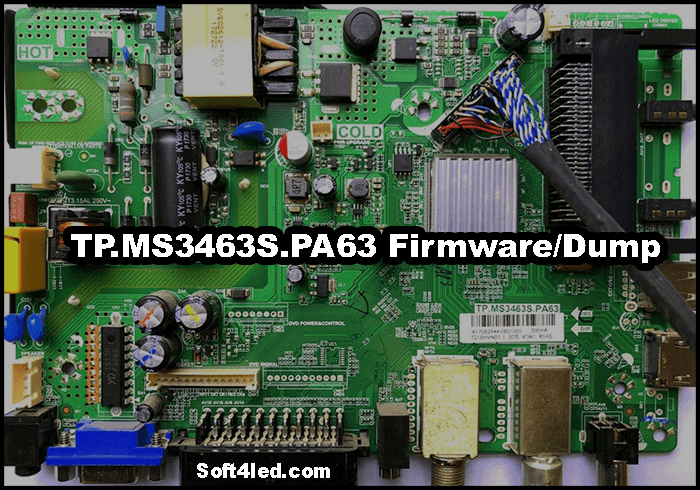

The TP.MS3463S.PA63 is a universal LCD/LED motherboard that works with many TV models. It supports Full HD resolution up to 1920×1080, so you get clear, sharp pictures. This board is special because it’s a combo design. That means it has the main power supply, ATV board, and LED backlight driver all on one single piece. This setup makes repairs and installations simpler.
General Specifications
Here’s a quick look at the TP.MS3463S.PA63 specs:
- Brand/Mark: China Universal
- Model: TP-MS3463S-PA63
- Main Chip: MSD3463
- TV System: PAL, SECAM, NTSC Playback
- Product: LED TV
- Input Voltage: 220V AC
- Backlight Voltage: 45V
- Max Backlight Wattage: 108-138W
- Backlight Current: 300-450mA
- Resolution: Up to 1920×1080
- Flash Size: 8MB
- Audio: TPA3110LD2
- Tuner: XF-3SDT-H (R840)
These details help you confirm if this board fits your TV.
How to Access the Service Menu
Need to tweak settings? Here’s how to open the service menu:
- Grab your remote control.
- Press the “Source” button.
- Enter the code: 2-5-8-0.
This unlocks options to adjust your TV’s setup. Be careful with changes, and note what you adjust.
Free Firmware Files for TP.MS3463S.PA63
We’re making it easy for you by providing all firmware files for free. These files work with 4MB Flash Memory and the M90 General Remote Control. After downloading, you’ll get a RAR file with multiple options. Pick the one that matches your TV board and display panel.
Here’s the list of available firmware files:
- TP.MS3463S.PA63-SAMSONIC SE24LED82S-Dump
- T.VST56.03-1024×768
- T.VST56.03-1366×768
- T.VST56.03-1440×900
- T.VST56.03-1600×900
- T.VST56.03-1680×1050
- T.VST56.03-1920×1080
- T.VST56.03-1920×1200
- T-VST56-03-All-Panel-Files
Click the links to download. Check the RAR file for more details on each option.
How to Update Your Firmware
Updating your TV’s firmware is straightforward. Follow these steps:
- Download the firmware file that fits your TV.
- Extract the RAR file to see the options.
- Pick the right file for your board and panel.
- Follow the instructions in the download to update.
This can fix issues like a blank screen or no power.
Troubleshooting Tips
Facing problems? Try these quick fixes:
- TV Won’t Turn On: Check the backlight voltage (45V) and current (300-450mA). Make sure they match your panel’s needs.
- Picture Issues: Update the firmware with the correct resolution file.
- Remote Not Working: Confirm you’re using the M90 General Remote Control, which these files support.
These tips can save you time during repairs.
Common Questions Answered
Here are answers to questions people often ask:
How Do I Update Firmware on TP.MS3463S.PA63?
Download the file, extract it, and follow the steps included. It’s that simple.
Filename | Download |
---|---|
TP.MS3463S.PA63-Dreamax-DM24M10C-Dump | Download |
TP.MS3463S.PA63-ERISSON 22LES76T2-Dump | Download |
TP.MS3463S.PA63-OK. OLE 22570-B | Download |
TP.MS3463S.PA63-SAMSONIC SE24LED82S-Dump | Download |
Which TVs Work with This Board?
It’s a universal board, so it fits many models. Check your TV’s resolution (up to 1920×1080) and panel specs to be sure.
Where Can I Find the Service Menu Code?
Use “Source” then 2-5-8-0. It’s listed above too!
Why Choose TP.MS3463S.PA63?
This board is a solid pick for TV repairs. Its combo design cuts down on parts, and the free firmware files here keep it running smoothly. As of June 1, 2025, these files are current and ready for your use.
Final Thoughts
At teckwiki.com, we’re here to help with your tech projects. This guide to the TP.MS3463S.PA63 gives you the specs, firmware, and tips you need. Download the files, follow the steps, and get your TV back in action. Have questions? Drop a comment below—we’d love to assist!
