Looking for firmware files for the TP.MS3463S.PB782 universal TV motherboard? You’re in the right spot! This post gives you everything you need: firmware downloads, specifications, and instructions. It’s perfect for technicians and TV owners who want to repair or update their devices. Let’s get started with all the details about this universal TV board.What is the TP.MS3463S.PB782 Motherboard?

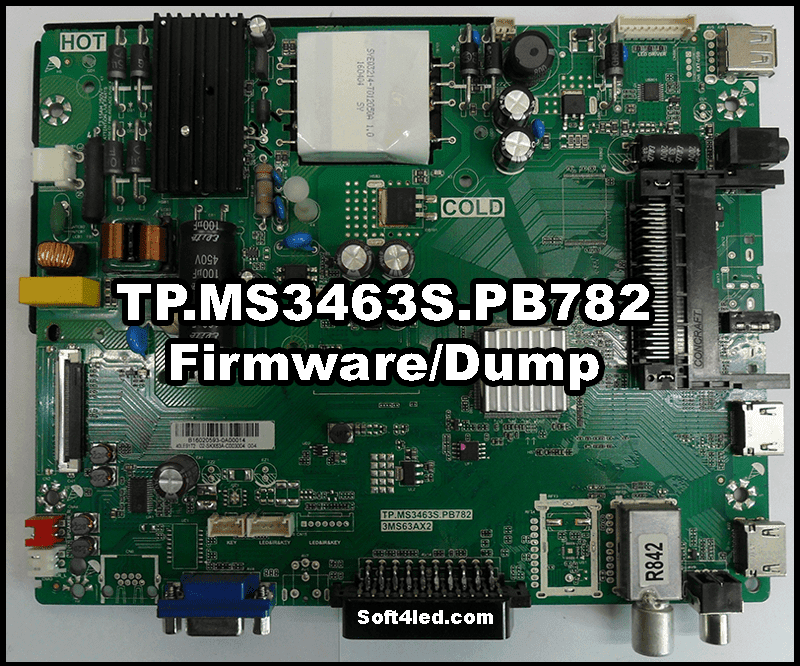

The TP.MS3463S.PB782 is a universal LCD/LED TV motherboard that works with many TV models. It’s a combo board, which means it has the main power supply, ATV (Analog TV) board, and LED backlight driver all built into one circuit board. This setup makes it simpler to use and fix TVs.
Key Features and Specifications
Here’s what you need to know about the TP.MS3463S.PB782:
- Brand/Mark: China Universal
- Model: TP-MS3463S-PB782 3MS63AX2
- Main Chip: MSD3463
- TV System: PAL/SECAM/NTSC PLAYBACK
- Product: LED TV
- Input Voltage: 220V AC
- Max Backlight Watt: 65-75w
- Backlight Current: 280mA to 350mA
- Resolution: Up to 1920×1080
- Flash Size: 8 MB
- Audio: TPA3110LD2
- Tuner: XF-3SDT-H (R840)
This board supports Full HD resolution (1920×1080), making it great for sharp, clear pictures. The tuner picks up analog TV signals, and the audio chip delivers good sound.
Firmware Download and Installation Guide
We provide free firmware files for the TP.MS3463S.PB782 motherboard. These files help technicians fix or update TVs.
| Filename | Download |
|---|---|
| TP.MS3463S.PB782-TELEFUNKEN TF-LED32S20T2 | Download |
| TP.MS3463S.PB782-Telefunken-TF-LED32S20T2 | Download |
| TP.MS3463S.PB782-Vivax-32LE90T2 | Download |
| TP.MS3463S.PB782-Vivax-TV32LE91T2 | Download |
- Specific File: Download TP.MS3463S.PB782-Vivax-TV32LE91T2
Inside the download, you’ll find multiple files. Check the RAR file after downloading to pick the right T.VST56.03 firmware for your TV board and display panel.
How to Install the Firmware:
- Download the firmware file that matches your TV model.
- Extract the files if they’re in a compressed folder.
- Copy the firmware file to a USB flash drive.
- Plug the USB drive into your TV’s USB port.
- Go to the service menu (see below) and choose the update option.
- Follow the TV’s on-screen steps to finish.
Note: Installing firmware needs some technical skills. If you’re not sure, ask a professional for help.
Compatibility and Supported Resolutions
The TP.MS3463S.PB782 works with many TV models because it’s a universal board. Make sure the firmware fits your TV’s panel type for the best results.
Supported Resolutions:
- 1024×768
- 1366×768
- 1440×900
- 1600×900
- 1680×1050
- 1920×1080
- 1920×1200
All files are M90 (works with general remote controls) and fit 4MB flash memory. More details are in the RAR file after you download it.
How to Access the Service Menu
The service menu lets you tweak settings or update the firmware. Here’s how to get in:
- Turn on your TV.
- Press the “Source” button on your remote.
- Type the code “2-5-8-0” with the number keys.
- The service menu will pop up on the screen.
Be careful in the service menu. Changing the wrong settings can mess up your TV.
Frequently Asked Questions
Q: How do I check if this firmware fits my TV?
A: Look at your TV’s model number and panel type. Match them with the firmware file name, like TP.MS3463S.PB782-Vivax-TV32LE91T2. If they line up, it should work.
Q: What does a combo board do?
A: A combo board puts the power supply, TV tuner, and backlight driver on one board. It makes the TV’s insides less complicated.
Q: Is it safe to install firmware myself?
A: If you know how to handle TV repairs, go for it. If not, get a technician to do it.
Q: Why update my TV’s firmware?
A: Updating firmware can fix problems, improve performance, or add new features to your TV.
Conclusion
The TP.MS3463S.PB782 universal TV motherboard is a solid choice for LCD/LED TVs. Its combo design and Full HD support make it a go-to for repairs and upgrades. With free firmware files and this guide, you have what you need to keep your TV running smoothly. Download the files, follow the steps, and reach out to a pro if you’re unsure. Your TV deserves the best care!
