Welcome to teckwiki.com! Today, we’re covering everything you need to know about the TP.MS3663S.PC821 universal TV motherboard. This post includes free firmware files for download, key details about the motherboard, and a simple guide to installing the firmware. Whether you’re a technician or a TV owner, you’ll find all the information you need right here.
The TP.MS3663S.PC821 is a popular choice for LED TVs. It supports multiple LCD/LED panels and offers solid features like Full HD resolution, Dolby Sound, and plenty of connectivity options. Let’s break it down step by step.

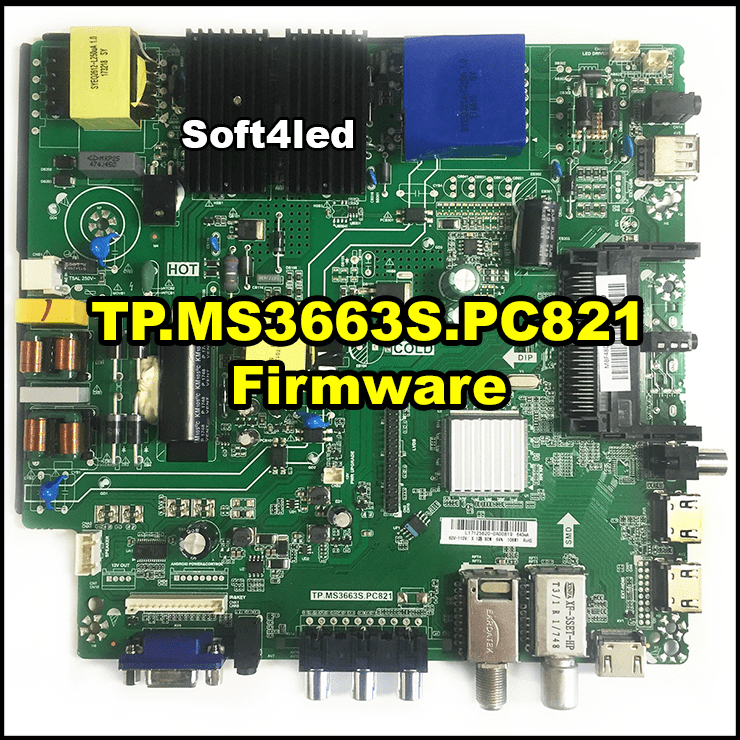

What is the TP.MS3663S.PC821 Motherboard?
The TP.MS3663S.PC821 is a universal motherboard designed for non-smart LED TVs. It’s a combo HD and FHD DVB board, meaning it works with a wide range of screen sizes and resolutions. Built with the MSD3663LU chipset, this China Universal board is reliable and packed with useful features.
Here are the key specifications:
- Brand: China Universal
- Model: TP.MS3663S.PC821
- Main Chipset: MSD3663LU
- Product: LED TV
- Resolution: Up to 1920×1080 (Full HD)
- Panel Size: 42 to 55 inches
- Backlight: 60V-110V, 80W, 640mA
- HDMI Ports: 3 (for set-top boxes, Blu-Ray players, gaming consoles)
- USB Ports: 1 (for hard drives and multimedia playback)
- VGA Port: Yes
- Component Input: Yes
- Tuners: 2
- Scart: No
- Sound: Dolby Sound system with 16W output
- DTS Studio Sound™: Yes
- Audio Outputs: Analog AV Out, Digital SPDIF
- Service Code: 8899
- Firmware Type: Backup Dump
This motherboard also supports a 50/60 Hz refresh rate and a smooth motion rate of 200 SMR. Plus, it offers HDR display viewing for better picture quality. It’s a solid option for anyone looking to repair or upgrade their LED TV.
Why Firmware Matters
Firmware is the software that runs your TV motherboard. It controls how the hardware works and ensures your TV displays images and sound correctly. If your TV has issues like a blank screen or sound problems, updating the firmware might fix it. The right firmware file must match your TV’s panel and resolution for everything to work properly.
In this post, we’re providing free firmware files for the TP.MS3663S.PC821. These files support multiple resolutions and are compatible with 4MB flash memory. Let’s look at what’s available.
Available Firmware Files for TP.MS3663S.PC821
We’ve gathered all the firmware files you might need for the TP.MS3663S.PC821 motherboard. These files are part of the T.VST56.03 series and work with the M90 general remote control. After downloading the RAR file, you’ll see multiple options inside. Pick the one that matches your TV’s board and display panel.
Here’s the list of available resolutions:
- T.VST56.03-1024×768
- T.VST56.03-1366×768
- T.VST56.03-1440×900
- T.VST56.03-1600×900
- T.VST56.03-1680×1050
- T.VST56.03-1920×1080 (most common)
- T.VST56.03-1920×1200
- T-VST56-03-All-Panel-Files (includes all resolutions)
You can also download a specific dump file:
| Filename | Download |
|---|---|
| TP.MS3663S.PC821-1920×1080-DEXP-Dump | Download |
How to Download and Install Firmware
Not sure how to update your TV’s firmware? Follow these simple steps. If you’re new to this, don’t worry—we’ve kept it straightforward. But if you’re unsure, ask a technician for help to avoid mistakes.
Steps to Download:
- Click the download link above.
- Save the RAR file to your computer.
- Open the RAR file to see all the firmware options.
- Choose the file that matches your TV’s resolution and panel.
Steps to Install:
- Copy the selected firmware file to a USB drive.
- Plug the USB drive into your TV’s USB port.
- Turn on your TV.
- Press the “Menu” button on your remote.
- Go to “Settings” and find “System Update.”
- Select “USB Update” and follow the instructions on the screen.
- Wait for the update to finish, then restart your TV.
Important: Installing firmware can be tricky. If it’s done wrong, your TV might stop working. Double-check your file choice and consider professional help if needed.
Frequently Asked Questions
Here are answers to common questions about the TP.MS3663S.PC821 motherboard and its firmware.
What does the TP.MS3663S.PC821 motherboard do?
It’s a universal board for LED TVs. It supports various panels and includes features like HDMI ports, USB playback, and Dolby Sound.
Which resolutions are supported?
It supports 1024×768, 1366×768, 1440×900, 1600×900, 1680×1050, 1920×1080, and 1920×1200.
Where can I download the firmware?
You can get all the files for free from the link in this post on teckwiki.com.
Can I install the firmware myself?
Yes, if you follow the steps carefully. But if you’re not confident, a technician can do it for you.
Related Searches You Might Find Helpful
Based on what people often look for, here are some topics we’ve covered:
- TP.MS3663S.PC821 firmware download
- TP.MS3663S.PC821 motherboard specs
- How to install firmware on TP.MS3663S.PC821
- TP.MS3663S.PC821 supported panels
- TP.MS3663S.PC821 resolution options
If you’re searching for any of these, you’re in the right place!
Final Thoughts
The TP.MS3663S.PC821 is a reliable universal motherboard for LED TVs. With support for panels from 42 to 55 inches, Full HD resolution, and features like Dolby Sound and multiple HDMI ports, it’s a great choice for repairs or upgrades. The free firmware files in this post make it easy to keepあなたの TV running smoothly.
