TP.MT5505.PB801 Firmware Download (All Resolutions)

Need firmware for your TP.MT5505.PB801 universal TV motherboard? You’re in the right spot. This post gives you free access to the firmware file for this board. It also explains what this motherboard does and how to update it. Keep reading for all the details you need.

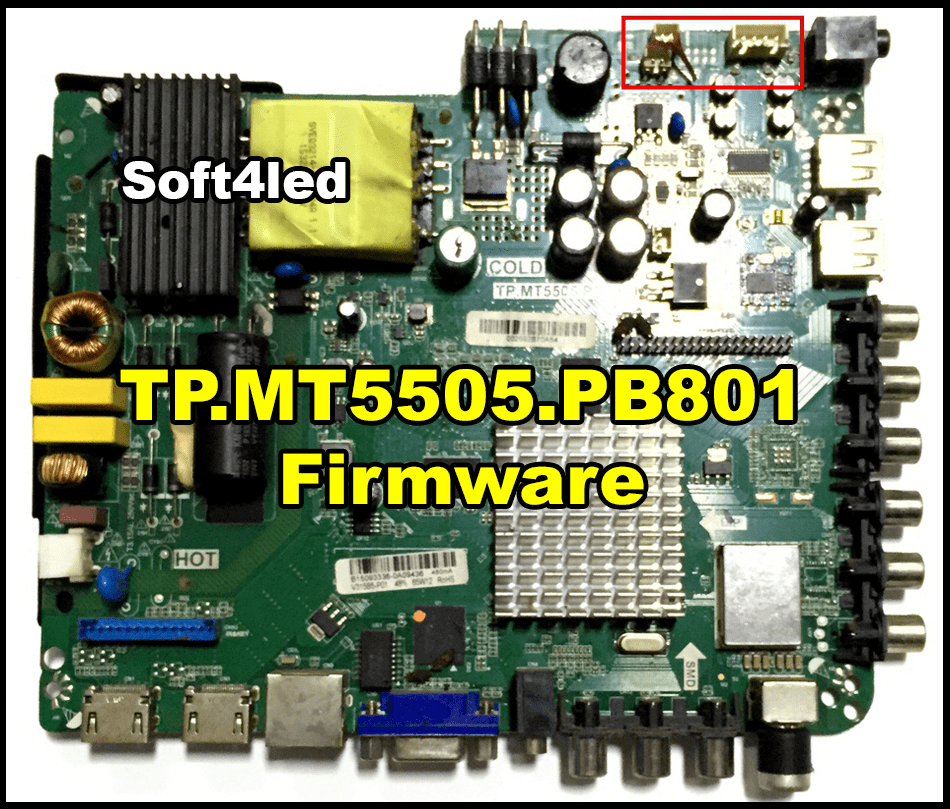

What is the TP.MT5505.PB801?

The TP.MT5505.PB801 is a universal driver board for LED TVs. It works with screens from 32 to 46 inches and supports Full HD resolution (1920×1080). This board runs on Android 4.4, bringing smart TV features to your screen. It’s built for high-speed networking with strong WiFi and a LAN/RJ45 Ethernet port for wired internet.

This motherboard is a combo unit. It includes the ATV, backlight driver, and power supply module all in one. It delivers clear video and sound, with a fast response rate. Here are its main specs:

• CPU: 4-core A7 at 1.2 GHz
• GPU: Mali400*2 at 500 MHz
• RAM: 512 MB DDR SD-RAM
• ROM: 4 GB eMMC
• Backlight Power: 36V-94V / 75W
• Audio Output: 2x8W
• Ports: A/V, USB, HDMI, VGA, headphones, LAN/RJ45
• Resolution: Up to 1920×1080
• Panel Power: 12V
• Power Input: 100-240V AC
• Service Code: Menu + 1147

This board suits anyone wanting a reliable smart TV setup with multiple connection options.

Why Update Your Firmware?

Updating the firmware on your TP.MT5505.PB801 can solve problems and improve your TV. Here’s why you might need it:

• Fix Issues: Updates can correct glitches or errors in your TV’s system.
• Better Performance: New firmware can make your TV run smoother and faster.
• New Features: Some updates add extra functions to your TV.
• Compatibility: If you’ve changed the screen or parts, firmware ensures everything works together.

Always back up your TV settings before starting an update. Check that the firmware matches your board to avoid trouble.

Download the Firmware

Get the TP.MT5505.PB801 firmware file here for free. This file works with screens from 32 to 46 inches and supports resolutions up to 1920×1080. The specific file available is:

This firmware adjusts to your TV’s panel resolution, so it should cover most setups for this board. Download it and follow the steps below to install it. Be sure it’s the right file for your TV before proceeding.

Note: Wrong firmware or a failed update can harm your TV. Double-check compatibility and follow instructions carefully.

How to Install the Firmware

Installing firmware on the TP.MT5505.PB801 is simple if you follow these steps:

1. Download the File: Click the link above to save the firmware.
2. Set Up a USB Drive: Format a USB drive to FAT32. Copy the firmware file to the root folder (not inside any subfolder).
3. Plug In the USB: Turn off your TV. Insert the USB drive into a USB port on the TV.
4. Access the Service Menu: Turn on the TV. Press Menu + 1147 on your remote to enter the service menu.
5. Start the Update: Find the firmware update option in the menu. Select it. The TV will find the file on the USB and start updating.
6. Wait It Out: Don’t turn off the TV during the update. Let it finish, and the TV will restart.
7. Check the Update: After restarting, go to settings to confirm the new firmware version.

Warning: If the update stops midway or you use the wrong file, your TV could stop working. Be cautious and patient.

Common Questions Answered

Here are answers to questions people often have, based on what others search for:

• What does a universal TV motherboard do? It controls the TV’s display, sound, and features like smart apps or internet.
• Can I use this firmware for other boards? No, this is only for the TP.MT5505.PB801. Other boards like T.VST56.03 need different files.
• How do I know if my TV needs an update? Look for slow performance, glitches, or missing features. Check your current firmware version in settings.

If you’re unsure, reach out for help before updating.

Final Thoughts

The TP.MT5505.PB801 is a solid choice for smart TVs, offering Full HD and plenty of ports. Updating its firmware keeps it running well and up to date. This post gives you the file and steps to do it yourself. Have questions or need support? Contact us anytime. Download your firmware today and get your TV back to its best.
