Need to update your TV’s firmware? This guide covers everything you need to know about the TP.RD8503.PB802 universal TV motherboard and its firmware files. We’ll walk you through the details, show you how to upgrade, and provide free download links. Whether you’re fixing a problem or improving your TV, this post has you covered.

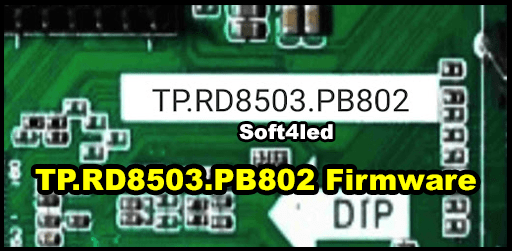

What is the TP.RD8503.PB802 Motherboard?
The TP.RD8503.PB802 is a three-in-one LCD driver board designed for LED TVs. It supports screen resolutions up to 1920×1080 (Full HD) and works with panel sizes from 26 to 42 inches. This universal motherboard comes with many connection options, making it a solid choice for TV upgrades. Here’s what it offers:
- Dual AV inputs
- Dual HDMI ports
- Dual USB ports
- VGA connectivity
- RF input for TV signals
- PC audio input
The USB ports can play multimedia files and handle firmware upgrades. The audio output delivers 2 x 5 watts at 8 ohms, and the panel voltage is set to 12V by default (5V is also supported).
Key Specifications
Here are the main details of the TP.RD8503.PB802:
- Model: TP.RD8503.PB802 (Combo Board)
- Main Chipset: RDA8503
- Display Format: Up to 1920×1080 FHD
- Aspect Ratio: 4:3, 16:9, 16:10
- TV System: PAL, SECAM, NTSC
- Panel Interface: Single or dual-channel LVDS
- Key Buttons: CH-, CH+, MENU, VOL-, VOL+, Source, Power
- OSD Language: Multi-language support
Electrical Parameters
- Input Voltage: AC 230V
- Maximum Current: 3000mA (without panel)
- Standby Power: Less than 0.2W
- USB Current: Up to 500mA
Understanding Firmware and Its Importance
Firmware is the software that controls your TV motherboard. It manages how the TV works, from displaying images to handling inputs. Updating the firmware can fix issues, boost performance, and sometimes add new features. For the TP.RD8503.PB802, using the right firmware file based on your TV’s resolution is key to keeping it running smoothly.
How to Upgrade TP.RD8503.PB802 Firmware
Upgrading the firmware is simple if you follow these steps carefully. Here’s how to do it:
- Format a USB disk to FAT32.
- Download the firmware file for your TV’s resolution (links below).
- Extract the downloaded file and copy the .bin file (SKR8503_00.bin) to the USB disk.
- Plug the USB disk into the motherboard’s USB port.
- Connect the keypad and IR receiver to the board.
- Turn on the power and watch the keyboard light. If it flashes, the upgrade is running. Wait until it stops flashing to finish.
- If the light doesn’t flash, unplug the power, reattach the USB, and try again.
Warning: Keep the power on during the upgrade. Turning it off can harm the motherboard.
Accessing Factory Service Mode
You can enter the factory service mode by pressing “Menu+1147” on your remote. This mode lets you adjust advanced settings, but it’s risky if you’re not sure what to change. If you’re not experienced, ask a technician for help.
Which Firmware File Should You Use?
The TP.RD8503.PB802 supports different resolutions, and you need the right firmware for your TV. Check your TV’s resolution in its settings or manual. The two main options are:
- 1366×768: For HD-ready screens
- 1920×1080: For Full HD screens
If you’re unsure, reach out to your TV’s manufacturer or a professional. Using the wrong file might cause display problems.
Why Update Your Firmware?
Updating the firmware can improve your TV in several ways:
- Fixes bugs or glitches
- Makes the TV run faster
- Adds new features
- Keeps it compatible with modern devices
A quick upgrade can breathe new life into your TV without needing a replacement.
Free Firmware Download Links
Download the correct firmware file for your TP.RD8503.PB802 motherboard here:
After downloading, extract the file to find the .bin file (SKR8503_00.bin). Copy it to your USB disk as explained in the upgrade steps. Want a video guide? Click here for more details on the process.
Note: This post focuses on TP.RD8503.PB802 firmware. Files like T.VST56.03 are for different boards and not covered here.
Tips for a Smooth Upgrade
- Use a good-quality USB disk to avoid errors.
- Save your TV’s current settings before starting.
- If something goes wrong, stop and get help from a technician.
Will This Work With My TV?
The TP.RD8503.PB802 is a universal board, so it fits many TV models with matching specs (like resolution and panel type). Check your TV’s manual or ask the manufacturer to confirm compatibility before upgrading.
Conclusion
This guide gives you all the tools to update your TP.RD8503.PB802 motherboard firmware. With its wide range of features and free firmware files, you can keep your TV running at its best. Download the files, follow the steps, and enjoy a better viewing experience. Have questions? Drop a comment below—we’re here to help!
Download Link:
