Welcome to teckwiki.com! Today, we’re diving into the TP.RD8503.PB816 universal TV motherboard. This board is a favorite among technicians and TV repair fans. It supports Full HD resolution up to 1920×1080 and offers plenty of connectivity options. In this post, you’ll get free access to all firmware files for this motherboard. Plus, we’ll walk you through choosing and installing the right firmware for your TV.
What is the TP.RD8503.PB816 Motherboard?

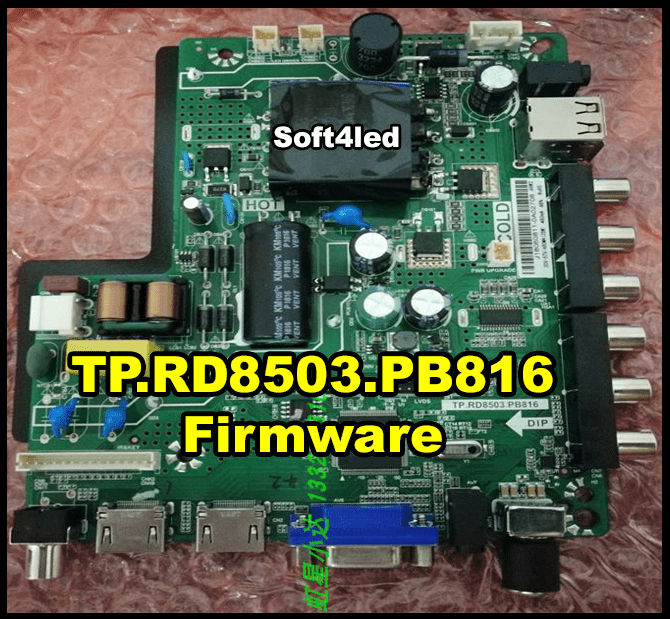

The TP.RD8503.PB816 is a universal LED TV board. It’s a combo board, meaning it packs three modules into one: a power supply, an ATV module, and a backlight driver. This all-in-one design saves space and makes repairs easier. It works with TV panels from 26″ to 50″ and supports resolutions up to 1920×1200. With ports like HDMI, VGA, AV, RF, and USB, it meets most user needs for multimedia and software updates.
General Specifications
Here’s a quick look at the TP.RD8503.PB816’s key details:
- Brand/Mark: CXEL/China Universal
- Model: TP.RD8503.PB816
- Main Chipset: RDA8503
- Product: LED TV Driver Board
- Resolution: Up to 1920×1200
- Panel Size: 26″ to 50″
- Panel Voltage: 12V
- Input Supply: 220V AC
- Backlight: 45-65V 35w, 66V-94V 45w
- Speaker Output: 2x5W
- Service Code: Menu+1147
These specs make it a solid choice for many LED TVs.
Why Firmware Matters
Firmware is the software that runs your TV’s motherboard. It tells the hardware how to work. Updating it can fix problems, boost performance, or add features. For the TP.RD8503.PB816, picking the right firmware is key. It must match your TV’s panel type and resolution to avoid issues.
Available Firmware Files
We’ve got you covered with these free firmware downloads for the TP.RD8503.PB816:
| Filename | Download |
|---|---|
| TP.RD8503.PB816-General-1366×768 | Download |
| TP.RD8503.PB816-General-1920×1080 | Download |
| TP.RD8503.PB816-Samsung-1366×768 | Download |
| TP.RD8503.PB816-Samsung-1920×1080 | Download |
Pick the file that fits your TV’s resolution and panel brand. Not sure which one you need? Check your TV manual or ask a technician.
How to Install Firmware on TP.RD8503.PB816
Updating your firmware is straightforward. Follow these steps:
- Download the right firmware file from the links above.
- If it’s compressed, extract the file.
- Copy the firmware to a USB drive.
- Plug the USB drive into your TV’s USB port.
- Turn on the TV and open the service menu with Menu+1147.
- Find the firmware update option.
- Select the file from your USB drive.
- Follow the on-screen steps to finish the update.
- Restart your TV when done.
Tip: Keep the TV plugged into a steady power source during the update. This prevents interruptions.
Common Questions Answered
What does the TP.RD8503.PB816 do?
It’s a universal LED TV board that combines power, ATV, and backlight functions. It supports panels from 26″ to 50″ and resolutions up to 1920×1200.
How do I pick the right firmware?
Look at your TV’s resolution (like 1366×768 or 1920×1080) and panel type (General or Samsung). Match those to the firmware file.
Will this firmware work on other boards?
No. These files are made just for the TP.RD8503.PB816.
What if my TV won’t start after the update?
Try resetting it or reinstalling the firmware. If it still doesn’t work, get help from a technician.
Is it safe to update firmware myself?
Yes, as long as you use the correct file and follow the steps carefully.
Wrapping Up
We hope this post makes updating your TP.RD8503.PB816 motherboard simple and clear. Choose the firmware that matches your TV’s specs for the best results. Need more help? Drop a comment below. Stick around teckwiki.com for more tech guides and updates!
