TP.S506.PB801 Firmware Free Download (All Resolutions)

If you have a TV with the TP.S506.PB801 motherboard, you might need its firmware to fix issues or improve how it works. This universal TV control board is common in LCD/LED TVs in Asia Pacific and Middle East markets. It supports panels from 24 to 42 inches with resolutions up to 1920×1080. In this post, you’ll find free firmware files for download, plus details about the board and steps to update it.

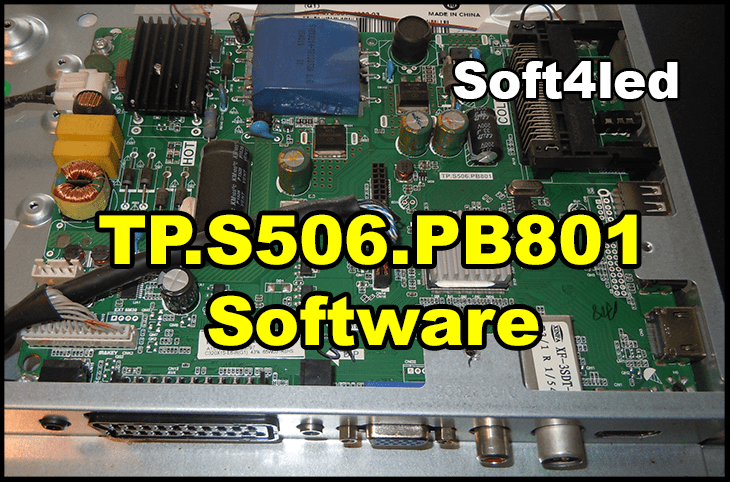

What is the TP.S506.PB801 Motherboard?

The TP.S506.PB801 is a TV control board made in China. It’s built for analog LCD/LED TVs and works with both Non-HD and Full HD screens. This board supports widescreen displays and offers multi-language options. It’s a popular choice for TVs because it handles various panel sizes and includes useful features like USB playback and firmware upgrades.

Key Features and Specifications

Here’s what the TP.S506.PB801 motherboard can do:

• Panel Support: Works with 24-inch to 42-inch LED panels, up to 1920×1080 resolution.
• Panel Interface: Single-channel or dual-channel LVDS.
• Input/Output Ports:
  • HDMI (1.4)
  • VGA
  • AV
  • USB (for firmware updates and multimedia playback)
  • RF TV interface
  • Earphone Out
• Audio Output: 2 x 8 Watt (8 ohms).
• Panel Voltage: +5V, +12V, or +3.3V DC (set by jumper).
• Special Features: Mini AV, Scart, and VGA connectivity.
• Multi-Language: Yes.
• Key Buttons: CH-, CH+, MENU, VOL-, VOL+, Source, Power.
• IR Control: Works with a remote.

Electrical Details

• Input Voltage: AC220 Volt.
• Maximum Current: 5000mA (without panel).
• Standby Power: Less than 0.5W.
• USB Current: Up to 500mA.

Why Update Your TV Firmware?

Firmware is the software that runs your TV’s hardware. Updating it can solve problems like a blank screen, no sound, or slow performance. It might also add new features or make your TV work better with different panels. For the TP.S506.PB801, a firmware update can keep your TV running smoothly.

Download TP.S506.PB801 Firmware

We’ve gathered all the firmware files you need for the TP.S506.PB801 board. These files work with 4MB flash memory and support resolutions like 1024×768, 1366×768, 1440×900, 1600×900, 1680×1050, 1920×1080, and 1920×1200. They’re compatible with M90 general remote controls. After downloading, check the RAR file for multiple options and pick the one that matches your TV and panel.

Download Links

Tip: Read the file details in the RAR archive to find the right firmware for your setup.

How to Install the Firmware

Updating your TV’s firmware is simple if you follow these steps. Be careful to avoid mistakes.

1. Get a USB Drive: Format it to FAT32, then copy the firmware file onto it.
2. Plug It In: Insert the USB drive into your TV’s USB port.
3. Find the Update Menu: Use your remote to go to the firmware update option (check your TV manual for details).
4. Start the Update: Choose the file from the USB and follow the TV’s instructions.
5. Wait: Don’t turn off the TV until the update finishes.
6. Restart: Turn your TV off and on again to use the new firmware.

Warning: Using the wrong firmware or interrupting the update can harm your TV. Double-check your file and steps. If unsure, ask a technician for help.

Troubleshooting Common TV Problems

If your TV isn’t working right, a firmware update might fix it. Here are some issues and solutions:

• TV Won’t Turn On: Check the power supply or adjust the panel voltage jumper.
• Bad Colors or No Picture: Make sure the firmware matches your panel’s resolution.
• No Sound: Confirm the audio settings and speaker connections.

For more help, look at your TV manual or contact support.

Final Thoughts

Updating your TP.S506.PB801 firmware can improve your TV’s performance and fix common issues. With the free files here, you have what you need to get started. Download the right one, follow the steps, and enjoy a better TV experience.
