Welcome to teckwiki.com! Today, we are providing the TP.S512.P66 QT526HP All Firmware for free download. This universal TV motherboard supports LED screens from 32 to 55 inches. It is a combo board, combining the satellite TV RF tuner, backlight driver module, and power supply into one PCB. This design makes it simple to connect to an LED screen and set up a TV. In this post, we will cover its features, specifications, how to download and install the firmware, troubleshooting tips, and compatibility with different TV models.
Introduction to TP.S512.P66 QT526HP Motherboard

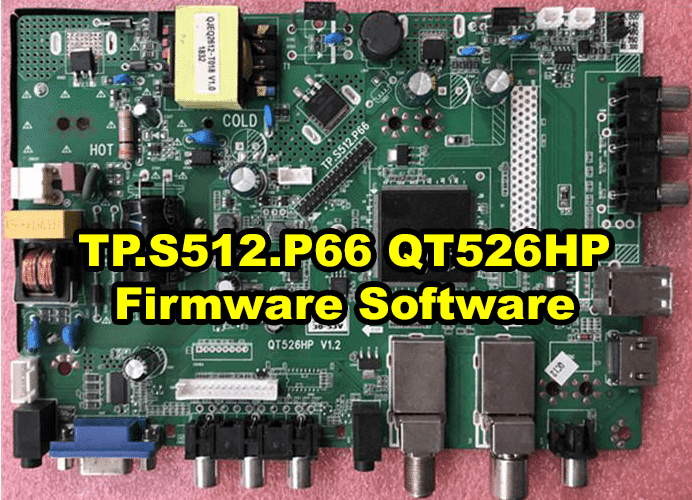

The TP.S512.P66 QT526HP V1.2 is a three-in-one triple board built for LED TVs. It works well with screens from 32 to 55 inches and supports HD and Full HD panels. The board delivers clear images and strong sound through its 16Watt double speakers. As a combo board, it combines key components into one unit, making it a practical choice for TV repairs or custom builds.
Key Features and Specifications
Here are the main features of the TP.S512.P66 QT526HP V1.2:
- Works with LED screens from 32 to 55 inches
- Provides clear images and sound with 16Watt double speakers
- Combo board design for simple setup
- Offers multiple input and output options
Let’s break down the detailed specifications.
General Specifications
- Brand/Mark: China Universal
- Model: TP.S512.P66 QT526HP V1.2
- CPU: S2TEK S2T512
- Flash: 8Mb (64 mb)
- Resolution: 1920×1080
- Board Type: Combo
- LED Driver: OB3350CP
- Backlight Volt: 30-43V
- Backlight Current: 300mA to 600mA (adjustable with jumper setting)
- Aspect Ratio: 16:9
- Sound Output: 8 W
- Power Supply: 100-240V 50/60Hz
- Power Consumption: 60 Watts
- Power Consumption in Standby Mode: 0.5 Watts
Input and Output Interfaces
- Dual RF tuner input for satellite TV
- RCA and RGB input for analog devices
- SC card reader input slot
- VGA with audio jack for PCs and laptops
- Double USB inputs for media playback and firmware updates
- One HDMI input for Full HD devices
- Headphones output jack
These features and specs make the TP.S512.P66 QT526HP V1.2 a flexible option for many TV setups.
How to Download and Install the Firmware
Updating the firmware can improve your TV’s performance and fix issues. Here’s how to download and install the TP.S512.P66 QT526HP V1.2 firmware.
Download Link
You can get the firmware file here: Download TP.S512.P66-QT526HP V1.2-KGH 32K5-Backup-Dump
| Filename | Download |
|---|---|
| TP.S512.P66-QT526HP V1.2-1366×768-Backup-Dump | Download |
| TP.S512.P66-QT526HP V1.2-1920×1080-Backup-Dump | Download |
| TP.S512.P66-QT526HP V1.2-KGH 32K5-Backup-Dump | Download |
Installation Guide
Before you begin, you will need:
- A USB flash drive formatted to FAT32
- The downloaded firmware file
Follow these steps:
- Copy the firmware file to the root directory of your USB flash drive.
- Turn off your TV and unplug it from the power source.
- Plug the USB flash drive into one of the USB ports on the motherboard.
- Plug in the TV and turn it on.
- The TV should find the firmware file and start the update automatically.
- Wait for the update to finish. Do not turn off the TV during this step.
- The TV will restart on its own when the update is done.
If you run into problems, check the troubleshooting section below.
Troubleshooting Common Issues
Here are some common issues and solutions:
- TV won’t turn on after update: Check the power connection. If it still doesn’t work, unplug the TV for 10 minutes, then plug it back in.
- No signal from devices: Make sure devices are plugged into the right ports and cables are not broken.
- Bad picture quality: Adjust the backlight settings with the jumper. Check the user manual for details.
- Firmware update doesn’t work: Confirm the USB is FAT32 and the file is in the root directory. Try a different USB if needed.
For more help, leave a comment below or contact our support team.
Compatibility with Different TV Models
The TP.S512.P66 QT526HP V1.2 works with LED screens from 32 to 55 inches. It supports resolutions like:
- 1024×768
- 1366×768
- 1440×900
- 1600×900
- 1680×1050
- 1920×1080
- 1920×1200
This makes it a good fit for HD and Full HD TVs. It also supports hard disks up to 1 TB for storing and playing media files.
To check if it works with your TV, confirm the screen size and resolution match. If you’re not sure, look at the user manual or ask the manufacturer.
Conclusion
The TP.S512.P66 QT526HP V1.2 is a reliable universal TV motherboard with many useful features. Its combo design, wide range of inputs and outputs, and support for different screen sizes make it a solid pick for TV technicians and DIY builders.
We hope this post helps you understand the TP.S512.P66 QT526HP V1.2 and how to use its firmware. If you have questions or need assistance, comment below. Thank you for visiting teckwiki.com, and check back for more tech tips!
