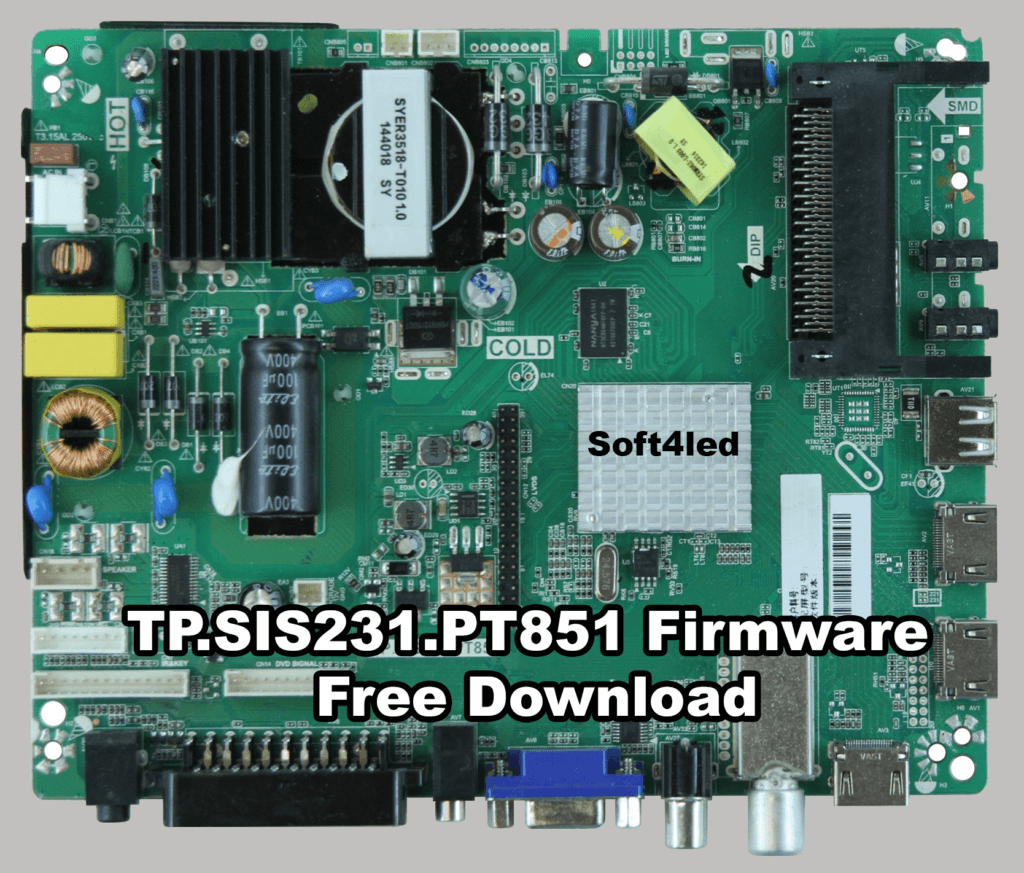

Welcome to teckwiki.com! Today, we bring you the latest firmware for the TP.SIS231.PT851 universal TV motherboard. This board works with LCD and LED TVs sized 32 to 50 inches. It supports resolutions up to 1920×1080. The TP.SIS231.PT851 is a three-in-one board. It combines the power supply, backlight driver, and TV signal functions. Brands like Goldvision, Rolsen, Vivax, and JVC use it. It has USB, HDMI, AV, Scart, and VGA ports for connecting devices.
General Specifications
Here are the key details of the TP.SIS231.PT851 board:
- Model: TP.SIS231.PT851
- Main Chipset: SIS231C1CI
- Resolution Supported: 1920×1080
- Flash Memory: 25Q64 (8Mb)
- Television System: PAL (BG, DK), SECAM (BG, DK, LL)
- Tuner: DVB-T, DVB-C
- Audio Output Power: 2×6 W (8Ω)
- Backlight Current: 350mA
- Backlight Power: 65 W
- Power Input: 100 to 240V
- Power Consumption: 75W
- Service Code: Menu 1147, Balance (value “0”) + 1969
- Firmware Name: SISEU23X8M.bin
- Firmware Type: USB Bootable Firmware and Flash Backup Dump
Firmware Files
Firmware is the software that runs your TV’s hardware. It keeps everything working smoothly. For the TP.SIS231.PT851, we provide free firmware downloads. These files match various TV models and panels. They support resolutions up to 1920×1080.
Click here to get the firmware: Download TP.SIS231.PT851 Firmware
We also offer a specific file for the Orion T28 D-LED-KMO 275LHDD06A. If you own this TV, use that file for the best results.
How to Update the Firmware
Updating your TP.SIS231.PT851 firmware is simple. Follow these steps:
| Filename | Download |
|---|---|
| TP SIS231.PT851-LC320EXN M00-VR-LT-32T01V | Download |
| TP.SIS231.PT851-Orion T28 D-LED-KMO 275LHDD06A | Download |
- Download the firmware file from the link above.
- Copy the file to a USB drive. Use FAT32 format.
- Plug the USB drive into the TV’s USB port.
- Turn on the TV. Open the service menu: Press Menu 1147, set Balance to 0, then enter 1969.
- Choose the USB firmware update option.
- Follow the on-screen steps.
- Restart the TV when done.
Caution: Keep the TV powered on during the update. A power cut could cause problems. Back up your current firmware first, if possible.
Additional Information
Need to tweak settings? Use the service code: Menu 1147, set Balance to 0, then enter 1969. The board has 25Q64 flash memory with 8Mb capacity. The firmware comes as a USB-bootable file and a backup dump. Always pick the correct file for your TV model.
Conclusion
The TP.SIS231.PT851 is a solid choice for many LCD and LED TVs. With our firmware files, you can keep your TV running well. Download them today. Need help? Contact us anytime.
