TP.V56.PA671 Firmware Download (All Resolutions

Welcome to Teckwiki! If you’re looking to repair or upgrade your LCD or LED TV, the TP.V56.PA671 universal TV motherboard might be just what you need. This post covers everything about this popular controller board, including its features, specifications, and how to upgrade its firmware. Plus, we’re providing all firmware files for free download. Let’s get started!

Introduction

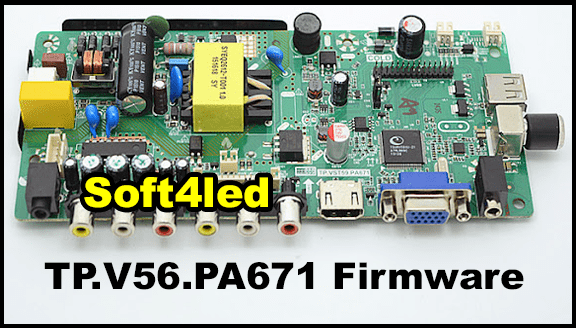

The TP.V56.PA671 is a universal non-smart LCD/LED TV controller board. It’s known for working with many TV models and supporting display resolutions up to 1920×1080. Whether you’re fixing a broken TV or improving an old one, this board is a solid choice due to its wide compatibility and simple setup.

Specifications

Basic Info

• Model No.: TP.V56.PA671 (Combo Board)
• Main Chipset: TSUMV56RUE
• LED Backlight: 220mA to 280mA
• Display Format: Up to 1920×1080
• Aspect Ratio: 4:3, 16:9, 16:10

General Specifications

• TV System: PAL, SECAM, NTSC
• Panel Interface: Single-channel or Dual-channel LVDS
• Key Button Functions: CH-, CH+, MENU, VOL-, VOL+, Source, Power
• Multi-Language OSD: Yes
• Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
• Audio Output Power: 2 x 5 Watt (8 ohms)
• Panel Voltage: +3.3V, +5V, +12V DC (set by jumping cap)
• USB Port: Supports firmware upgrades and multimedia playback
• USB File Format:
  • Audio: MP3, WMA, M4A/AAC
  • Video: AVI, MP4, TS/TRP, MKV/MOV, MPG, DAT, VOB, RM/RMVB
  • Picture: JPG, JPEG, BMP, PNG
  • Text: TXT
• IR Control: Yes, works with a remote
• Electrical Parameters:
  • Working Input Voltage: AC 220V
  • Maximum Current: 3000mA (without panel)
  • Standby Power: Less than 0.2W (motherboard only)
  • Maximum Current for USB: 500mA

These specs make the TP.V56.PA671 a flexible option for many TV setups.

Firmware Upgrade Guide

Updating the firmware on your TP.V56.PA671 board is simple. Follow these steps carefully:

1. Prepare Your USB Drive: Make sure it’s empty.
2. Copy the Firmware: Download the .bin file for your TV’s resolution and copy it to the USB drive.
3. Connect the USB: Plug the USB drive into the mainboard.
4. Attach Keypad and IR: Connect the keypad and infrared receiver.
5. Power On: Turn on the power and watch the keyboard light.
   • If it flashes, the firmware is being installed. Wait until the light turns green—done!
   • If it doesn’t flash, unplug the power, reconnect the USB, and power on again.

Factory Service Mode: Need advanced settings? Press Menu+1147 on your remote to enter this mode.

Available Firmware Files

We’re providing free firmware downloads for the TP.V56.PA671. Here are two specific files:

We also offer other resolution files for 4MB flash memory, including:

• T.VST56.03-1024×768
• 1366×768
• 1440×900
• 1600×900
• 1680×1050
• T.VST56.03-1920×1080
• 1920×1200
• T-VST56-03-All-Panel-Files
• And more

All files support the M90 general remote control. After downloading the RAR file, you’ll see multiple options. Pick the one that matches your TV’s board and display panel. Check the RAR file details for more info.

Frequently Asked Questions

Here are answers to common questions about the TP.V56.PA671:

What does the TP.V56.PA671 do?
It’s a controller board that runs LCD and LED TVs. It’s great for repairs or upgrades.

How do I pick the right firmware?
Match the firmware resolution (like 1920×1080) to your TV’s display. Check your TV manual or panel specs.

Will this board work with my TV?
It’s compatible with many models. Compare your TV’s panel voltage and port needs with the specs above.

What if the firmware doesn’t install?
If the light doesn’t flash, double-check the USB connection and .bin file. Retry the steps.

Can I play videos or music with this board?
Yes, the USB port supports multimedia playback for files like MP4, MP3, and JPG.

These answers cover what people often search for, like “TP.V56.PA671 compatibility” or “how to fix firmware issues.”

Conclusion

The TP.V56.PA671 is a reliable universal TV motherboard that’s easy to use and widely compatible. With free firmware downloads and a clear upgrade guide, you can improve your TV’s performance in no time. Grab the files you need, follow the steps, and get your TV running smoothly. Have questions? Reach out to us at Teckwiki—we’re here to help!
