Looking for firmware files for the TP.V56.PB759 universal TV motherboard? You’re in the right place! At teckwiki.com, we offer all the firmware files you need for this popular motherboard, free to download. This guide covers everything you need to know about the TP.V56.PB759, including its features, how to upgrade firmware, and where to get the files. Whether you’re fixing a TV or upgrading one, we’ve got you covered.

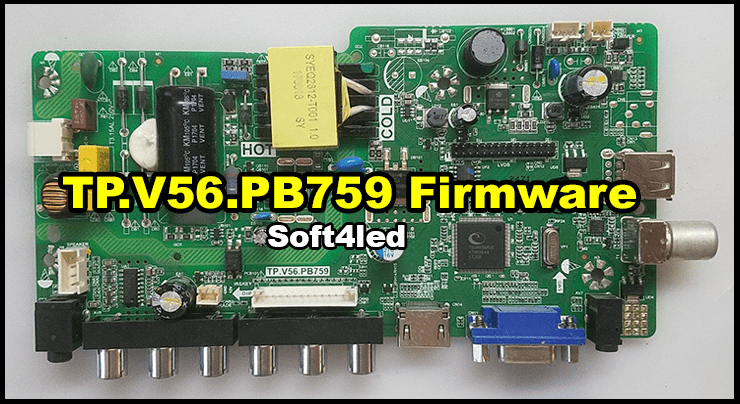

What is the TP.V56.PB759 Motherboard?
The TP.V56.PB759 is a simple, reliable motherboard made for LCD and LED TVs. It supports full HD screens (up to 1920×1080) and works well with TVs from 20″ to 32″. This board is widely used in the Middle East and Asia Pacific because of its practical design and compatibility.
It’s a combo board, meaning it combines three parts into one:
- Main power supply module
- Backlight inverter circuit module
- ATV card
This setup makes it easy to install and maintain, saving time for technicians and DIY users alike.
Features and Specifications
Here’s what the TP.V56.PB759 offers, broken down into clear sections.
Main Features
- HDMI Input: Connect devices like gaming consoles or DVD players.
- USB Interface: Use it for firmware updates or playing media files.
- PC Input: Hook up your computer to the TV.
- Scart and AV Ports: Works with older equipment.
- Headphone Output: Listen privately through headphones.
Technical Specifications
- Model No.: TP.V56.PB759 (Combo Board)
- Main Chipset: TSUMV56RUU
- LED Backlight: 220mA to 280mA
- Display Format: Up to 1920×1080 (Full HD)
- Aspect Ratio: 4:3, 16:9, 16:10
- Panel Screen Support: 20″ to 32″
General Specifications
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single-channel or dual-channel LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language OSD: Yes, supports multiple languages
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
- Audio Output Power: 2 x 5 Watt (8 ohm)
- Panel Voltage: +3.3V/+5V/+12V DC (set by jumping cap)
- USB Port: Supports firmware upgrades and media playback
- IR Control: Works with a remote control
Electrical Parameters
- Working Input Voltage: AC 220V
- Maximum Current: 3000mA (without panel)
- Standby Power: Less than 0.2W (motherboard only)
- Maximum Current for USB: 500mA
USB Media Support
The USB port can play:
- Audio: Mp3, wma, m4a/aac
- Video: avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb
- Picture: Jpg, jpeg, bmp, png
- Text: .txt files
How to Upgrade Firmware on TP.V56.PB759
Updating the firmware is simple if you follow these steps:
- Empty Your USB Drive: Make sure it’s clear of other files.
- Download the Firmware: Pick the file that matches your TV’s resolution.
- Copy the File: Move the .bin file to your USB drive.
- Connect the USB: Plug it into the motherboard’s USB port.
- Attach Keypad and IR: Ensure these are connected.
- Power On: Plug in the power supply and watch the keyboard light.
- If it flashes, the update is running. Wait until it turns green—done!
- If no flashing, unplug the power, reconnect the USB, and try again.
Tip: Always match the firmware to your TV’s resolution to avoid problems.
Free Firmware Files for Download
We’ve listed the available firmware files below. Each one works with 4MB flash memory and supports the M90 general remote control. Pick the right file for your TV’s resolution and model.
| Filename | Download |
|---|---|
| TP.V56.PB759-1366×768-Fusion-Dump | Download |
| TP.V56.PB759-1366×768-Micromax-Dump | Download |
| TP.V56.PB759-1366×768-Ramesh-Dump | Download |
| TP.V56.PB759-1366×768-Sony-Dump | Download |
| TP.V56.PB759-1920×1080-Fusion-Dump | Download |
| TP.V56.PB759-1920×1080-Ramesh-Dump | Download |
| TP.V56.PB759-Micromax 24B900HDi-USB | Download |
More resolutions are available in the RAR file, including:
- 1024×768
- 1366×768
- 1440×900
- 1600×900
- 1680×1050
- 1920×1080
- 1920×1200
- All-Panel-Files pack
After downloading, check the RAR file for details to find the best match for your TV.
How to Enter Factory Service Mode
Need to tweak advanced settings? Here’s how to access factory service mode:
- Press Menu + 1147 on your remote control.
This opens up options for diagnostics and adjustments.
Why Use the TP.V56.PB759 Motherboard?
This motherboard is a solid pick for TV repairs or upgrades. Here’s why:
- Wide Compatibility: Works with many screen sizes and resolutions.
- Simple Updates: USB makes firmware upgrades quick.
- Lots of Ports: Connects to modern and older devices.
- Affordable: A budget-friendly fix for TV issues.
Answers to Common Questions
We’ve gathered some frequent questions about the TP.V56.PB759 to help you out.
1. Which firmware file should I choose?
Look at your TV’s resolution (e.g., 1920×1080) and model. Match it to the file name or check the RAR file details.
2. Can it work with a 4K TV?
No, it only supports up to 1920×1080 (Full HD), not 4K.
3. What if the firmware update doesn’t start?
If the keyboard light doesn’t flash, unplug the power, reattach the USB, and power on again. Check that the .bin file is on the USB.
4. Can the USB play movies?
Yes, it supports video files like mp4, avi, and mkv, plus music and photos.
5. How do I fix a blank screen after updating?
Double-check the firmware matches your TV’s resolution. If it’s wrong, download the correct file and try again.
Final Thoughts
The TP.V56.PB759 universal TV motherboard is a practical choice for anyone working on LCD or LED TVs. It’s easy to use, packed with features, and supported by free firmware downloads right here on teckwiki.com. Get the files you need today and bring your TV back to life!
