TP.V56.PB826 Firmware Download (All Resolutions)

Welcome to teckwiki.com! If you need firmware files for the TP.V56.PB826 universal TV motherboard, you’re in the right spot. This post provides all the firmware files for this popular LCD/LED TV control card. We’ll also explain how to pick the right file and install it on your TV.

The TP.V56.PB826 is a combo board used in many TVs, especially in Asia and the Middle East. It combines the power supply, inverter, and ATV module into one unit. It works with 28 to 32-inch screens and supports resolutions up to 1920×1080. Plus, it has a USB port for software updates and playing multimedia files.

Here’s what you’ll find in this post:

• A full list of firmware files for the TP.V56.PB826.
• Simple steps to download and install the firmware.
• Specs and troubleshooting tips.

Let’s dive in!

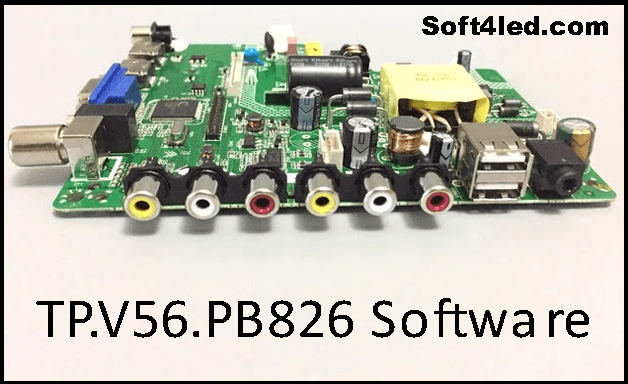

What is the TP.V56.PB826 Universal TV Motherboard?

The TP.V56.PB826 is a universal TV motherboard for LCD and LED TVs. It’s a three-in-one board that handles the power supply, inverter, and ATV module. This makes it a handy choice for TV makers and repair shops. You’ll see it in TVs across Asia and the Middle East because it works well with different setups.

This board supports:

• Screen sizes from 28 to 32 inches.
• Resolutions up to 1920×1080.
• USB updates and multimedia playback.

If your TV has this board and you’re facing issues like a blank screen or software bugs, the right firmware can fix it. This post has everything you need to get started.

General Specifications of TP.V56.PB826

Knowing the specs of the TP.V56.PB826 helps you confirm it matches your TV. Here’s the rundown:

• Brand/Mark: China Universal
• Model: TP.V56.PB826
• Main Chipset: TSUMV56RUU-Z1
• Tuner Chip: R842
• Product: LED TV Driver Board
• Resolution: Up to 1920×1080
• Panel Size: 28″ to 32″
• Panel Voltage: 12V
• Backlight Adjust: Yes
• Mirror Mode: Yes
• Input Supply: 220V AC
• Backlight: 45-65V, 35W
• Speaker Output: 2x5W

Check these details against your TV to make sure you download the correct firmware.

How to Download and Install Firmware for TP.V56.PB826

Updating your TV’s firmware can solve problems and improve how it works. But you need to pick the right file for your TV’s resolution and panel. Here’s how to do it.

Step 1: Pick the Right Firmware File

The firmware files are listed by resolution and panel type. Match the file to your TV. For example:

• Use “TP.V56.PB826-1366×768-ATC-32 Inch” for a 32-inch ATC panel with 1366×768 resolution.
• Use “TP.V56.PB826-1920×1080-Samsung-Dump” for a Samsung panel with 1920×1080 resolution.

Choosing the wrong file might mess up your TV, so check your screen size and resolution first.

Step 2: Download the File

Find the file you need in the list below and click “Download.” It’ll come as a .rar or .zip file. Use a program like WinRAR or 7-Zip to unzip it.

Step 3: Set Up a USB Drive

• Format a USB drive to FAT32.
• Copy the unzipped firmware file to the USB’s main folder, not inside any subfolders.

Step 4: Install the Firmware

• Turn off your TV and plug the USB into its USB port.
• Turn the TV back on. Some TVs will spot the file and ask to update. If not, go to the TV’s menu and look for a software update option.
• Follow the TV’s instructions to finish the update.
• Restart your TV when it’s done.

Warning: Don’t unplug the TV or USB during the update. It could harm the board. If you’re not sure what to do, check your TV’s manual or ask a technician.

List of Available Firmware Files for TP.V56.PB826

Here are all the firmware files for the TP.V56.PB826. Pick the one that fits your TV and click “Download.”

All files support M90 general remote controls and work with 4MB flash memory. After downloading, open the RAR file to see more details and choose the right file for your panel.

Service Mode and Troubleshooting Tips

How to Enter Service Mode

The TP.V56.PB826 has a service mode for advanced settings. To access it:

• Press “Source” or “Input” on your remote.
• Type 2580.

Be careful in service mode. Changing the wrong thing can cause problems. If you’re not sure, leave it alone.

Quick Troubleshooting Tips

Got issues? Try these fixes:

• No power: Make sure the input is 220V AC and check the power supply.
• Blank screen: Confirm the panel voltage is 12V and the backlight is working (45-65V, 35W).
• Wrong picture size: Check that the firmware matches your TV’s resolution.
• USB not working: Format the USB to FAT32 and put the file in the main folder.

For bigger problems, look at your TV’s manual or call a technician.

Conclusion

The TP.V56.PB826 is a solid universal TV motherboard for 28 to 32-inch screens. With the right firmware, your TV will run smoothly. Just:

• Pick the file that fits your TV’s resolution and panel.
• Follow the steps to install it safely.
• Use service mode only if you know what you’re doing.

We’ve got all the files you need right here, free to download. Questions? Drop a comment below. Good luck with your TV repair!
