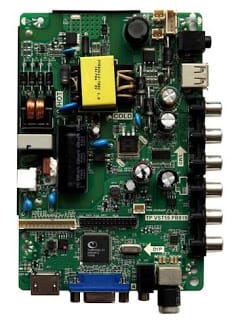

The TP.VST59.PB819 is a universal LCD/LED TV motherboard designed for 32-inch screens. This three-in-one combo board integrates a power card, backlight driver controller, and ATV module into a single PCB. Its versatility makes it compatible with various panel screens, offering a cost-effective solution for TV repairs and upgrades.
Key Features of TP.VST59.PB819
- Main Chip: TSUMV59XU-Z1
- TV System: Supports PAL, SECAM, and NTSC
- Product Type: LED TV
- Input Voltage: 220V AC
- Backlight Power: Maximum 25W
- Backlight Voltage: 45-63V
- Board Size: 146x128mm
- Supported Resolution: Suitable for 30-39” glass panels
- Flash Memory: 4MB
- Remote Compatibility: Supports M90 general remote control
This motherboard is ideal for technicians and TV repair shops looking for a reliable, all-in-one solution.
Why Update TP.VST59.PB819 Firmware?
Updating the firmware ensures your TV runs smoothly, fixes bugs, and improves performance. Common reasons to update include:
- Resolving display issues like flickering or no image
- Improving compatibility with different panel resolutions
- Enhancing TV system stability
- Fixing remote control responsiveness
Available Firmware Files for TP.VST59.PB819
Below are the free firmware files for the TP.VST59.PB819 motherboard. Each file is tailored for specific resolutions and configurations. Download the one that matches your TV’s panel and display requirements.
| Filename | Download |
|---|---|
| TP.VST59.PB819-32 Inch | Download |
| TP.VST59.PB819-1366×768 | Download |
| TP.VST59.PB819-1366×768-Down | Download |
| TP.VST59.PB819-1920×1080 | Download |
| TP.VST59.PB819-1920×1080-AT | Download |
| TP.VST59.PB819-1920×1080-AT-N | Download |
Note: After downloading, extract the RAR file to find multiple firmware versions. Check the included documentation to select the correct file for your TV board and panel.
Supported Resolutions
The TP.VST59.PB819 supports a wide range of resolutions, including:
- 1024×768
- 1366×768
- 1440×900
- 1600×900
- 1680×1050
- 1920×1080
- 1920×1200
These options make it compatible with various 30-39” LED panels, ensuring flexibility for different TV models.
How to Update TP.VST59.PB819 Firmware via USB
Follow these simple steps to update your TV’s firmware using a USB drive:
- Download the Firmware: Choose the appropriate firmware file from the list above and save it to a USB drive.
- Prepare the USB: Ensure the USB drive is formatted in FAT32 and contains only the firmware file.
- Connect the USB: Plug the USB drive into the TV’s USB port.
- Power On the TV: Insert the AC cord. The TV will enter standby mode and automatically start the update process.
- Monitor the Update: The LED indicator will flash red and green slowly, then quickly. Once it turns solid red, the TV will power on, indicating the update is complete.
- Completion Time: The process takes about 15 seconds.
Important Tips:
- Do not unplug the USB or power off the TV during the update.
- Ensure a stable power supply to avoid interruptions.
- Verify the firmware file matches your TV’s resolution and panel type.
Accessing the Service Menu
To fine-tune settings or troubleshoot issues, access the TP.VST59.PB819 service menu:
- Press Menu on your remote.
- Enter the code 2008 to access the service menu.
- Use the menu to adjust settings like backlight, audio, or panel configurations.
Caution: Only modify settings if you understand their impact. Incorrect changes may affect TV performance.
Frequently Asked Questions (FAQs)
What is the TP.VST59.PB819 motherboard?
The TP.VST59.PB819 is a universal three-in-one LED TV motherboard combining a power card, backlight driver, and ATV module. It’s designed for 32-inch screens and supports multiple resolutions.
Which firmware file should I choose?
Check your TV’s panel resolution (e.g., 1366×768 or 1920×1080) and download the corresponding firmware file. Refer to the RAR file’s documentation for guidance.
Can I use any USB drive for the update?
Yes, but format the USB drive in FAT32 and ensure it contains only the firmware file to avoid errors.
What happens if the update fails?
If the update fails, ensure the USB is properly formatted and the firmware file is correct. Retry the process. If issues persist, consult a professional technician.
Is the TP.VST59.PB819 compatible with all 32-inch TVs?
It’s compatible with most 30-39” LED panels, but confirm your TV’s panel specifications before installing.
Additional Resources
For more details, check the documentation included in the downloaded RAR file. If you need further assistance, contact a professional TV repair technician or visit Teckwiki.com for more TV repair guides and firmware updates.
Conclusion
The TP.VST59.PB819 is a versatile and reliable motherboard for 32-inch LED TVs. With the provided firmware files and USB update instructions, you can easily upgrade your TV’s software for better performance. Download the correct firmware, follow the steps, and enjoy a fully functional TV. Visit Teckwiki.com for more tech guides and free firmware downloads.
