The TP.VST69D.PB818 is a universal motherboard built for LCD and LED TVs, widely used in the Asian market. This board supports screen sizes from 32 to 46 inches and delivers resolutions up to Full HD (1920×1080). Whether you need to fix a TV issue or update its software, this post provides all the firmware files you need, along with clear instructions. Read on to find out more about this motherboard and how to get it working smoothly.

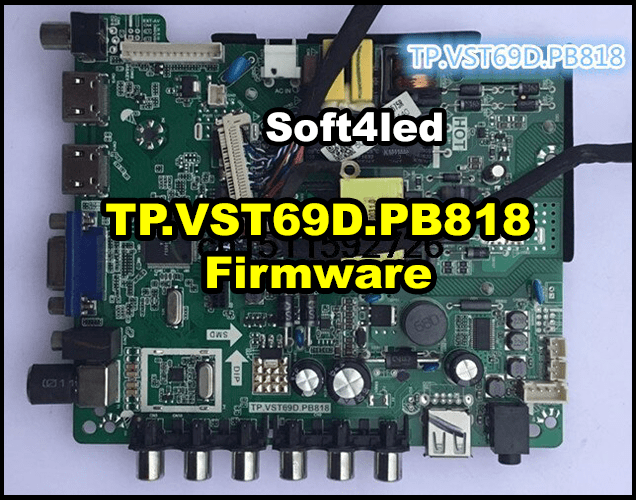

What is the TP.VST69D.PB818 Motherboard?
The TP.VST69D.PB818 is a three-in-one combo board designed for analog LCD and LED TVs. It’s a universal solution, meaning it works with many TV models and panel types. The board comes with several input ports, making it simple to connect devices like gaming consoles, DVD players, or USB drives. Plus, its USB port lets you play multimedia files or load new software, keeping your TV up to date.
Key Specifications
Here’s a quick look at what the TP.VST69D.PB818 offers:
- Model Number: TP.VST69D.PB818
- Main Chipset: TSU69KR-003J
- Supported Resolution: Up to 1920×1080 (Full HD)
- Supported Screen Sizes: 32 to 46 inches
- Panel Voltage: 12V
- Backlight: 300mA-400mA, 45W-75W
- Speaker Output: 2x5W (8ohm)
- Power Input: 220V AC
- Input Ports: Dual HDMI, Dual AV, Dual USB, VGA, RF input, Headphone Jack
- Firmware Name: V69K_SN51_48.bin
- Firmware Type: USB Upgrade
- Flash Size: 4Mb (25Q32)
- Service Menu Code: Menu 2580
This board is built to handle Full HD content and offers flexibility for various setups, making it a solid choice for TV repairs or upgrades.
TP.VST69D.PB818 Firmware Downloads
Need to update your TP.VST69D.PB818 motherboard? We’ve got you covered with free firmware files for different resolutions. Pick the one that matches your TV’s display panel:
These files are USB-upgrade compatible and work with a 4Mb flash memory (25Q32). Be sure to download the right version for your TV to avoid problems. Not sure which resolution your TV uses? Check your TV’s manual or the display settings.
Why Update Your Firmware?
Updating the firmware can fix issues like a blank screen, audio problems, or input glitches. It also ensures your TV runs the latest software for better performance. With these files, you can bring your TP.VST69D.PB818 back to life without much hassle.
How to Update TP.VST69D.PB818 Firmware
Updating the firmware is simple if you follow these steps. You’ll need a USB drive and the correct firmware file.
- Download the Firmware: Click the link above for your TV’s resolution and save the file (V69K_SN51_48.bin) to your computer.
- Prepare the USB Drive: Format a USB drive to FAT32. Make sure it’s empty, then copy the firmware file to the root directory (not inside any folder).
- Plug in the USB: Turn off your TV and insert the USB drive into one of the USB ports.
- Start the Update: Turn on the TV. The board should detect the firmware and begin the update automatically.
- Wait It Out: A message will appear on the screen showing the update progress. Don’t turn off the TV or remove the USB until it’s done.
- Finish Up: The TV will restart once the update is complete. Remove the USB drive, and you’re good to go.
If the TV doesn’t detect the firmware, double-check that the USB is formatted correctly and the file is in the root directory. Try a different USB drive if it still doesn’t work.
Accessing the Service Menu
The service menu lets you tweak advanced settings on the TP.VST69D.PB818. Here’s how to get in:
- Turn On the TV: Make sure it’s powered up and working.
- Open the Menu: Press the “Menu” button on your remote.
- Enter the Code: Quickly type “2580” using the number keys.
- Adjust Settings: The service menu will pop up, giving you access to options like picture calibration or audio tweaks.
Be careful in the service menu. Write down the original settings before changing anything, as mistakes can mess up your TV’s performance.
Troubleshooting Common Issues
Running into problems with your TP.VST69D.PB818? Here are some quick fixes:
- TV Won’t Turn On: Check the power supply and connections. Confirm the panel voltage is set to 12V.
- No Picture: Test the backlight. It should run between 300mA and 400mA. If it’s off, the backlight might need repair.
- Firmware Won’t Update: Ensure the USB is FAT32 and the file is named correctly. Switch USB drives if needed.
- No Sound: Verify the speaker connections. The output should be 2x5W (8ohm).
Still stuck? A TV repair technician can help with more complex issues.
Frequently Asked Questions
What Resolutions Does TP.VST69D.PB818 Support?
This motherboard supports up to 1920×1080 (Full HD). We provide firmware for 1920×1080 and 1366×768, the most common resolutions for this board.
Can I Use This Firmware for Other Boards?
No, these files are specific to the TP.VST69D.PB818 with a 4Mb flash (25Q32). Using them on a different board could cause issues.
How Do I Know If My TV Needs a Firmware Update?
If your TV has glitches like freezing, no sound, or a blank screen, a firmware update might fix it. Always back up your settings first.
Wrapping Up
The TP.VST69D.PB818 is a dependable universal motherboard for LCD and LED TVs. With support for Full HD, multiple input ports, and easy firmware updates via USB, it’s a great option for keeping your TV in top shape. Download the firmware files above, follow the update steps, and use the troubleshooting tips if needed. Got questions? Drop us a message, and we’ll help you out.
