Welcome to TeckWiki! Today, we’re breaking down everything you need to know about the TPD.T960X.PC792 firmware for this popular universal TV motherboard. If you’re looking for reliable firmware files, technical details, or a step-by-step guide to update your board, you’re in the right place. We’ve got all resolution files ready for download, plus a full rundown of this smart LED TV board’s features and specs. Let’s get started!
What Is the TPD.T960X.PC792 Smart LED TV Board?
The TPD.T960X.PC792 is a powerful universal motherboard designed for Ultra High Definition (UHD) smart LED TVs. It supports a maximum resolution of 4K (3840×2160), delivering crisp and clear visuals at 2160 pixels. This board is a three-in-one combo, meaning it combines the main power supply (100-240V, 50/60Hz), a cable TV tuner, and an LED backlight inverter driver into a single printed circuit board (PCB).
Built with a 64-bit Quad-Core AMLogic processor (ARM Cortex-A53), this motherboard offers solid performance. It comes with 1GB or 2GB of RAM and 8GB of EMMC flash storage, making it ideal for 43-inch UHD screen panels. The refresh rate sits at 60Hz, ensuring smooth playback for videos and games.
Key Features of TPD.T960X.PC792
This board isn’t just about resolution—it’s packed with features that make it a top choice for smart TV setups. Here’s what stands out:
- Multiple Ports:
- Ethernet (RJ45) for fast wired internet.
- Three HDMI ports for connecting devices like gaming consoles or Blu-ray players.
- Dual USB 2.0 ports for external drives and multimedia playback.
- SPDIF and headphone outputs for audio flexibility.
- Component input for older analog devices.
- Audio Power: Dual speakers with a total output of 20 watts (2x10W, 8 ohm).
- Smart Features:
- Built-in WiFi (2.4GHz/5GHz) and Bluetooth 4.2.
- Google Voice Assistant for hands-free control.
- Chromecast for easy screen sharing.
- Kids Mode with parental lock for family safety.
- Operating System: Runs on Android 9.0, offering a smooth and modern interface.
TPD.T960X.PC792 Technical Specifications
Here’s a detailed look at the board’s specs to help you understand its capabilities:
- Resolution: 4K UHD (3840×2160)
- Processor: Quad-Core ARM Cortex-A53 (64-bit)
- GPU: Mali-450 MP3
- RAM: 1GB or 2GB DRAM
- Storage: 8GB EMMC Flash
- Refresh Rate: 60Hz
- Backlight Voltage: 90-102V
- Backlight Current: 570mA
- Backlight Power: 180W
- HDMI: 3 ports (HDMI 2.0, HDCP 2.2)
- USB: 2 ports (USB 2.0)
- Audio Output: 20W (10W + 10W)
- WiFi: Dual-band (2.4GHz/5GHz)
- Bluetooth: Version 4.2
- Tuner: Supports NTSC/PAL
- Power Consumption: 105W
- Input Voltage: 100-240V, 50/60Hz
This board also supports Dolby Digital, Mira-Cast, and HbbTV 2.0.2, making it a versatile option for modern TVs.
Why Update Your TPD.T960X.PC792 Firmware?
Updating your TV’s firmware keeps it running smoothly. It can fix bugs, improve performance, and unlock new features. For the TPD.T960X.PC792, firmware updates ensure compatibility with the latest apps and devices. Whether you’re troubleshooting a glitch or upgrading your MI TV, having the right firmware files is key.
Download TPD.T960X.PC792 Firmware Files
We’ve got you covered with all resolution firmware files for the TPD.T960X.PC792. These are EMMC backup dump files, tested and ready for use, specifically for MI TVs like the L43M4-4AIN model. Below are the download links:
- TPD.T960X.PC792-8G-MI-L43M4-4AIN-EMMC.part01
- TPD.T960X.PC792-8G-MI-L43M4-4AIN-EMMC.part02
- TPD.T960X.PC792-8G-MI-L43M4-4AIN-EMMC.part03
- TPD.T960X.PC792-8G-MI-L43M4-4AIN-EMMC.part04
- TPD.T960X.PC792-8G-MI-L43M4-4AIN-EMMC.part05
- TPD.T960X.PC792-8G-MI-L43M4-4AIN-EMMC.part06
- TPD.T960X.PC792-8G-MI-L43M4-4AIN-EMMC.part07
- TPD.T960X.PC792-8G-MI-L43M4-4AIN-EMMC.part08
- TPD.T960X.PC792-8G-MI-L43M4-4AIN-EMMC.part09
- TPD.T960X.PC792-8G-MI-L43M4-4AIN-EMMC.part10
- TPD.T960X.PC792-8G-MI-L43M4-4AIN-EMMC.part11
- TPD.T960X.PC792-8G-MI-L43M4-4AIN-EMMC.part12
- TPD.T960X.PC792-8G-MI-L43M4-4AIN-EMMC.part13
Note: These files are split into three parts. Download all parts and combine them using a tool like WinRAR before proceeding.
How to Write TPD.T960X.PC792 EMMC Backup: Step-by-Step Guide
Flashing the firmware might sound tricky, but it’s simple with the right steps. Here’s how to write the EMMC backup to your TPD.T960X.PC792 board:
- Download the Firmware: Grab the files linked above.

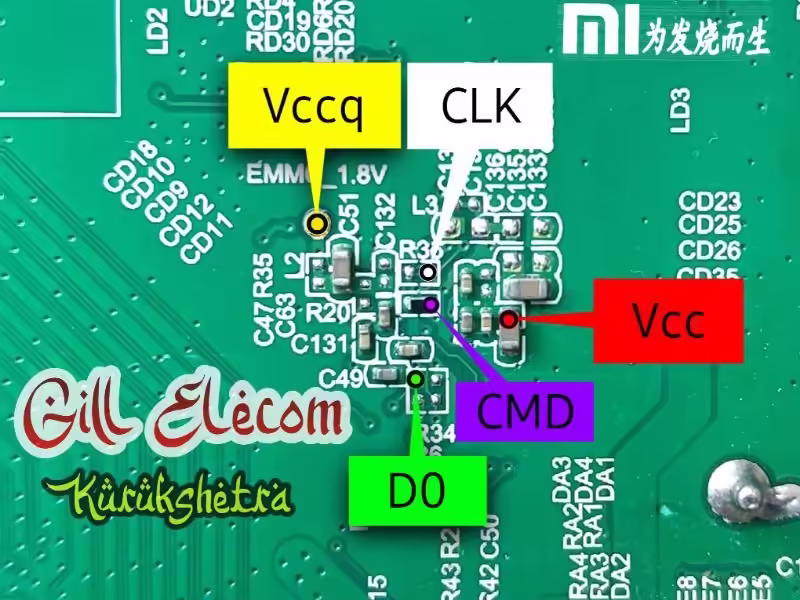

- Check EMMC Pinouts: Locate the D0, CMD, and CLK pins on your board. Refer to the pinout diagram for accuracy.
- Connect the Board: Use a programming tool (like a JTAG device) to link your motherboard to your computer.
- Write the Data: Load the EMMC backup file into your programming software and flash it to the board.
- Finish Up: Disconnect the board and test your TV.
Pro Tip: Double-check your connections before flashing to avoid errors.
Common Questions About TPD.T960X.PC792 Firmware
We’ve pulled some popular questions from Google’s “People Also Ask” to address what readers want to know:
Where Can I Find TPD.T960X.PC792 Firmware Files?
Right here on TeckWiki! Our download links above provide tested EMMC backup files for all resolutions.
Is the TPD.T960X.PC792 Compatible With My TV?
This board works best with 43-inch UHD panels, especially MI models like the L43M4-4AIN. Check your TV’s manual to confirm compatibility.
How Do I Fix a Bricked TPD.T960X.PC792 Board?
A bricked board can often be revived by reflashing the firmware. Follow our guide above with the correct files.
What’s the Latest Firmware Version for TPD.T960X.PC792?
As of April 2, 2025, the files we provide are the most current EMMC backups available for this board.
Tips for Using Your TPD.T960X.PC792 Board
- Test After Flashing: Power on your TV after updating to ensure everything works.
- Use Stable Power: A steady 100-240V supply prevents issues during firmware updates.
- Connect Smart Features: Pair Bluetooth devices or use Chromecast for a full smart TV experience.
Final Thoughts
The TPD.T960X.PC792 is a reliable and feature-packed universal TV motherboard. With 4K resolution, smart features, and plenty of ports, it’s a great fit for upgrading or repairing your LED TV. Our firmware files and flashing guide make it easy to keep your board up to date. Download the files today and get your TV running at its best!
Have questions or need help? Drop a comment below—we’re here to assist. Stay tuned to TeckWiki for more tech guides and downloads!
