TSUMV59-T4C1 Firmware Free Download (All Resolutions)

Looking for firmware for your LED TV? The TSUMV59-T4C1 universal TV motherboard is a trusted solution for technicians and TV owners. It powers LED TVs across Asia Pacific and Middle East markets. This board supports panels from 24 to 42 inches with resolutions up to 1920×1080. In this post, you’ll get free firmware downloads, technical details, and a clear installation guide. Let’s walk through everything you need to know about the TSUMV59-T4C1 firmware.

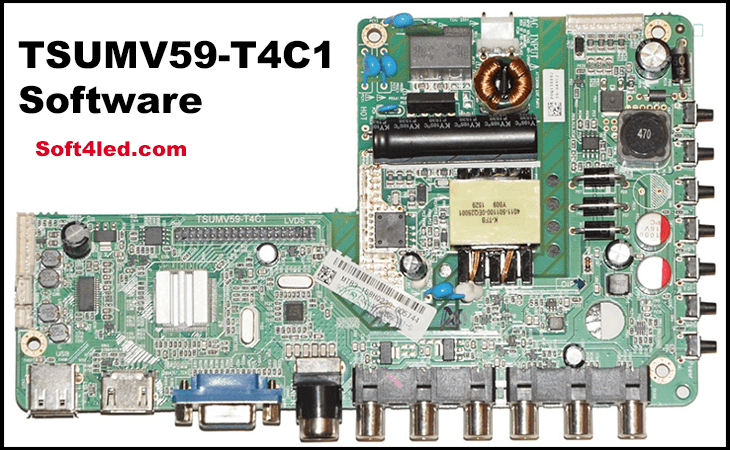

What is TSUMV59-T4C1?

The TSUMV59-T4C1 is a universal control board for analog LCD and LED TVs. It’s built for markets in Asia Pacific and the Middle East. This motherboard works with LED panels from 24 to 42 inches and supports resolutions up to Full HD (1920×1080). Technicians love it for its flexibility and reliability. Whether you’re fixing a TV or upgrading it, this board is a solid choice. It handles both non-HD and FHD screens, making it a go-to for many TV models.

Technical Specifications

Here are the key details of the TSUMV59-T4C1 motherboard:

• Board Make: China
• Board Model: TSUMV59-T4C1
• Main Chipset: TSUMV59
• TV System: PAL, SECAM, NTSC
• Panel Interface: Single or Dual-channel LVDS
• Key Buttons: CH-, CH+, MENU, VOL-, VOL+, Source, Power
• Multi-Language: Yes
• Ports: HDMI, VGA, AV, USB, RF TV, Earphone Out
• Audio Output: 2 x 8 Watt (8 ohms)
• Panel Voltage: +5V or +12V DC (Default 12V)
• USB Port: Yes (For firmware updates and multimedia playback)
• IR Control: Yes (Works with remote)
• Input Voltage: AC 220V
• Maximum Current: 5000mA (without panel)
• Standby Power: Less than 0.5W
• USB Current: 500mA max
• Flash IC: 4MB
• Firmware Type: Backup Dump

These specs show why the TSUMV59-T4C1 is so versatile for LED TVs.

Features and Benefits

The TSUMV59-T4C1 offers useful features for TV users. Here’s what it brings:

• Multimedia Playback: Play videos, music, or photos via USB.
• Firmware Updates: Update your TV’s software easily with a USB drive.
• HDMI Support: Multiple HDMI 1.4 ports with HDCP 1.1 for secure playback.
• Panel Compatibility: Works with non-HD and Full HD panels.
• Widescreen Ready: Supports modern widescreen TVs.
• Multi-Language: Menu available in several languages.
• Dual AV Option: Extra AV inputs for more devices.

These features make your TV more functional and future-proof.

Firmware Download Section

We’re providing free TSUMV59-T4C1 firmware files. These work with various resolutions and panel types. All files are M90 (general remote supported) and fit 4MB flash memory.

Available Firmware Files:

• T.VST56.03-1024×768
• T.VST56.03-1366×768
• T.VST56.03-1440×900
• T.VST56.03-1600×900
• T.VST56.03-1680×1050
• T.VST56.03-1920×1080
• T.VST56.03-1920×1200
• T-VST56-03-All-Panel-Files

How to Pick the Right Firmware:

1. Check Your Resolution: Look at your TV’s manual or panel for its resolution (e.g., 1920×1080).
2. Match the File: Pick the firmware that fits your resolution.
3. Confirm Compatibility: Ensure it’s for the TSUMV59-T4C1 board.
4. Download: Use the links below.

Download Links:

After downloading, open the RAR file. It contains multiple files. Choose the one that matches your TV’s board and panel.

Installation Guide

Updating firmware is simple if you follow these steps. Here’s how to install the TSUMV59-T4C1 firmware:

Steps:

1. Set Up USB:
   • Format a USB drive to FAT32.
   • Copy the firmware file to it.
2. Plug In:
   • Turn off the TV.
   • Insert the USB into the TV’s USB port.
3. Access Service Mode:
   • Turn on the TV.
   • Press “Menu” on the remote, then type “1147.”
4. Update:
   • Select “USB Update” in the service menu.
   • Pick the firmware file.
   • Start the update and wait.
5. Restart:
   • Turn the TV off and on again.
   • Check if it works.

Safety Tips:

• Use the right firmware to avoid damage.
• Keep power steady during the update.
• Back up settings if possible.
• Ask a technician if you’re unsure.

Troubleshooting

Facing issues? Here are common problems and fixes:

• TV Won’t Start:
  • Check power connections.
  • Unplug for 10 minutes, then retry.
• Update Fails:
  • Confirm USB is FAT32.
  • Double-check the firmware file.
• No Picture:
  • Verify input source.
  • Ensure panel matches firmware.
• Remote Issues:
  • Swap batteries.
  • Check IR settings.

If these don’t help, reach out to a professional.

Conclusion

The TSUMV59-T4C1 firmware keeps your LED TV running smoothly. It’s packed with features and supports many panel types. With this guide, you can download and install it with confidence. Pick the right file, follow the steps, and troubleshoot if needed. Share this post with others who might need it.
