Need to fix your LCD or LED TV? The TSUMV59-T4C2 motherboard is a popular choice for repairs and upgrades. It’s a universal TV control board used widely in the Asia Pacific and Middle East markets. At teckwiki.com, we’re offering all firmware files for this motherboard for free.
In this post, you’ll find everything you need to know about the TSUMV59-T4C2. We’ll cover its features, specs, and how to download and install the right firmware. Let’s get your TV working again!

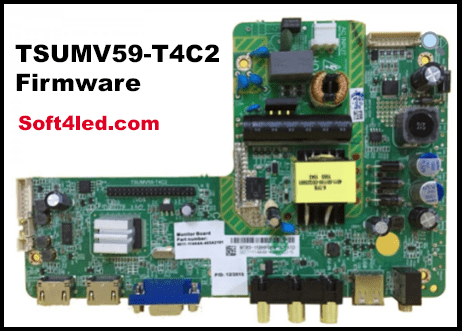

What is the TSUMV59-T4C2 Motherboard?
The TSUMV59-T4C2 is a universal TV motherboard made in China. It works with LCD and LED TVs that have screen sizes from 24 to 42 inches. It supports resolutions up to 1920×1080 (Full HD), so it’s a good fit for most modern TVs.
Here’s what makes it special:
- Supports multiple languages for easy use.
- Has a USB port for playing videos or updating firmware.
- Includes HDMI 1.4 for connecting devices like streaming boxes.
- Offers Dual AV extendable for extra audio/video inputs.
- Works with a standard remote control.
This board supports both Non-HD and Full HD panels. It’s also built for widescreen TVs, making it a versatile option.
Why Firmware Matters for TSUMV59-T4C2
Firmware is the software that runs your TV’s motherboard. It controls the display, sound, and how inputs work. Updating or replacing the firmware can fix problems or improve how your TV performs.
Here’s why you might need it:
- Fixes issues like a blank screen or freezing.
- Updates your TV to work with new devices.
- Boosts performance for smoother operation.
At teckwiki.com, we provide free TSUMV59-T4C2 firmware files. You can download backup dump files for different resolutions and panel types.
TSUMV59-T4C2 Specifications
Let’s break down the technical details. This will help you see if the TSUMV59-T4C2 matches your TV.
General Specifications
- Board Make: China
- Board Model: TSUMV59-T4C2
- Main Chipset: TSUMV59
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single-channel or Dual-channel LVDS
- Key Buttons: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language: Yes
- Audio Output Power: 2 x 8 Watt (8 ohms)
- Panel Voltage: +5V/+12V DC (Default 12V)
- USB Port: Yes (for firmware updates and multimedia playback)
- IR Control: Yes (remote control supported)
- Flash IC: 4MB
Input/Output Ports
- HDMI
- VGA
- AV
- USB
- RF TV interface
- Earphone Out
Electrical Parameters
- Working Input Voltage: AC220 Volt
- Maximum Current: 5000mA (without panel)
- Standby Power: <0.5W
- Maximum Current for USB: 500mA
These features make the TSUMV59-T4C2 a solid choice for TV repairs.
Available Firmware Files
We’ve got all the firmware you need for the TSUMV59-T4C2. These files are backup dumps, compatible with 4MB flash memory, and work with the M90 general remote control. Here’s what you can download:
- TSUMV59-T4C2-1920×1080-Orient-Backup-Dump
- T.VST56.03-1024×768
- T.VST56.03-1366×768
- T.VST56.03-1440×900
- T.VST56.03-1600×900
- T.VST56.03-1680×1050
- T.VST56.03-1920×1080
- T.VST56.03-1920×1200
- T.VST56.03-All-Panel-Files
After downloading, open the RAR file. It includes details to help you pick the right firmware for your TV board and panel.
| Filename | Download |
|---|---|
| TSUMV59-T4C2-1366×768-Ecostar-Backup-Dump | Download |
| TSUMV59-T4C2-1366×768-Horizont-Backup-Dump | Download |
| TSUMV59-T4C2-1366×768-Orient-Backup-Dump | Download |
| TSUMV59-T4C2-1366×768-Tornado-Backup-Dump | Download |
| TSUMV59-T4C2-1920×1080-Ecostar-Backup-Dump | Download |
| TSUMV59-T4C2-1920×1080-Geant-Backup-Dump | Download |
| TSUMV59-T4C2-1920×1080-Haier-Backup-Dump | Download |
| TSUMV59-T4C2-1920×1080-Orient-Backup-Dump | Download |
How to Pick the Right Firmware
Using the wrong firmware can stop your TV from working. Here’s how to choose correctly:
- Find your TV’s resolution: Check the manual or TV settings (e.g., 1920×1080).
- Match it to a firmware file: Pick the file with the same resolution.
- Confirm compatibility: All files are for 4MB flash and M90 remote support.
For a Full HD TV (1920×1080), use the TSUMV59-T4C2-1920×1080-Orient-Backup-Dump file.
Tip: Read the RAR file notes after downloading to double-check.
How to Install TSUMV59-T4C2 Firmware
Installing firmware is simple if you follow these steps:
- Download the file: Grab it from teckwiki.com.
- Extract the RAR: Use WinRAR or a similar tool.
- Copy to USB: Put the firmware on a FAT32-formatted USB drive.
- Connect to TV: Plug the USB into the TV’s USB port.
- Power on: The TV should find the firmware and start the update.
- Follow prompts: Complete the process as shown on-screen.
Caution: Keep the TV on during the update to avoid damage.
If this feels tricky, a technician can assist.
Answers to Common Questions
Here are some questions people often have about the TSUMV59-T4C2 firmware.
Can I use this firmware on other motherboards?
No. It’s made only for the TSUMV59-T4C2. Using it elsewhere might cause issues.
What if my resolution isn’t listed?
Contact us at teckwiki.com. We might have more files or solutions for you.
How do I know my TV needs new firmware?
Look for signs like no picture, sound problems, or input failures.
Is downloading from teckwiki.com safe?
Yes. Our files are tested and reliable for your TV.
Why Get Firmware from teckwiki.com?
Here’s what sets us apart:
- Free files: No cost, just downloads.
- Wide range: Files for many resolutions.
- Clear steps: Easy instructions for everyone.
- Help available: Reach out if you’re stuck.
We’re here to make TV fixes simple for all users.
Final Thoughts
The TSUMV59-T4C2 is a great universal TV motherboard. With the right firmware, you can get your TV running smoothly again. Pick the file that matches your resolution, install it carefully, and enjoy the results.
Ready to fix your TV? Download TSUMV59-T4C2 firmware from teckwiki.com now!
