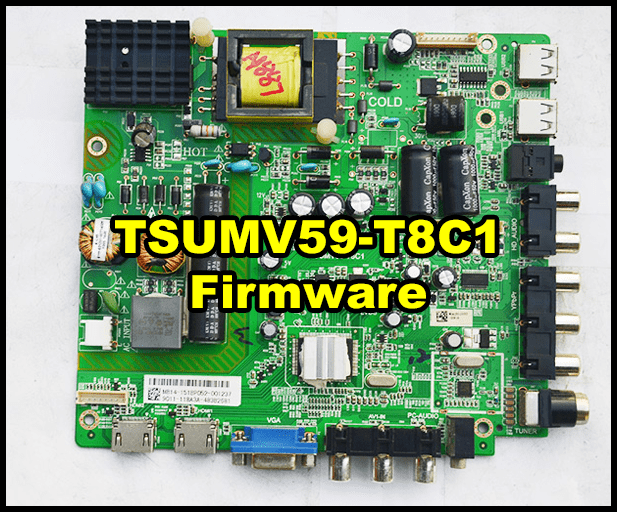

Welcome to teckwiki.com! Today, we’re bringing you details about the TSUMV59-T8C1 universal TV motherboard and free firmware files. This board is built for LCD/LED TVs in the Asia Pacific and Middle East markets. It works with panels from 24 to 42 inches and supports resolutions up to 1920×1080.
Key Features
- Works with 24″ to 42″ LED panels
- Supports resolutions up to 1920×1080
- USB port for multimedia playback and software upgrades
- Multiple HDMI ports (HDMI 1.4, HDCP 1.1)
- Compatible with non-HD and FHD panels
- Widescreen support
- Multi-language options
- Dual AV extendable
Download Firmware
| Filename | Download |
|---|---|
| TSUMV59-T8C1-1366×768-AOC-Backup-Dump | Download |
| TSUMV59-T8C1-1366×768-Backup-Dump | Download |
| TSUMV59-T8C1-1366×768-Cobra-Backup-Dump | Download |
| TSUMV59-T8C1-1366×768-Daewoo-Backup-Dump | Download |
| TSUMV59-T8C1-1366×768-Haier-Backup-Dump | Download |
| TSUMV59-T8C1-1366×768-K320WD6-Backup-Dump | Download |
| TSUMV59-T8C1-1366×768-Philips-Backup-Dump | Download |
| TSUMV59-T8C1-1920×1080-Daewoo-Backup-Dump | Download |
| TSUMV59-T8C1-1920×1080-Ecostar-Backup-Dump | Download |
General Specifications
- Board Make: China
- Board Model: TSUMV59-T8C1
- Main Chipset: TSUMV59
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single or Dual-channel LVDS
- Key Buttons: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language: Yes
- Ports: HDMI, VGA, AV, USB, RF TV, Earphone Out
- Audio Output: 2 × 8W (8Ω)
- Panel Voltage: +5V/+12V DC (Default 12V)
- USB: Firmware upgrades and multimedia support
- IR Control: Yes
Electrical Parameters
- Input Voltage: AC220V
- Max Current: 5000mA (without panel)
- Standby Power: <0.5W
- USB Max Current: 500mA
- Flash IC: 4MB
- Firmware Type: Backup Dump
Available Resolutions
The firmware files cover many resolutions, including:
- 1024×768
- 1366×768
- 1440×900
- 1600×900
- 1680×1050
- 1920×1080
- 1920×1200
- T-VST56-03-All-Panel-Files
- And more
All files are M90 (supports general remote control) and fit 4MB Flash Memory.
How to Choose the Right Firmware
After downloading the RAR file, you’ll see several firmware options. Pick the one that matches your TV’s resolution and panel. Check the details in the RAR file to find the right fit.
How to Install the Firmware
- Download the firmware from the link above.
- Extract the RAR file to see the firmware files.
- Select the file that fits your TV’s resolution and panel.
- Copy it to a USB drive.
- Plug the USB into your TV.
- Follow the TV’s on-screen steps to upgrade.
Note: Make sure the firmware matches your TV to prevent problems.
Disclaimer
These firmware files are shared as-is. We’re not responsible for damage from wrong use. Be careful and proceed at your own risk.
