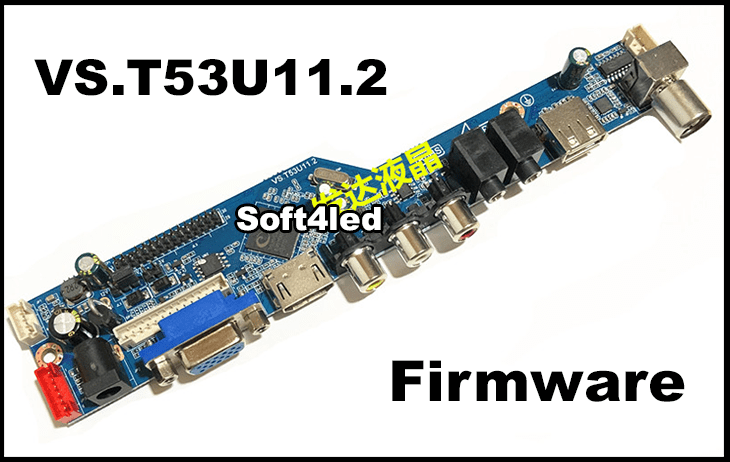

The VS.T53U11.2 is a small, universal driver board for LCD and LED TVs. It works with many TV models because it supports different panels and resolutions. You can adjust its panel voltage with a jumper, making it flexible for repairs or upgrades.
Here are its main features:
- Model: VS.T53U11.2
- Main Chipset: TSUMV53RUU-Z1
- Tuner: R842
- Display Resolution: Up to 1920×1200
- TV Systems: PAL, SECAM, NTSC
- Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
- Audio Power: 2 x 5 Watt (8 ohm)
- Panel Voltage: +3.3V, +5V, or +12V (set by jumper)
- USB Support: Firmware updates and multimedia playback (MP3, AVI, JPG, etc.)
- Remote Control: Yes, with IR control
This board is perfect for anyone fixing a TV or replacing a broken motherboard.
Why Update the Firmware?
Firmware is the software that runs your TV motherboard. Updating it can fix many problems, such as:
- Blank screen or no display
- Wrong resolution
- Fuzzy or distorted picture
- No sound or low volume
- USB not working for videos or music
- Remote control issues
A firmware update can also make your TV work better or support new features.
How to Pick the Right Firmware
To get the correct firmware, you need to know your TV’s resolution and sometimes the panel brand. Here’s how:
- Look at your TV manual or the label on the back for the resolution (like 1366×768 or 1920×1080).
- Check if it mentions a panel brand, such as LG, Samsung, or Sony.
- If you’re not sure about the brand, use the general firmware for your resolution.
For example, if your TV is 1920×1080 with a Samsung panel, pick “VS.T53U11.2-1920×1080-Samsung.”
All Firmware Files for VS.T53U11.2
Here’s a list of firmware files for the VS.T53U11.2 motherboard. Each one matches a specific resolution or panel type. Click the link to download the file you need.
| Firmware File | Resolution | Panel Type |
|---|---|---|
| VS.T53U11.2-1024×768 | 1024×768 | General |
| VS.T53U11.2-1280×1024 | 1280×1024 | General |
| VS.T53U11.2-1280×768 | 1280×768 | General |
| VS.T53U11.2-1366×768-LG | 1366×768 | LG |
| VS.T53U11.2-1366×768-Samsung | 1366×768 | Samsung |
| VS.T53U11.2-1366×768-Sony | 1366×768 | Sony |
| VS.T53U11.2-1366×768 | 1366×768 | General |
| VS.T53U11.2-1440×900 | 1440×900 | General |
| VS.T53U11.2-1600×1200 | 1600×1200 | General |
| VS.T53U11.2-1600×900 | 1600×900 | General |
| VS.T53U11.2-1680×1050 | 1680×1050 | General |
| VS.T53U11.2-1920×1080-LG | 1920×1080 | LG |
| VS.T53U11.2-1920×1080-Samsung | 1920×1080 | Samsung |
| VS.T53U11.2-1920×1080-Sony | 1920×1080 | Sony |
| VS.T53U11.2-1920×1080 | 1920×1080 | General |
| VS.T53U11.2-1920×1200 | 1920×1200 | General |
| VS.T53U11.2-CLAA150XG | Specific | CLAA150XG |
Download Links:
Note: Add your actual download links where it says “insert-link-here.”
How to Install Firmware on VS.T53U11.2
Updating the firmware is simple. Follow these steps:
| Filename | Download |
|---|---|
| VS.T53U11.2-1024×768 | Download |
| VS.T53U11.2-1280×1024 | Download |
| VS.T53U11.2-1280×768 | Download |
| VS.T53U11.2-1366×768-LG | Download |
| VS.T53U11.2-1366×768-Samsung | Download |
| VS.T53U11.2-1366×768-Sony | Download |
| VS.T53U11.2-1366×768 | Download |
| VS.T53U11.2-1440×900 | Download |
| VS.T53U11.2-1600×1200 | Download |
| VS.T53U11.2-1600×900 | Download |
| VS.T53U11.2-1680×1050 | Download |
| VS.T53U11.2-1920×1080-LG | Download |
| VS.T53U11.2-1920×1080-Samsung | Download |
| VS.T53U11.2-1920×1080-Sony | Download |
| VS.T53U11.2-1920×1080 | Download |
| VS.T53U11.2-1920×1200 | Download |
| VS.T53U11.2-CLAA150XG | Download |
- Download the File:
- Pick the firmware that matches your TV from the list above.
- Save it to your computer.
- Set Up the USB:
- Use a USB drive formatted to FAT32.
- Copy the firmware file to the USB’s main folder (not inside any subfolder).
- Update the TV:
- Turn off the TV and unplug it.
- Plug the USB into the motherboard’s USB port.
- Plug in the TV and turn it on.
- Wait until the IR light stops flashing (about 1 minute).
- Turn off the TV, unplug it, and remove the USB.
- Check the Result:
- Turn the TV back on.
- See if the problem is fixed. If not, try another firmware or ask a technician.
Common Problems and Fixes
If something goes wrong after the update, try these tips:
- Screen Shows Wrong Size:
- Check that you used the right firmware for your resolution.
- Test the general firmware if the brand-specific one fails.
- No Picture:
- Make sure the jumper is set to the correct voltage (+3.3V, +5V, or +12V).
- Check the LVDS cable connection.
- No Sound:
- Confirm the speakers are connected properly.
- Test a different firmware file.
- USB Won’t Work:
- Format the USB to FAT32 again.
- Try another USB drive or port.
For more help, use the factory service mode by pressing “Source+308” on the remote. Be careful, as wrong settings can cause issues.
Frequently Asked Questions
- What’s the difference between general and brand-specific firmware?
- General firmware works for most panels at that resolution. Brand-specific firmware is made for panels from companies like LG or Samsung.
- Can I use firmware for a different resolution?
- No. It must match your TV’s resolution, or the display won’t work right.
- How do I find my panel brand?
- Look in the TV manual or on the panel itself. If you can’t tell, start with the general firmware.
- What if the update doesn’t help?
- Try another firmware file. If it still fails, get help from a TV repair expert.
- Is it safe to do this myself?
- Yes, if you follow the steps and use the right file. If you’re unsure, ask a professional.
Final Thoughts
The VS.T53U11.2 universal TV motherboard is a great tool for fixing or upgrading your TV. With the right firmware, you can solve many common issues and get your TV working like new. Make sure to match the firmware to your TV’s resolution and panel type for the best results.
