VS.T56U11.2 Firmware Download (All Resolutions)

Welcome to teckwiki.com! Do you have a TV with the VS.T56U11.2 universal motherboard? You might need to update its firmware to fix problems or improve how it works. In this post, we provide free downloads for all VS.T56U11.2 firmware files. These files support different resolutions and remote control types. Whether your TV is 1920×1080 or 1366×768, you’ll find the right file here. We also include easy steps to upgrade your TV’s firmware safely. Keep reading to get the firmware you need and learn how to install it.

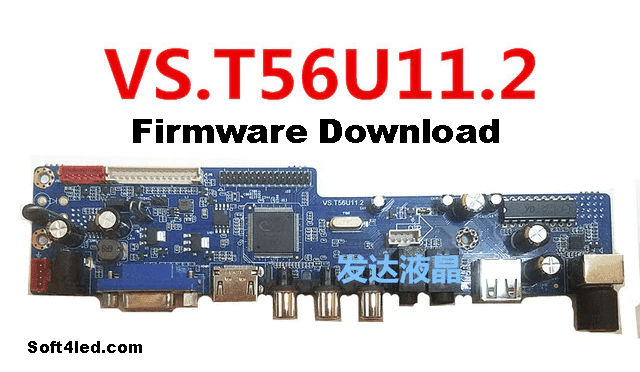

What Is the VS.T56U11.2 Motherboard?

The VS.T56U11.2 is a universal driver board for LCD and LED TV screens. It works with many panel types and supports resolutions up to 1920×1200. This board has ports like HDMI, VGA, AV, USB, and RF TV interface. It also supports firmware upgrades through a USB port, making it a flexible choice for TV repairs or upgrades.

Basic Information

Here are the key details about the VS.T56U11.2 motherboard:

• Model Number: VS-T56U11-2
• Main Chipset: TSUMV56RUU-Z1
• Tuner: R842
• Display Format: Up to 1920×1200

General Specifications

The VS.T56U11.2 comes with these features:

• TV System: PAL, SECAM, NTSC
• Panel Interface: Single-channel or Dual-channel LVDS
• Key Button Functions: CH-, CH+, MENU, VOL-, VOL+, Source, Power
• Multi-Language OSD: Yes
• Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
• Audio Output Power: 2 x 5 Watt (8 ohms)
• Panel Voltage: +3.3V, +5V, +12V DC (set with jumping cap)
• USB Port: Supports firmware upgrades and multimedia playback
• USB File Formats:
  • Audio: MP3, WMA, M4A/AAC
  • Video: AVI, MP4, TS/TRP, MKV/MOV, MPG, DAT, VOB, RM/RMVB
  • Picture: JPG, JPEG, BMP, PNG
  • Text: TXT
• IR Control: Yes (works with remote control)

Electrical Parameters

These are the power details for the VS.T56U11.2:

• Working Input Voltage: DC +12 Volt
• Maximum Current: 2000mA (without panel)
• Standby Power: Less than 0.2W (motherboard only)
• Maximum Current for USB: 500mA

How to Upgrade Firmware

Follow these steps to update your TV’s firmware:

1. Copy the correct firmware file to a USB disk formatted as FAT32.
2. Plug the USB disk into the TV’s mainboard USB port.
3. Turn on the TV and wait until the IR indicator LED stops flashing.
4. When the LED stops flashing, the upgrade is done. Remove the USB disk.

Note: The process takes about 1 minute. Use the right firmware file for your TV’s resolution and remote type to avoid problems.

Factory Service Mode

To enter factory service mode, press 208 on your remote control. For resolution codes, check the documentation or support page.

Firmware Files for VS.T56U11.2

Here are all the firmware files for the VS.T56U11.2 motherboard. They are grouped by remote control type (Samsung, Sony, LG) and resolution. These files work with 4MB flash memory and support M90 general remote control. Pick the file that matches your TV’s resolution and remote.

VS.T56U11.2 Firmware General Remote

Samsung Remote

Sony Remote

LG Remote

Note: After downloading, open the RAR file to see more details and choose the right firmware for your TV panel.

Frequently Asked Questions

How do I know which firmware to download for my TV?

Check your TV’s resolution in the settings or manual. Then, match it with your remote control type (Samsung, Sony, LG). Download the file that fits both.

What if my remote control is not listed?

If your remote isn’t Samsung, Sony, or LG, try a universal remote that works with one of these firmware files. You can also ask the manufacturer for help.

Can I use a firmware file for a different resolution?

No. Using a file for a different resolution can cause display problems or stop your TV from working. Always match the resolution.

What should I do if the firmware upgrade fails?

Make sure you have the right file and the USB is formatted as FAT32. Retry the steps. If it still doesn’t work, get help from a professional.

Is upgrading firmware risky?

Yes, if you use the wrong file or make a mistake, it can harm your TV. Follow the instructions and double-check your file choice.

Disclaimer

The firmware files are provided as-is. Download and use the correct file for your TV to avoid damage. teckwiki.com is not responsible for issues from incorrect use.
