Welcome to teckwiki.com! If you’re a TV technician searching for firmware for the T.MSD309.B66B universal motherboard, you’re in the right place. This post provides free downloads of all firmware files for this popular ATV driver board, used in LCD and LED TVs across Asia Pacific and the Middle East. We’ll also guide you on how to pick and install the right firmware for your TV.

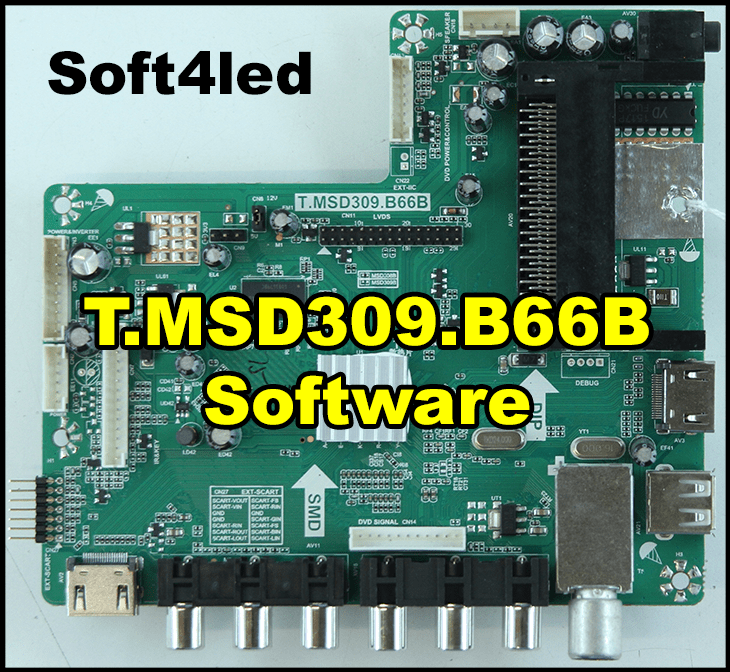

What is the T.MSD309.B66B Motherboard?
The T.MSD309.B66B is a universal motherboard designed for LCD and LED TVs. It’s a simple ATV driver board, meaning it handles analog TV signals. This non-combo board needs a separate power module and LED backlight inverter, but it has a built-in ATV card. It’s widely used in the Asia Pacific and Middle East markets due to its versatility and support for various TV sizes and features.
Key Features and Specifications
Here’s what you need to know about the T.MSD309.B66B:
- Brand: Universal Board
- Model: T.MSD309.B66B
- Main Chip: MSD309
- Product: LED TV
- LED Backlight: Not included (requires external inverter)
- Flash IC: 4MB (assumed based on standard practice; listed as 4Mb, likely a typo)
- Screen Size Supported: 24 to 46 inches
- Resolution: Up to 1920×1080
- Panel Voltage: 12V
- Power Input: 12V
- Tuner: XDTT
- Service Code: Source/Input
- Inputs: HDMI, USB, PC input, Component input, TV, Scart
This board supports modern TV needs with multiple input options and a decent resolution range.
Why You Need the Right Firmware
Firmware is the software that runs the motherboard. It controls how the TV works, from showing the picture to handling inputs. Using the correct firmware ensures your TV runs smoothly. Wrong firmware can cause problems like no picture, bad resolution, or a TV that won’t turn on. That’s why picking the right file is so important.
How to Select the Correct Firmware for Your TV
Not sure which firmware to use? Follow these steps:
- Check Your TV Model: Look at your TV’s brand and model number. For example, a Blaupunkt TV might need a specific file like “T.MSD309.B66B-Blaupunkt-215-224L-W25Q32.”
- Match the Motherboard: Open the TV and confirm it’s a T.MSD309.B66B board.
- Verify Flash Memory: This board uses 4MB flash memory. All files listed here are compatible.
- Compare Resolution: Ensure the firmware supports your screen’s resolution (up to 1920×1080).
If you’re still unsure, ask a fellow technician or check TV repair forums for advice.
Available Firmware Files for Download
Below are the firmware files for the T.MSD309.B66B motherboard. Each one is made for specific TV models or setups. Pick the one that matches your TV.
| Filename | Download |
|---|---|
| T.MSD309.B66B-Blaupunkt-215-224L-W25Q32 | Download |
These files support various resolutions and panels. After downloading, you’ll find details in the file to help you choose the right one.
Step-by-Step Firmware Installation Guide
Installing firmware takes some care. Here’s a basic guide:
- Download the File: Click the link above to get your firmware.
- Prepare a USB: Format a USB drive to FAT32.
- Copy the File: Put the firmware file on the USB drive.
- Plug It In: Insert the USB into the TV’s USB port.
- Access Service Menu: Use the Source/Input code on your remote to enter the service menu.
- Update Firmware: Find the update option, select your file, and follow the TV’s instructions.
Be careful! Wrong steps can harm your TV. If you’re not confident, get help from a pro.
Frequently Asked Questions
Here are answers to common questions:
How do I update my TV’s firmware?
Use the steps above. Make sure you have the right file and a USB drive ready.
What does TV firmware do?
It runs the motherboard, controlling the screen, sound, and inputs.
Can I use any firmware for my TV?
No. You need the firmware that matches your TV model and motherboard.
What if my TV won’t start after updating?
You might have used the wrong file. Try reinstalling the correct firmware.
Conclusion
We hope this post makes it easy to find and install firmware for your T.MSD309.B66B motherboard. Always check your TV model before downloading. Need more help? Leave a comment below or visit teckwiki.com for other technical tips. Share this with other technicians who might need it!
