T.MT8222.1B Firmware Free Download (All Resolutions)

Welcome to teckwiki.com! If you need the T.MT8222.1B firmware download for your universal TV motherboard, you’re in the right place. The T.MT8222.1B is a popular LCD and LED driver board used in many TVs. Keeping its firmware up to date ensures your TV works well. This post gives you the firmware file, key details, and simple steps to update it. Let’s get started!

Basic Information

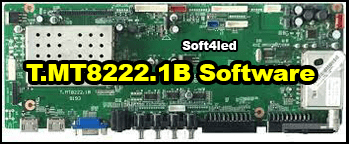

Here are the core details of the T.MT8222.1B motherboard:

• Model No.: T.MT8222.1B 9193
• Main Chipset: MediaTek MT8222
• Tuner: Works with standard tuners for the MT8222 chipset
• Display Format: Supports up to 1080p
• Sound Chip: Built-in audio processing

This board is known for its wide use in TV repairs due to its solid design.

General Specifications

The T.MT8222.1B supports many features. Check them out below:

• TV System: PAL, SECAM, and NTSC
• Panel Interface: Single or dual channel LVDS
• Key Button Functions: CH-, CH+, MENU, VOL-, VOL+, Source, Power
• Multi-Language OSD: Yes
• Input/Output Ports:
  • HDMI
  • VGA
  • AV
  • USB
  • RF TV interface
  • Earphone Out Jack
• Audio Output Power: 2 x 5 Watt (8 ohm)
• Panel Voltage: +3.3V, +5V, +12V DC (set with a jumping cap)
• USB Port: For firmware updates and media playback
  • Audio: MP3, WMA, M4A/AAC
  • Video: AVI, MP4, TS/TRP, MKV/MOV, MPG, DAT, VOB, RM/RMVB
  • Picture: JPG, JPEG, BMP, PNG
  • Text: TXT
• IR Control: Yes, works with a remote

These specs make it a flexible choice for many TV models.

Electrical Parameters

Power details are key for safe use. Here’s what you need to know:

• Working Input Voltage: DC +12 Volt
• Maximum Current: 2000mA (without panel)
• Standby Power: Less than 0.2W (motherboard only)
• Maximum Current for USB: 500mA

Always check your TV’s power supply matches these specs.

How to Upgrade Firmware

Updating the firmware is simple. Follow these steps:

1. Format a USB disk to FAT32.
2. Copy the firmware file to the USB disk.
3. Plug the USB disk into the TV’s mainboard USB port.
4. Turn on the TV.
5. Wait until the IR indicator LED stops flashing (about 1 minute).
6. Remove the USB disk.

Your TV should now have the latest firmware.

Factory Service Mode

Need to access advanced settings? Press the MENU button to enter Factory Service Mode. This is useful for technicians doing detailed repairs.

Download T.MT8222.1B Firmware

We provide the firmware file below:

This file is for the SUPRA STV-LC2615FD-M260J3-L01 RevC1 model. Double-check it matches your TV before updating. Need firmware for a different model? Comment below, and we’ll try to help.

Additional Information

Here are some tips to make your update smooth:

• Check Compatibility: Match the firmware to your TV model and panel.
• Stable Power: Keep power steady during the update.
• USB Setup: Use FAT32 and put the file in the root directory.
• Fix Issues: If the TV doesn’t see the USB, try another disk.

For more on the MediaTek MT8222 chipset, search online for its official specs.

Conclusion

Updating your T.MT8222.1B firmware keeps your TV running well. At teckwiki.com, we’re here to help with free downloads and clear guides. Get the file above and follow the steps. Have questions? Leave a comment. Share this post if it helps you!
