Need TP.MS3393.PB851 firmware download files? You’re in the right place. The TP.MS3393.PB851 is a universal TV motherboard that supports Full HD resolution up to 1920×1080. It’s a combo board, meaning it has the power supply, ATV board, and LED backlight driver all in one. This post gives you all the firmware files for different panel resolutions. Plus, you’ll get instructions to install them and fix common TV problems.
What is TP.MS3393.PB851?

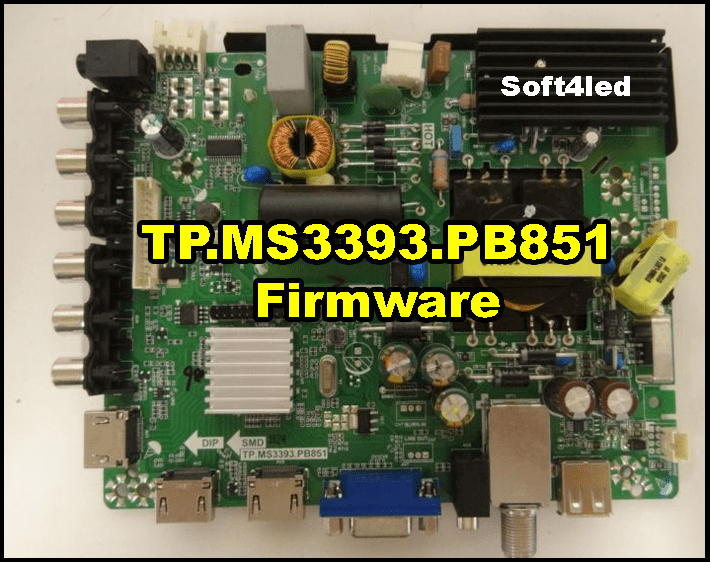

The TP.MS3393.PB851 is a universal LCD/LED board. It’s built to work with many TV models. Because it’s a combo board, it saves space and makes repairs easier. It supports resolutions up to Full HD (1920×1080) and has plenty of input ports for connecting devices.
General Specifications
Here are the key details of the TP.MS3393.PB851:
- Brand: China Universal
- Model: TP-MS3393-PB851
- Main Chip: MSD3393
- TV System: PAL, SECAM, NTSC Playback
- Product: LED TV
- Input Voltage: 220V AC
- Backlight Voltage: 45V
- Max Backlight Wattage: 65-75W
- Backlight Current: 280-320mA
- Resolution: Up to 1920×1080
- Flash Size: 4 MB
- Service Menu Code: Source 2-5-8-0
These specs make it a solid choice for TV repairs or upgrades.
Input Ports
The TP.MS3393.PB851 has many input options:
- Three HDMI ports
- One USB port
- One VGA port
- Composite input ports
- SPDIF output
- Headphone jack
- Cable TV tuner
These ports let you connect various devices to your TV.
Download TP.MS3393.PB851 Firmware Files
We’ve put together a package with firmware files for the TP.MS3393.PB851. It’s a RAR file with multiple options for different panel resolutions. After downloading, you’ll see files for:
- 1024×768
- 1366×768 (including TP.MS3393A.PB851-1366×768-MEXICO)
- 1440×900
- 1600×900
- 1680×1050
- 1920×1080
- 1920×1200
- And more
All files work with 4MB flash memory and the M90 general remote control. Pick the one that matches your TV panel.
| Filename | Download |
|---|---|
| TP.MS3393.PB851-1366×768-MEXICO | Download |
Note: Check your panel’s resolution before choosing a file. More details are in the RAR file.
How to Choose the Right Firmware
To pick the correct firmware:
- Check your TV manual. Look for the resolution in the specs.
- Inspect the panel. The resolution might be printed on it.
- Use the service menu. Enter “Source 2-5-8-0” to find panel details.
Match the resolution to a firmware file. For example, use the 1366×768 file for a 1366×768 panel. If you’re unsure, test carefully—wrong firmware can cause issues.
How to Install Firmware on TP.MS3393.PB851
Updating the firmware is simple. Follow these steps:
- Download the package. Click the link above.
- Extract the RAR file. Open it to see all firmware files.
- Pick your file. Choose the one for your panel’s resolution.
- Format a USB drive. Set it to FAT32 and copy the file to the root.
- Plug in the USB. Connect it to the TV’s USB port.
- Turn on the TV. Wait for it to find the file.
- Follow the prompts. The TV will guide you through the update.
- Restart the TV. Turn it off and on to finish.
Warning: Don’t unplug the TV during the update. It could harm the board.
Accessing the Service Menu
The service menu lets you tweak settings. Here’s how to open it:
- Turn on the TV.
- Press “Source” on your remote.
- Enter “2-5-8-0.” Use the number keys.
- See the menu. It will pop up on the screen.
You can adjust things like picture and sound here. Be careful—wrong changes might affect how the TV works.
Troubleshooting Common Issues
Facing problems after updating? Try these fixes:
- No picture: Check if the firmware matches your resolution. Try another file if needed.
- Weird colors: Go to the service menu and fix the white balance.
- Remote not working: Use an M90 general remote as listed.
- TV won’t start: Double-check power and board connections.
If nothing works, ask a technician for help.
Compatibility with Different Panels
The TP.MS3393.PB851 works with many LCD/LED panels. It supports resolutions up to 1920×1080. The backlight must match too: 45V, 65-75W, and 280-320mA. People have used it with panels from brands like Samsung and LG. Always confirm specs before using it.
Frequently Asked Questions
Here are answers to common questions:
- What makes TP.MS3393.PB851 different? It’s a combo board with built-in power and tuner, unlike separate boards.
- Can I use this firmware on other boards? No, it’s made for TP.MS3393.PB851 only.
- How do I find my panel’s resolution? Check the manual, panel, or service menu.
- What if the firmware fails? Try another file or redo the steps carefully.
Conclusion
The TP.MS3393.PB851 is a handy universal TV motherboard for repairs. With the firmware files in this post, you can update it to fit your panel and bring your TV back to life. Download the package, follow the steps, and use the service menu if needed. Have questions? Leave a comment below!
